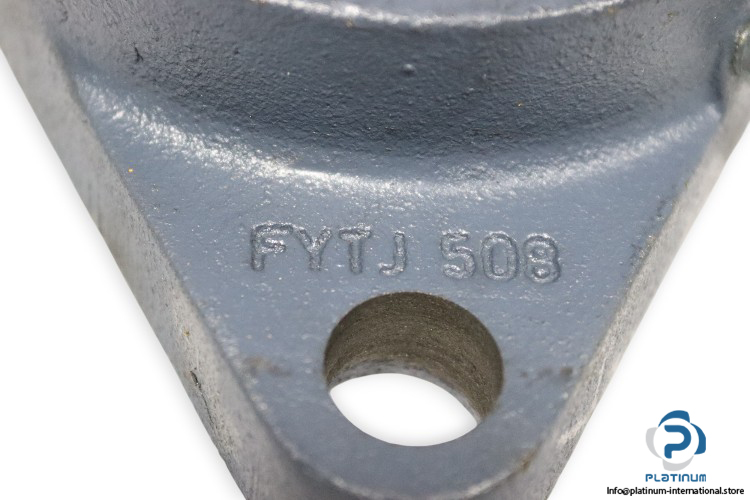

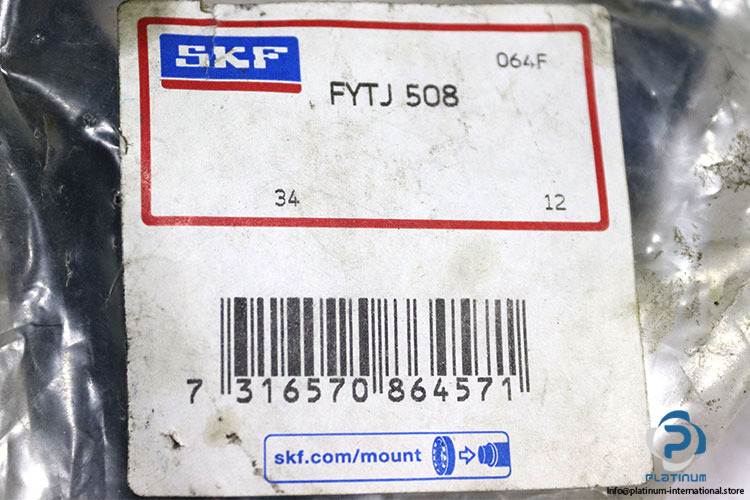

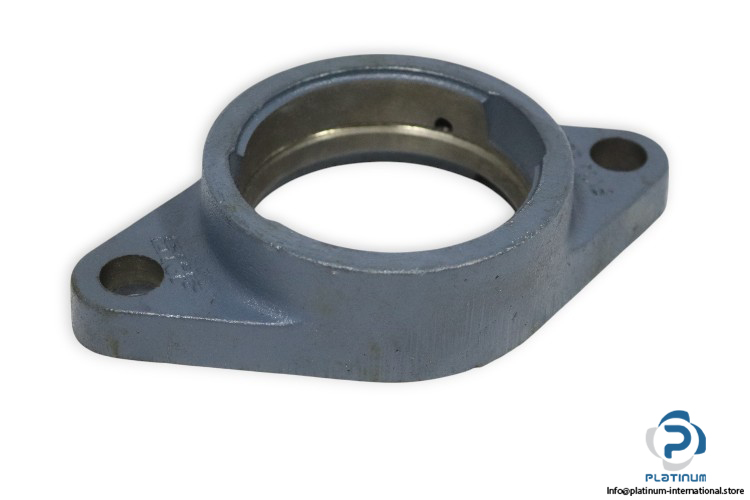

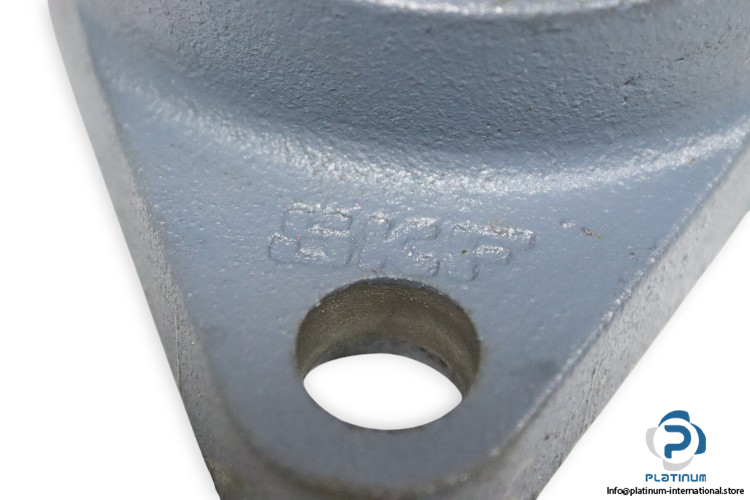

SKF Fytj 508 Oval Flanged Ball Bearing Unit

SKF FYTJ 508 Oval Flanged Ball Bearing Unit

The SKF FYTJ 508 Oval Flanged Ball Bearing Unit is designed for efficient and reliable performance in a wide range of industrial applications. With a durable cast iron housing and a 2-bolt base mounting, this bearing unit ensures easy installation and long-lasting service life. The unit features a shaft diameter of 80 mm and is designed for heavy-duty use in mechanical systems.

🔧 Technical Specifications:

• Manufacturer: SKF
• Type: Oval Flanged Ball Bearing Unit
• Model: FYTJ 508
• Shaft Diameter: 80 mm
• Width of Housing (A): 36 mm
• Flange Width: 16 mm
• Centering Diameter: 88.9 mm
• Distance of Attachment Bolts (J): 144 mm
• Overall Length: 100 mm
• Diameter of Attachment Bolt Hole (N): 16 mm
• Overall Height: 175 mm
• Material (Housing): Cast iron
• Mounting: 2-Bolt Base

This SKF FYTJ 508 bearing unit is built to withstand demanding industrial conditions, providing superior durability and performance. Its cast iron housing and sturdy 2-bolt base mounting ensure a strong, secure installation for a wide range of equipment.
