SKF H 222 Adapter Sleeve
New
In stock1 unitReady to ship
Adapter Sleeve
The SKF H222 Adapter Sleeve features a 100 mm bore diameter, 110 mm small taper diameter, and KM22 locknut for secure and efficient bearing mounting in industrial applications.100AdapterbearingborediameterH222IndustrialKM22LockLocknutM110x2MB22mmMountingshaftSKFsleevetaperedThreadWasher
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

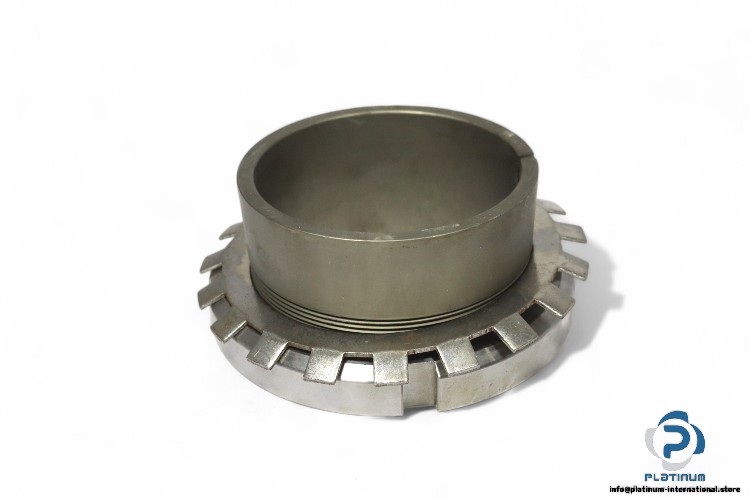

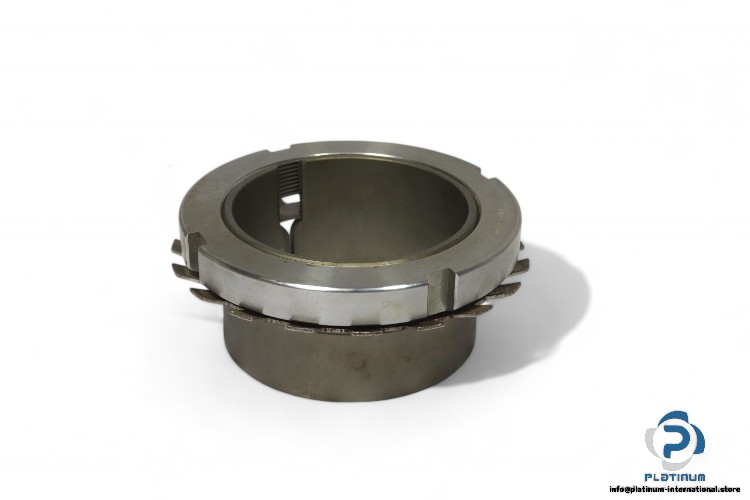

SKF H222 Adapter Sleeve
The SKF H222 Adapter Sleeve is designed for mounting on tapered shafts. It provides a reliable and easy way to mount bearings, pulleys, or other components that require a stable and secure attachment.
Manufacturer: SKF
Type: ADAPTER SLEEVE

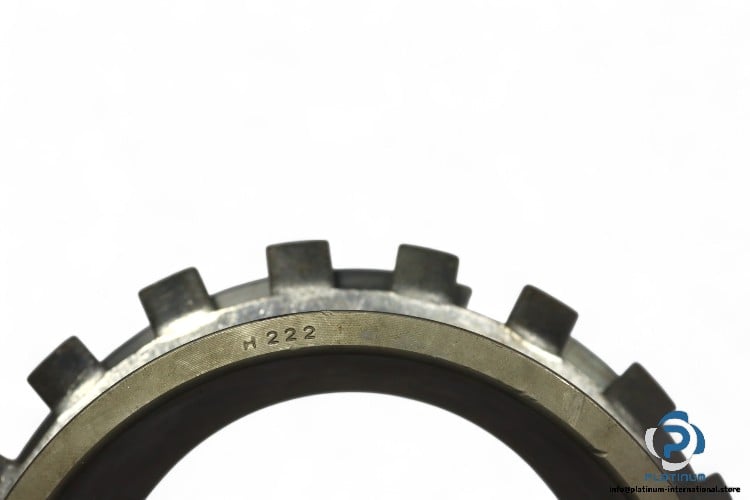

Model: H222
The SKF H222 Adapter Sleeve is ideal for applications requiring secure and efficient mounting of bearings, offering ease of installation and removal. With its high-quality materials and precise design, it ensures long-lasting durability and stability in various industrial systems.

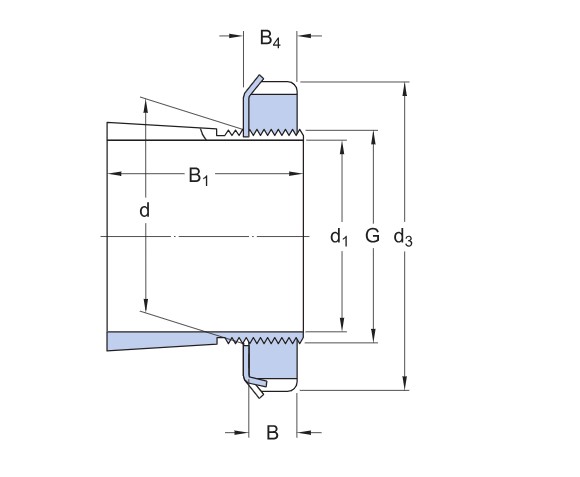

| Bore Diameter (d1) | 100 mm |
| Outside Diameter Small Taper (d) | 110 mm |
| Outer Diameter Lock Nut (d3) | 145 mm |
| Width (B1) | 63 mm |
| Width Lock Nut Including Lock Washer (B4) | 21 mm |
| Thread (G) | M110x2 |
| External Taper | 1:12 |

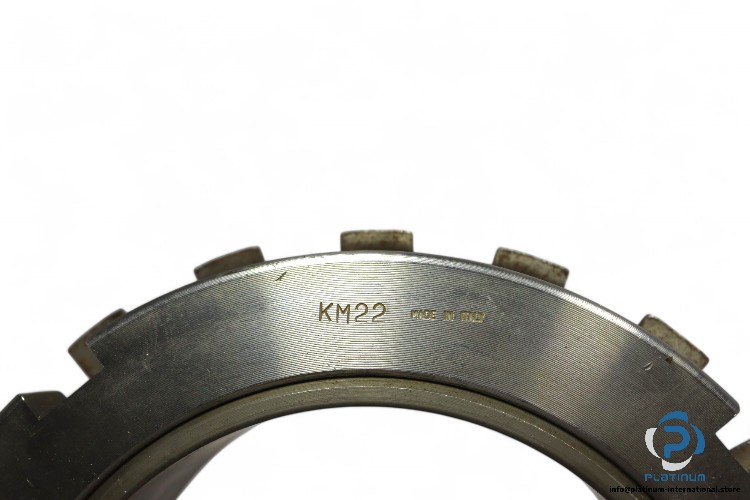

| Locknut | KM22 |
| Lock Washer | MB22 |
