SKF KR 26 B Stud Type Track Roller

Manufacturer: SKF

Type: Cam follower (stud-type track roller) with relubrication feature

Model: KR26 B

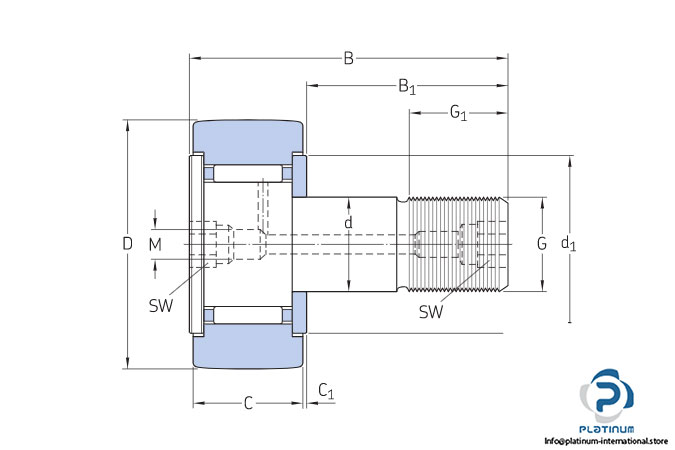

Dimensions

Outside diameter D: 26 mm

Attachment diameter d: 10 mm

Total length B: 36 mm

Width outer ring C: 12 mm

Thread stud G: M10x1

Basic load ratings:

Dynamic C: 4.84 kN

Static C₀: 6 kN

Limiting speed: 5300 rpm

Sealing: Gap-type Seal on both sides
