SKF Llmhc 9 TA-T0 P5 Linear Guideway Carriage

Manufacturer: SKF
Type: Linear Guideway Carriage
Model: LLMHC9TAT0P5

Size: 9 mm
Block Type: Standard carriage
Basic Load Ratings:
Dynamic C: 1850 N
Static C₀: 3130 N
Preload: T0; Light clearance
Precision class: P5; Standard precision

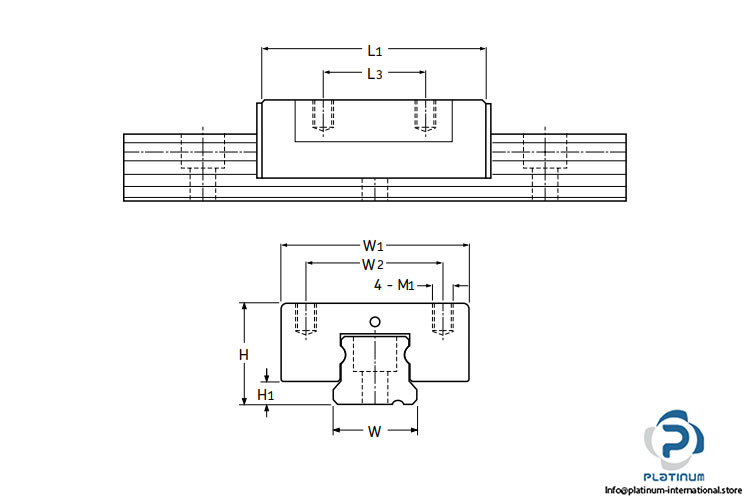

Dimensions:
Height system H: 10 mm
Width carriage W₁: 20 mm
Overall length carriage L₁: 30 mm
W₂: 15 mm
L₃: 10 mm
