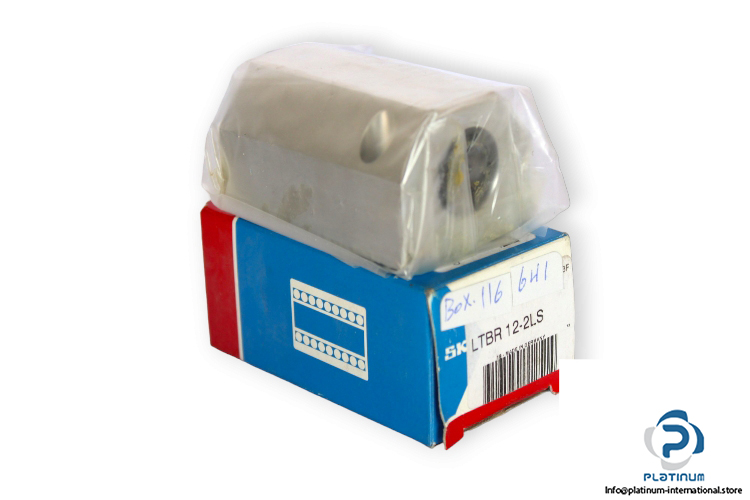

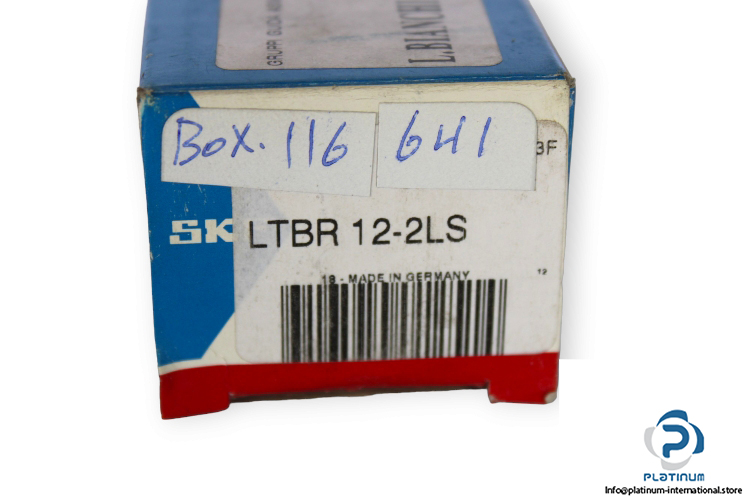

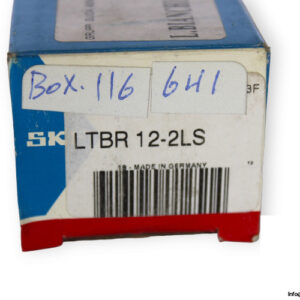

SKF Ltbr 12-2LS Linear Ball Bearing Unit

Manufacturer: SKF
Type: Tandem Linear Bearing Unit with Closed Housing and LBBR Linear Ball Bearings
Model: LTBR12-2LS

Shaft diameter F_w: 12 mm
Design type: Closed
Housing Format: Aluminum
Dynamic load rating: 1140 N
Static load rating: 1020 N

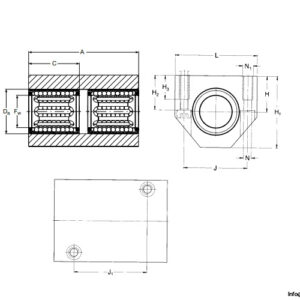

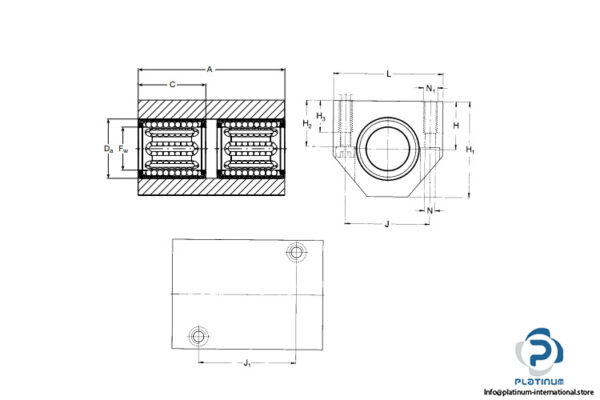

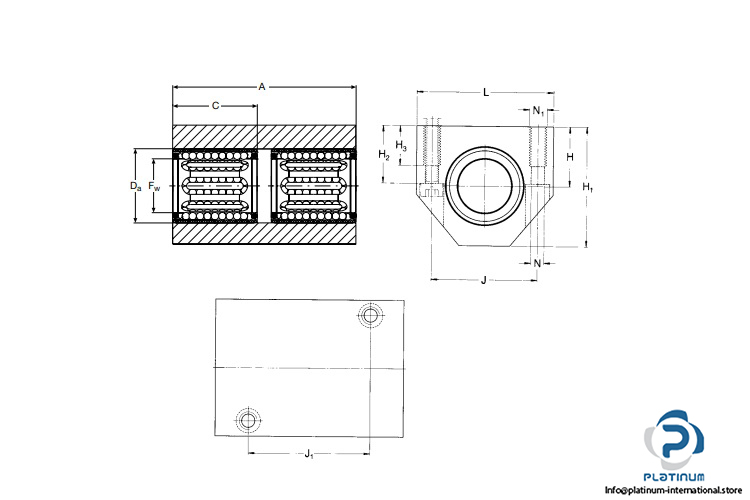

Dimensions:
A: 60 mm
H₁: 33 mm
L: 40 mm
J: 29 mm
J₁: 35 mm
Seals: 2LS, with two seals
