SKF NU322ECJ/C3 Cylindrical Roller Bearing

Manufacturer: SKF

Type: Cylindrical Roller Bearing

Model: NU 322 ECJ/C3

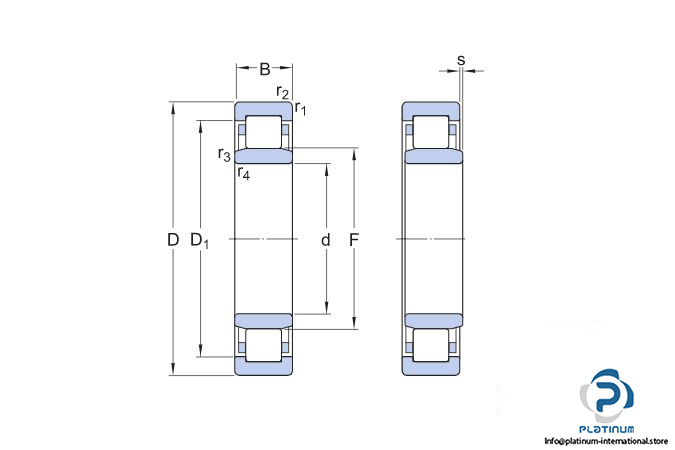

Dimensions:

Bore Diameter d: 110 mm

Outer diameter D: 240 mm

Width B: 50 mm

Minimum chamfer dimension r: 3 mm

Permissible axial displacement s: 3 mm

Basic load ratings:

Dynamic C: 530 kN

Static C₀: 540 kN

Fatigue load rating: 61 kN

Limiting speed: 3400 rpm

Reference speed: 3000 rpm

Cage: Stamped steel cage, rolling element centred

Weight: 10.74 kg
