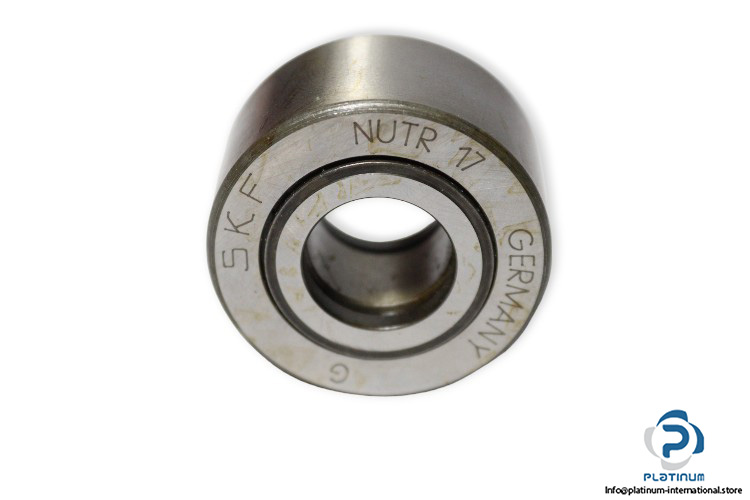

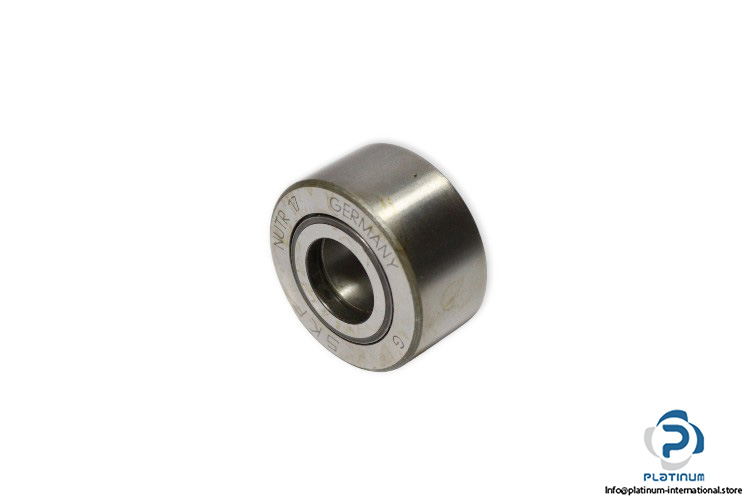

SKF Nutr 17 Yoke-Type Track Roller

Manufacturer: SKF
Type: yoke-type track roller
Model: NUTR17

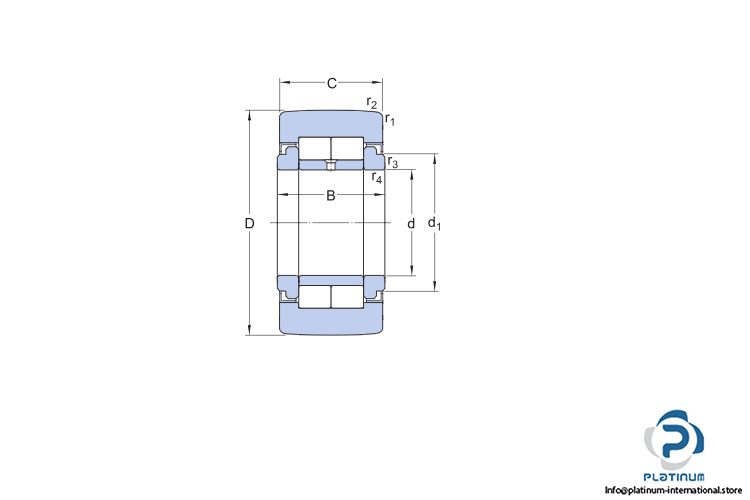

Dimensions:
Bore Diameter d: 17 mm
Outer diameter D: 40 mm
Width outer ring C: 20 mm
Width inner ring B: 21 mm
Basic load ratings:
Dynamic C: 19 kN
Static C₀: 22 kN
Fatigue load limit P_u: 2.5 kN
Maximum dynamic radial loads F_r: 14 kN
Maximum static radial loads F_0r: 20 kN
Limiting speed: 4500 rpm
