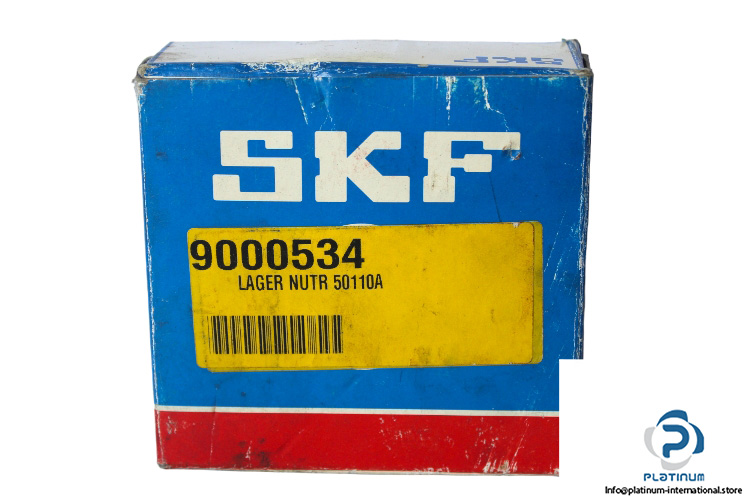

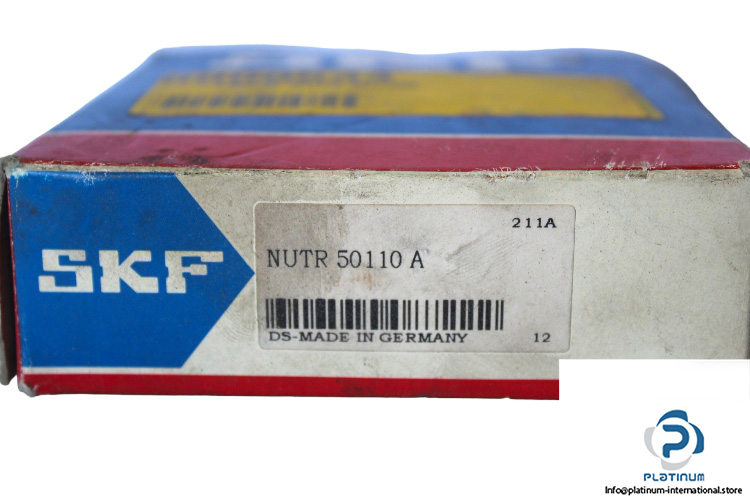

SKF Nutr 50110 A Support Roller

Manufacturer: SKF

Type: Support Rollers

Model: NUTR50110 A

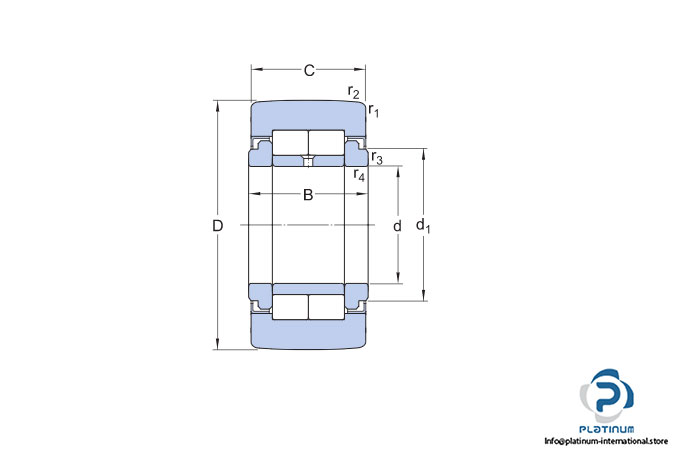

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 110 mm

Width outer ring C: 30 mm

Width inner ring B: 32 mm

Basic load ratings:

Dynamic C: 78.1 kN

Static C₀: 116 kN

Fatigue load limit P_u: 14.3 kN

Maximum dynamic radial loads F_r: 98 kN

Maximum static radial loads F_0R: 140 kN

Limiting speed: 1600 rpm
