SKF QJ 308 MA Angular Contact Ball Bearing
New
In stock3 unitsReady to ship
FOUR-POINT CONTACT BALL BEARING
SKF QJ 308 MA bearing with 40 mm bore, 90 mm outer diameter, and 14,000 r/min speed limit. Features a machined brass cage and high dynamic load capacity for precise axial and radial performance.3084090AxialBallbearingborebrassCageContactfour-pointHighIndustrialmAMachinedmmOuterQJQJ308MAradialSKFSpeed
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

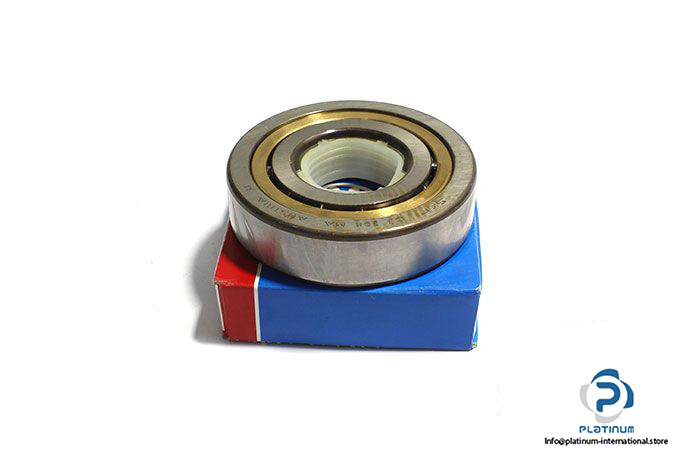

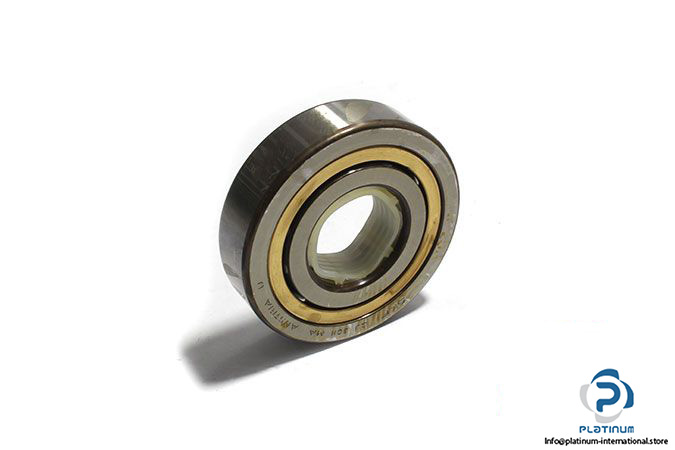

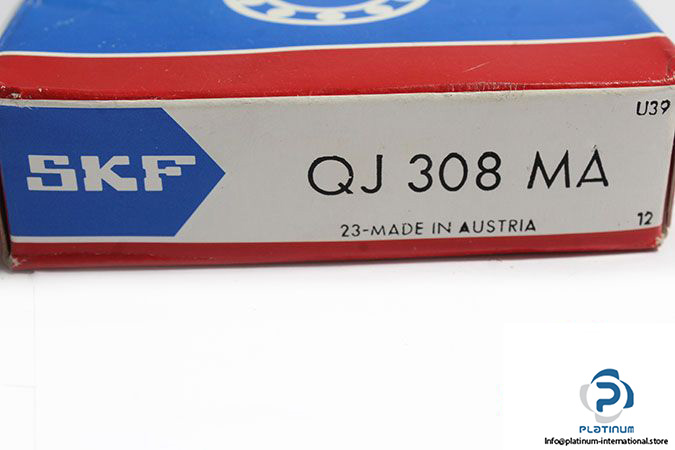

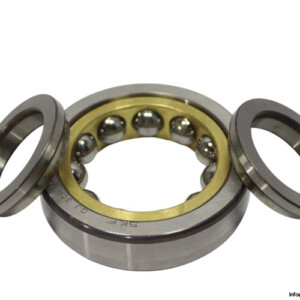

SKF QJ 308 MA FOUR-POINT CONTACT BALL BEARING
The SKF QJ 308 MA is a precision-engineered four-point contact ball bearing designed for high radial and axial load capacity. It features a machined brass cage, high limiting speed, and compact dimensions, making it suitable for demanding industrial and rotational applications where rigidity and speed are critical.
Manufacturer: SKF
Type: Four-Point Contact Ball Bearing
Model: QJ 308 MA

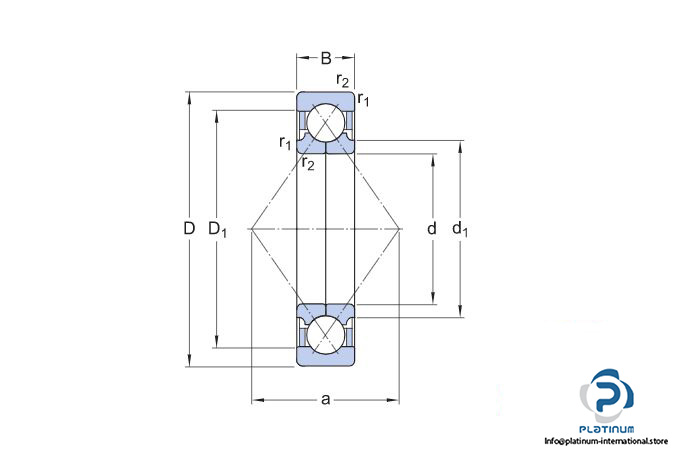

| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 90 mm |
| Width (B) | 23 mm |
| Dynamic Load Rating (C) | 78 kN |
| Static Load Rating (C0) | 64 kN |
| Fatigue Load Limit (Pu) | 2.7 kN |
| Limiting Speed | 14,000 r/min |
| Cage | MA “ Machined Brass Cage, Outer Ring Centred |
