ROD END
SKF SC 25 ES Rod End with 25 mm bore, steel/steel sliding contact, and weldable cylindrical shank. Designed for heavy-duty industrial linkages with 48 kN dynamic and 73.5 kN static load ratings.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

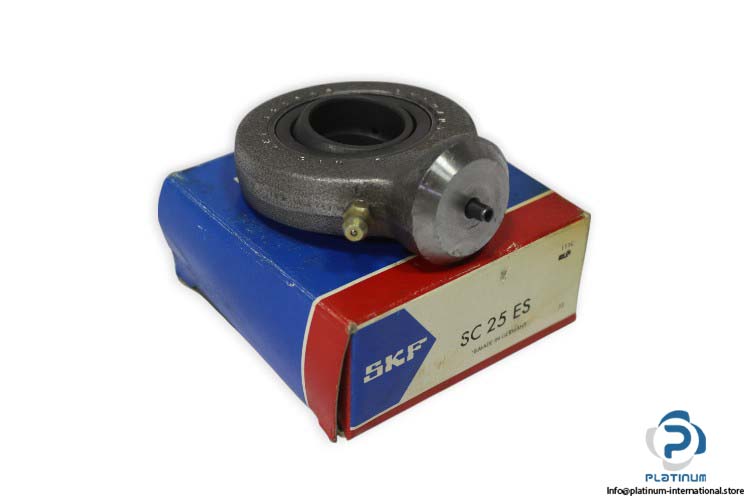

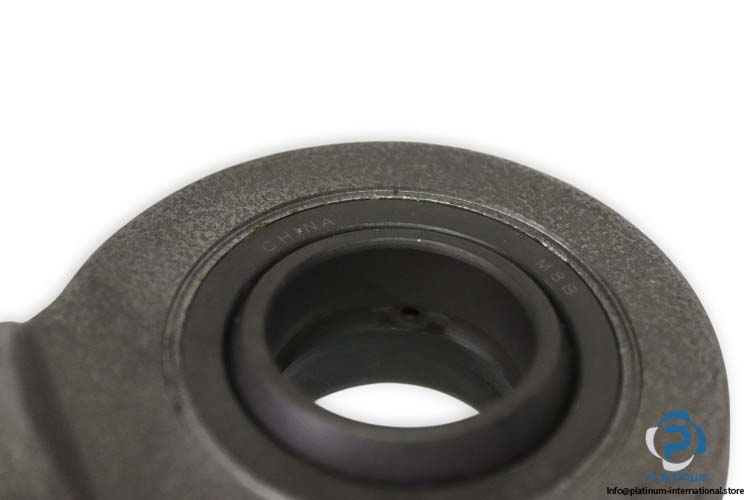

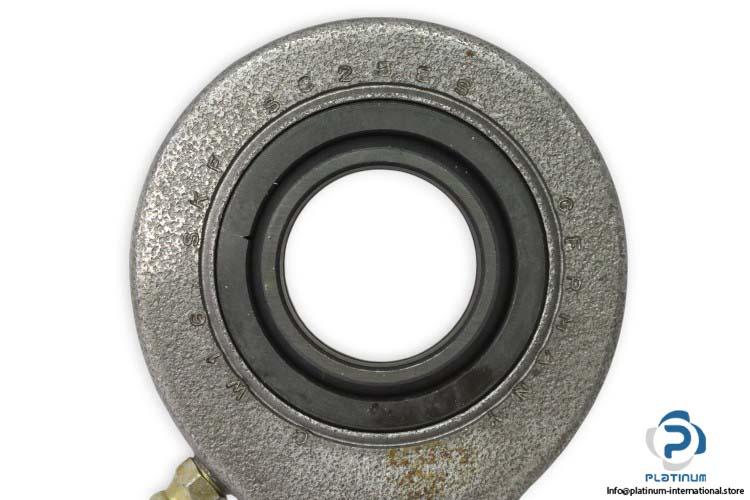

SKF SC 25 ES ROD END
The SKF SC 25 ES Rod End is a durable and high-strength mechanical joint designed for industrial applications requiring precise motion transfer and reliable performance. Featuring a steel/steel sliding contact combination and a weldable cylindrical shank, it is ideal for heavy-duty linkages and machinery.
Manufacturer: SKF
Type: Rod End
Model: SC 25 ES
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 65 mm |
| Width (B) | 20 mm |
| Width, Housing Eye | 18 mm |
| Centre Height, Housing | 45 mm |
| Housing Length, Total | 78 mm |
| Sliding Contact Surface Combination | Steel/steel, standard |
| Attachment Feature, Rod End Shank | Cylindrical section, with locating pin, for welding |
| Basic Dynamic Load Rating | 48 kN |
| Basic Static Load Rating | 73.5 kN |
