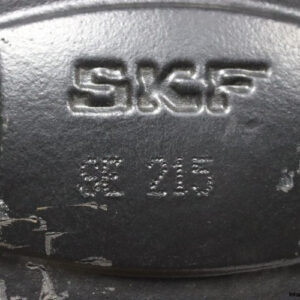

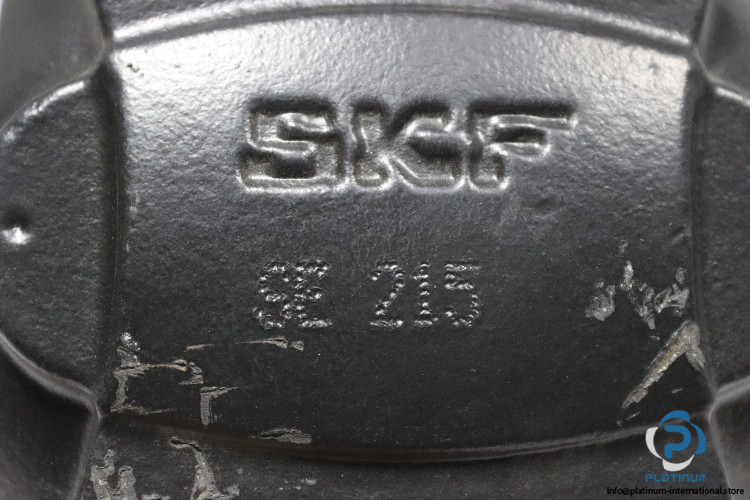

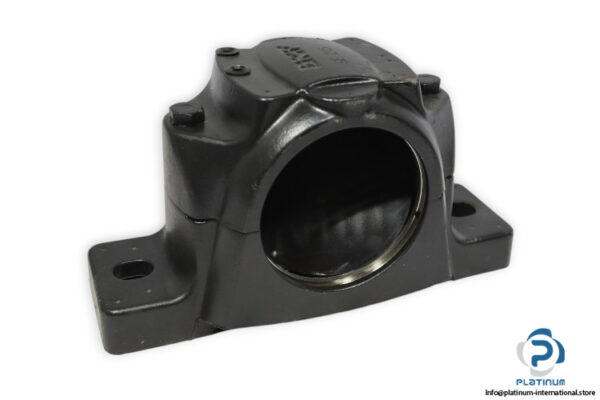

SKF SE 215 Plummer Block Housing
SKF Plummer Block Housing SE215 €“ High-quality cast iron housing with 102.5 mm bore diameter, providing durable and stable bearing support in demanding industrial applications with a 135 kN axial breaking load capacity.
SKF Plummer Block Housing SE215
Manufacturer: SKF
Type: Plummer Block Housing
Model: SE215
The SKF Plummer Block Housing SE215 is a robust and reliable solution designed for supporting bearings in various industrial applications. Constructed from high-quality cast iron, this housing offers durability and resistance to wear, ensuring long-lasting performance. With precise design and quality construction, it ensures secure bearing placement and alignment. It is ideal for heavy-duty applications requiring high axial breaking load capacity and stable operation.
Technical Specifications:
- Bore Diameter: 102.5 mm
- Diameter of Bearing Seat: 130 mm
- Width of Bearing Seat: 56 mm
- Centre Height (Pillow Block): 80 mm
- Centre Distance Between Bolt Holes: 230 mm
- Attachment Bolt Diameter: 16 mm
- Overall Width: 115 mm
- Overall Height: 155 mm
- Overall Length: 280 mm
- Inside Width Between Seal Grooves: 87 mm
- Size of Cap Bolts: M12x65
- Tightening Torque for Cap Bolts: 80 N·m
- Housing Material: Cast Iron
- Breaking Load (Axial): 135 kN
This plummer block housing is ideal for use in demanding applications that require stable and durable bearing support, ensuring smooth operations and longevity in a variety of industrial environments.
