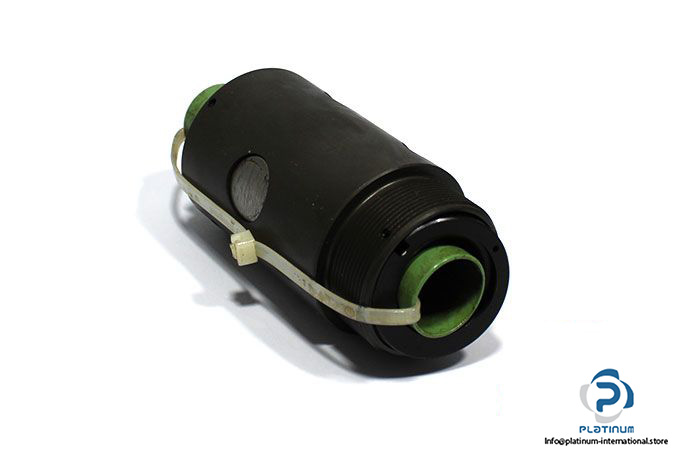

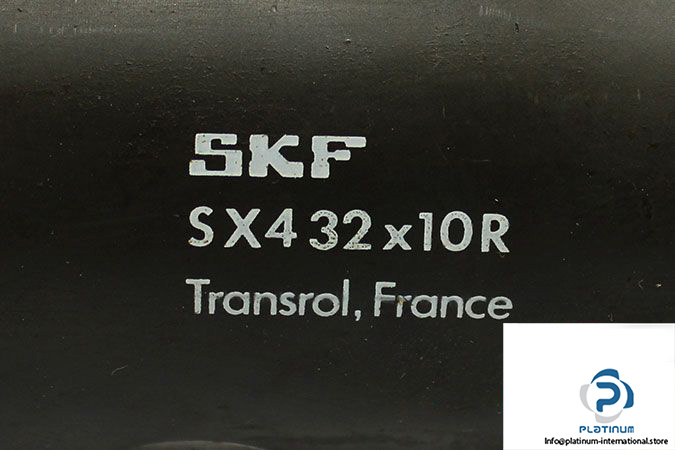

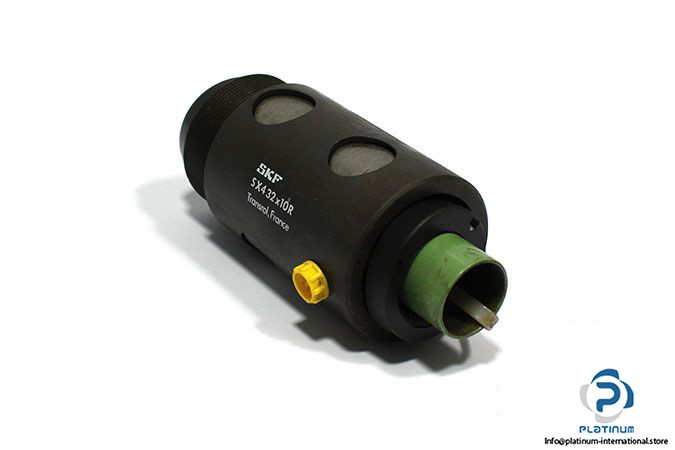

SKF SX4 32X10R Ball Screw Single NUT With Threaded END

Manufacturer: SKF

Type: Rolled thread ball screw internal recirculation nut with threaded end

Model: SX 32 x 10 R

Size: 32 x 10 R x 4

Nominal Diameter d₀: 32 mm

Number of Circuits of Ball: 4

Lead P_h: 10 mm

Direction of Lead: Right-Hand Thread

Dynamic Rating Load C_a: 28.9 kN

Static Rating Load C_oa: 55.7 kN

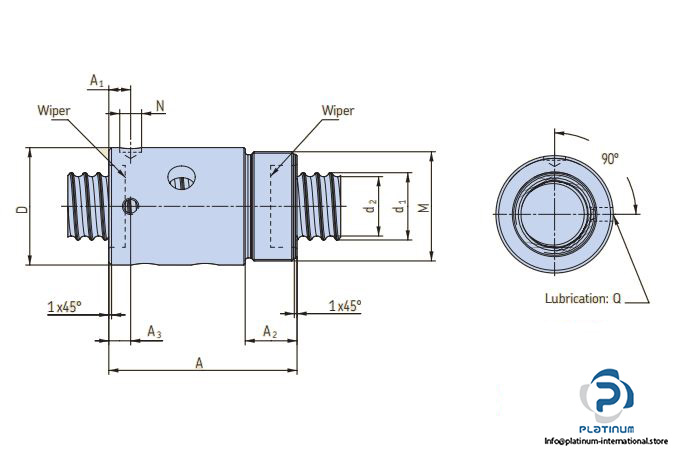

Dimensions:

A: 95 mm

D: 54 mm

Weight: 0.9 kg
