SKF SY 2 1/4 TF Pillow Block Ball Bearing Unit
New
In stock10 unitsReady to ship

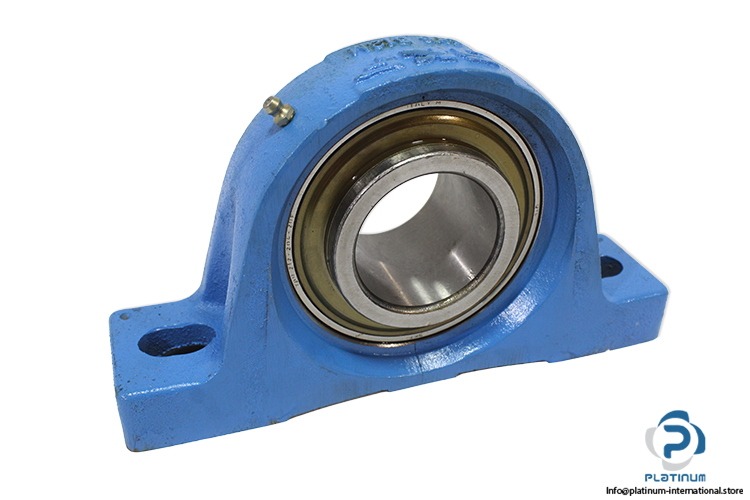

Pillow Block Bearing Unit SKF SY 2.1/4 TF is a high-performance pillow block ball bearing unit with a 57.15 mm shaft diameter, cast iron housing, and load capacity up to 52.7 kN, ensuring reliable operation in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Bearing No. | YAR 213-208-2F |
| Housing No. | SY 513 M |
| Attachment bolt diameter | 15.875 mm |
| Shaft diameter | 57.15 mm |
| Centre height (pillow block) | 69.9 mm |
| Housing overall width | 60 mm |
| Centre distance between bolt holes | 190.5 mm |
| Bearing width, total | 65.1 mm |
| Basic dynamic load rating | 52.7 kN |
| Basic static load rating | 36 kN |
| Fatigue load limit | 1.53 kN |
| Limiting speed | 3400 r/min |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097088 |
| Weight | 4,96 |
