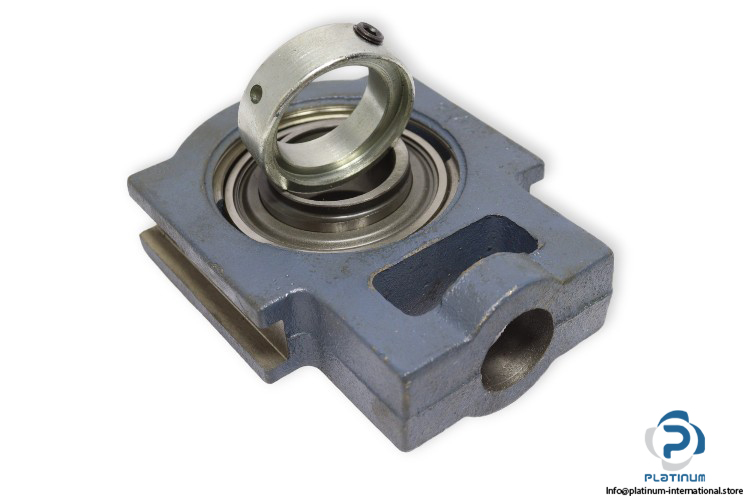

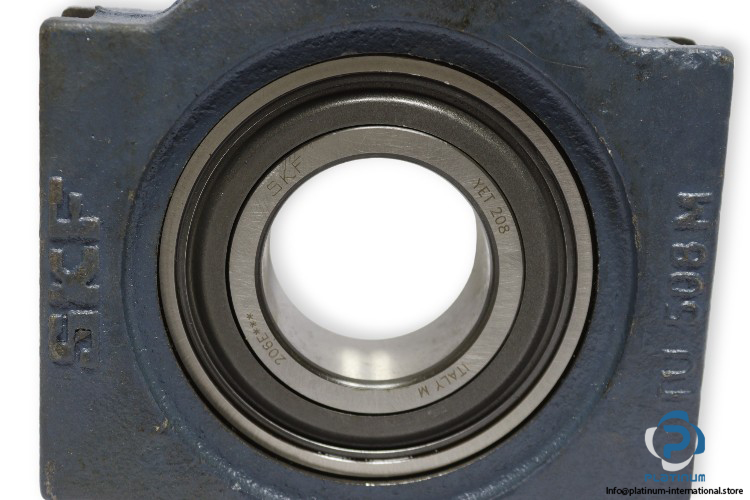

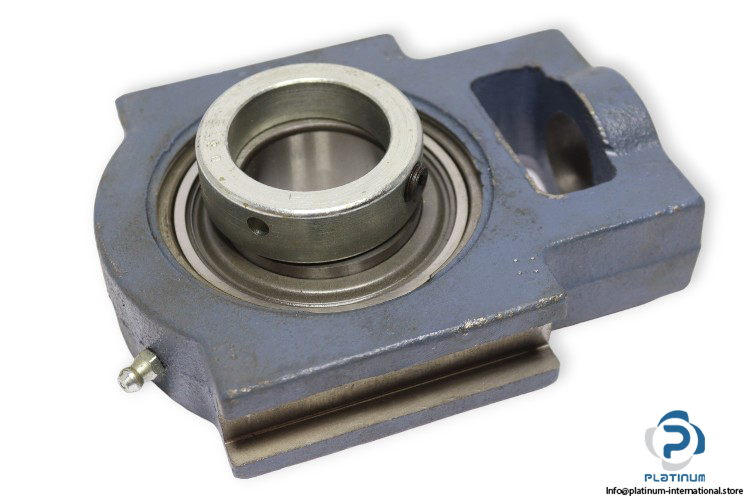

SKF TU 40 FM Take UP Ball Bearing Unit

Name: SKF TU 40 FM TAKE UP BALL BEARING UNIT
SKU: 1030951
Availability: LimitedAvailability

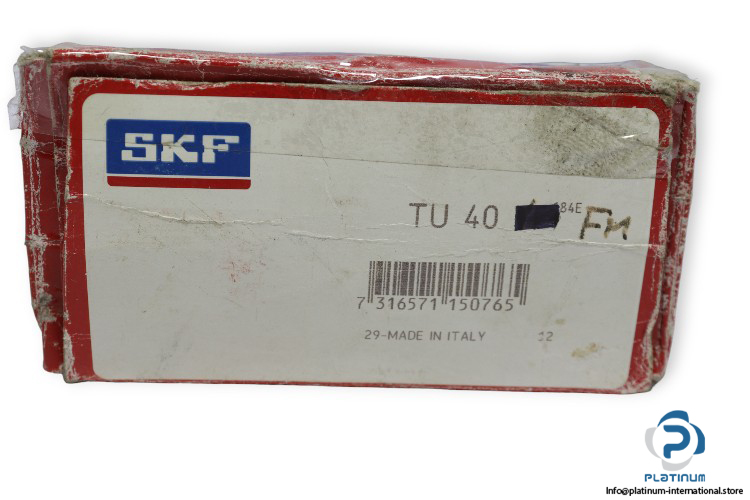

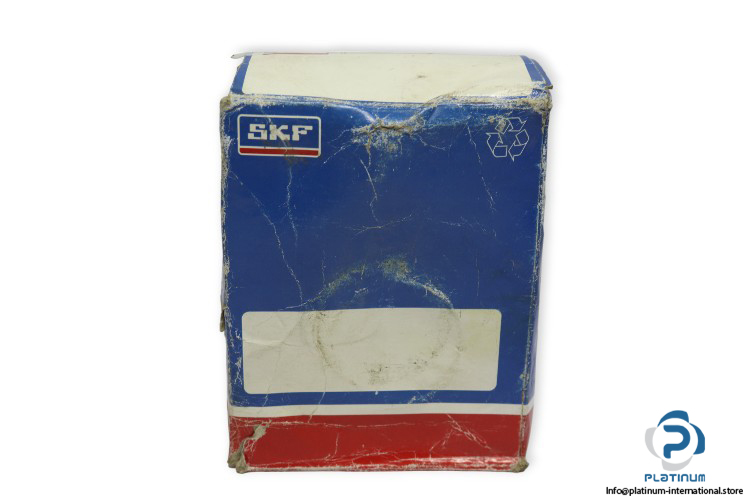

skf-TU-40-FM-take-up-ball-bearing-unit-(new)-(carton)

skf-TU-40-FM-take-up-ball-bearing-unit-(new)-(carton)-1

skf-TU-40-FM-take-up-ball-bearing-unit-(new)-(carton)-2

skf-TU-40-FM-take-up-ball-bearing-unit-(new)-(carton)-3

skf-TU-40-FM-take-up-ball-bearing-unit-(new)-(carton)-4

skf-TU-40-FM-take-up-ball-bearing-unit-(new)-(carton)-5

New

In stock1 unitReady to ship

Manufacturer:

SKF

Type:

Take-up cast iron unit with insert ball bearing, eccentric locking collar and narrow inner ring, ISO

Model:

TU 40 FM

Housing No.:

TU508M

Bearing No.:

YET 208

SKU

1030951

Category

Plummer Block Housing Units

Condition

New

40 bearing Block flanged mm Pillow SKF Take TU Unit up

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: SKF
Type: Take-up cast iron unit with insert ball bearing, eccentric locking collar and narrow inner ring, ISO
Model: TU 40 FM
Housing No.: TU508M
Bearing No.: YET 208

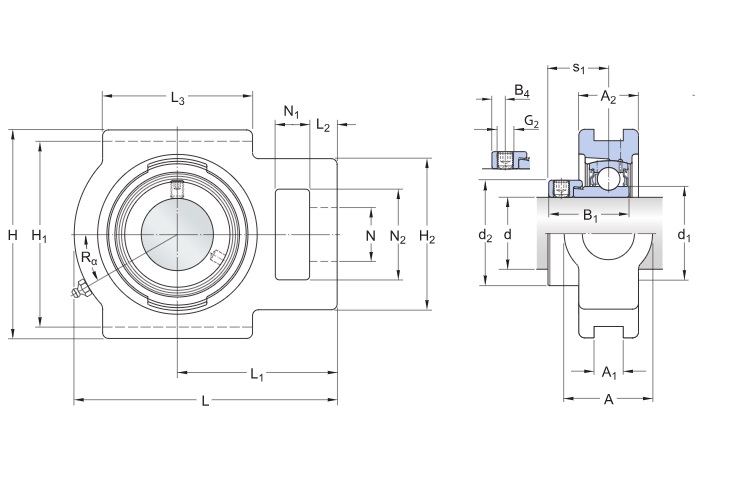

Bore diameter d: 40 mm
Overall width A: 49 mm
Width of piloting groove A1: 17.5 mm
Overall height H: 115 mm
Height of attachment end H2: 83 mm
Overall length L: 145 mm
Diameter of attachment bolt hole N: 29 mm
Basic dynamic load rating C: 30.7 kN
Basic static load rating C0: 19 kN
Fatigue load limit Pu: 0.8 kN
Limiting speed: 4800 r/min
Housing type: Take-up
locking Device: eccentric locking collar
Material, housing: Cast iron
Sealing, bearing: Seal on both sides
