SKF TU511 M Take UP Ball Bearing Unit
New
In stock12 unitsReady to ship
The SKF TU511M take-up cast iron housing with ECY 211 end cover is engineered for industrial performance. It features a 100 mm spherical seating diameter, 43.6 kN dynamic load rating, and a limiting speed of 4000 r/min.
100211400043.6bearingsCastCoverdiameterDynamicECYEndHousingIndustrialIronkNLimitingLoadmmr/minRatingSeatingSKFSpeedSphericalTake-upTU511M
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

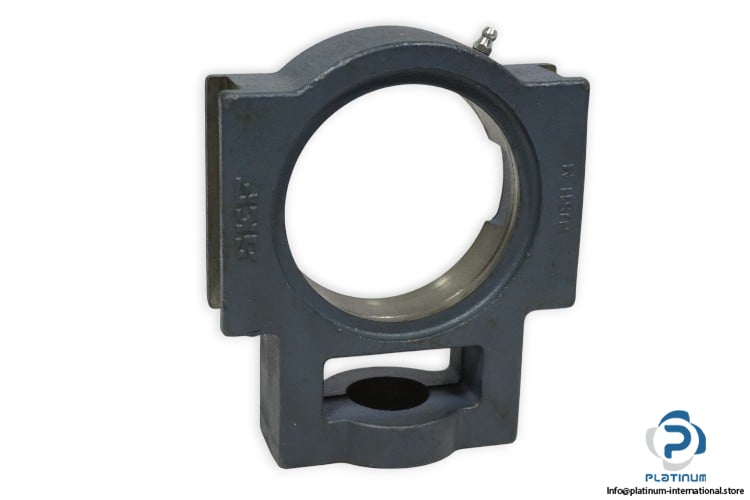

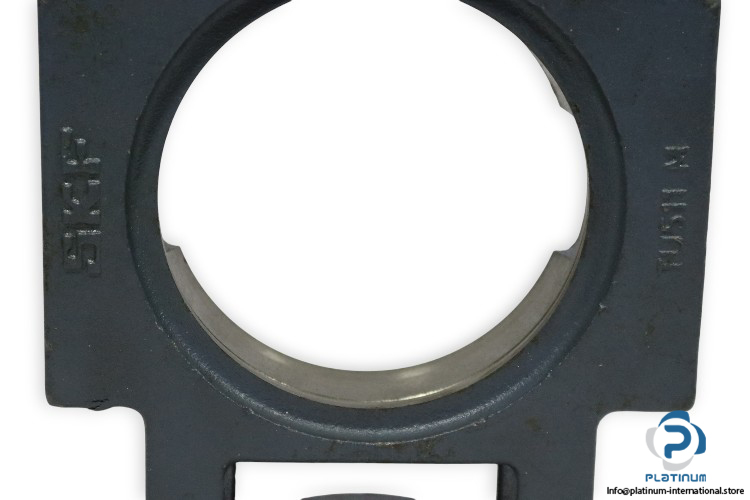

SKF Take-Up Cast Iron Housing for Insert Bearing – TU511M
The SKF TU511M is a high-quality take-up cast iron housing designed for demanding industrial applications. Equipped with an ECY 211 end cover, it ensures reliable performance with insert bearings. Below are the detailed specifications:
- Manufacturer: SKF
- Type: Take-up cast iron housing for insert bearing
- Model: TU511M
- End cover: ECY 211
- Spherical seating diameter: 100 mm

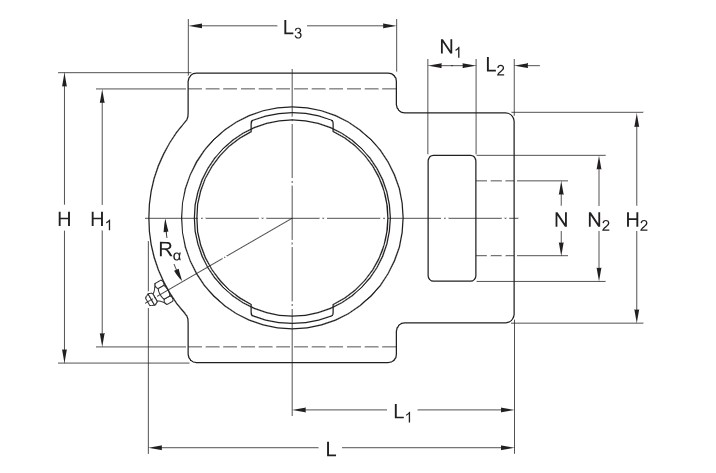

- Housing overall width: 64 mm
- Width of location slot A1: 27 mm
- Width of flange in which location slot is provided: 41 mm
- Overall height H: 146 mm
- Height of attachment end H2: 102 mm
- Overall length L: 171 mm
- Diameter of attachment bolt hole N: 35 mm
- Basic dynamic load rating C: 43.6 kN
- Basic static load rating C0: 29 kN
- Fatigue load limit Pu: 1.25 kN
- Limiting speed: 4000 r/min
- Housing type: Take-up
- Material, housing: Cast iron
- Thread of the grease fitting: GN 1/4-28 SAE-LT
