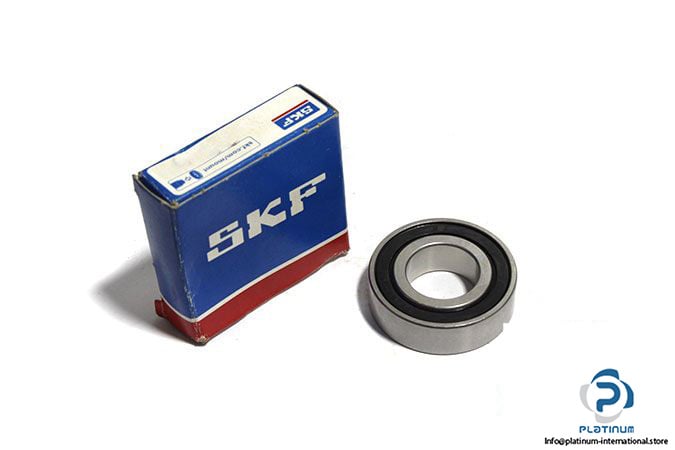

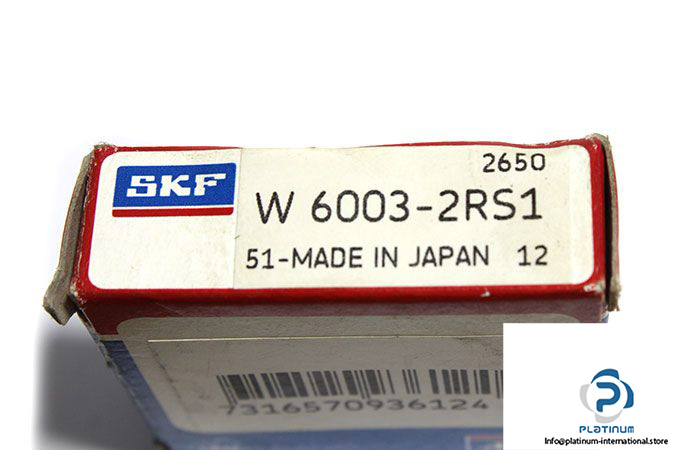

SKF W 6003-2RS1 Deep Groove Ball Bearing

Manufacturer: SKF

Type: Deep Groove Ball Bearing

Model: W 6003 2RS1

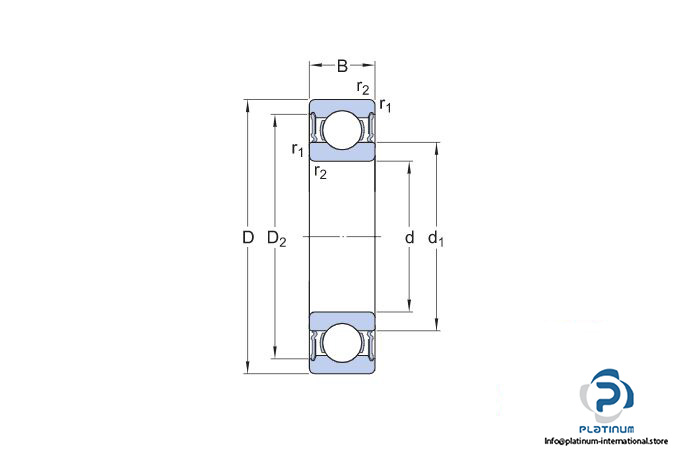

Dimensions

Bore diameter d: 17 mm

Outer diameter D: 35 mm

Width B: 10 mm

Material: SS-Stainless Steel

Minimum chamfer dimension r_1,2: 0.3 mm

Basic load ratings:

Dynamic C: 4.94 kN

Static C₀: 3.15 kN

Fatigue load rating P_U: 0.137 kN

Limiting speed: 13000 rpm

Seal: Contact seal, NBR, on both sides

Weight: 0.04 kg
