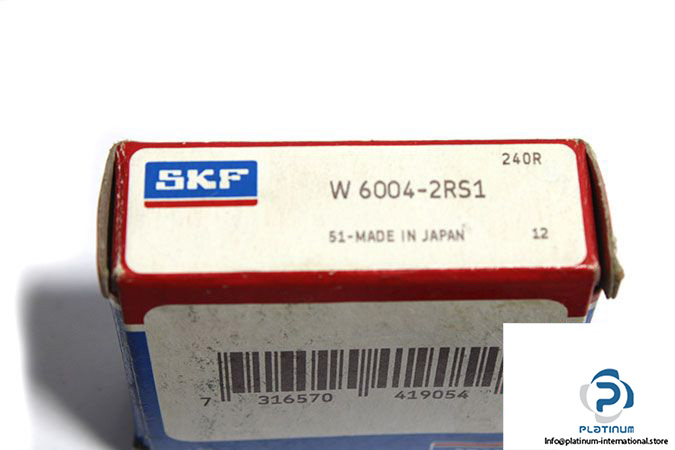

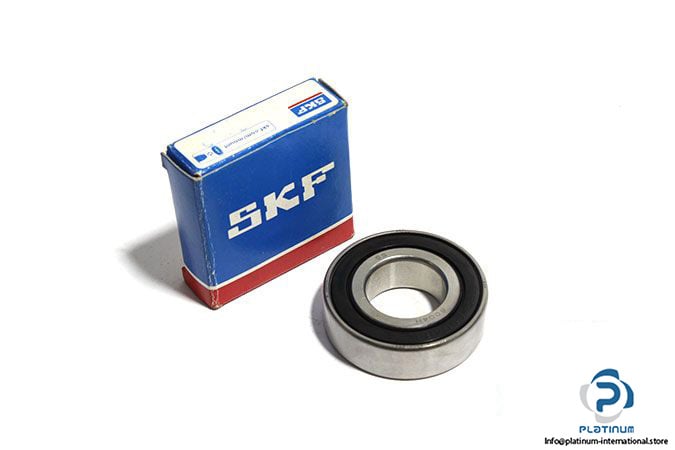

SKF W 6004-2RS1 Deep Groove Ball Bearing

Manufacturer: SKF

Type: Deep Groove Ball Bearing

Model: W 6004 2RS1

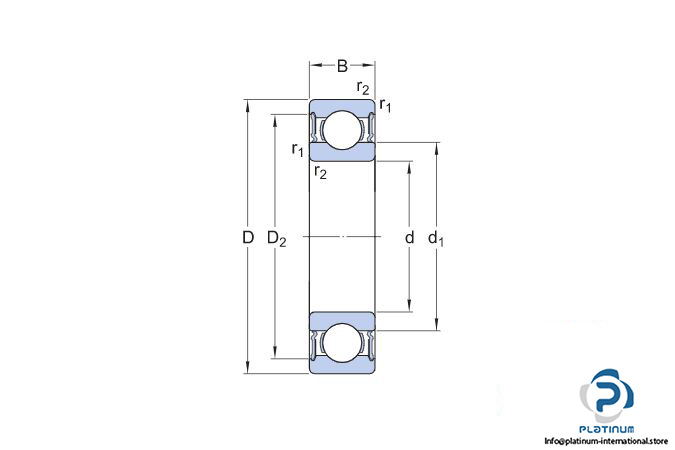

Dimensions

Bore diameter d: 20 mm

Outer diameter D: 42 mm

Width B: 12 mm

Material: SS-Stainless Steel

Minimum chamfer dimension r_1,2: 0.6 mm

Basic load ratings:

Dynamic C: 8.06 kN

Static C₀: 5 kN

Fatigue load rating P_U: 0.212 kN

Limiting speed: 11000 rpm

Seal: Contact seal, NBR, on both sides
