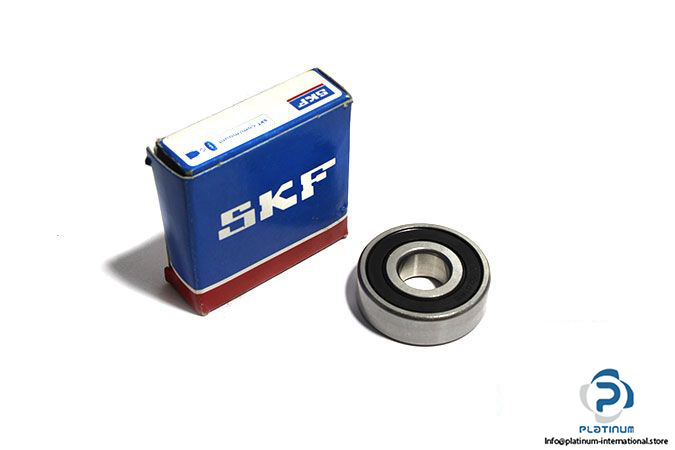

SKF W 6201-2RS1 Deep Groove Ball Bearing

Manufacturer: SKF

Type: Deep Groove Ball Bearing

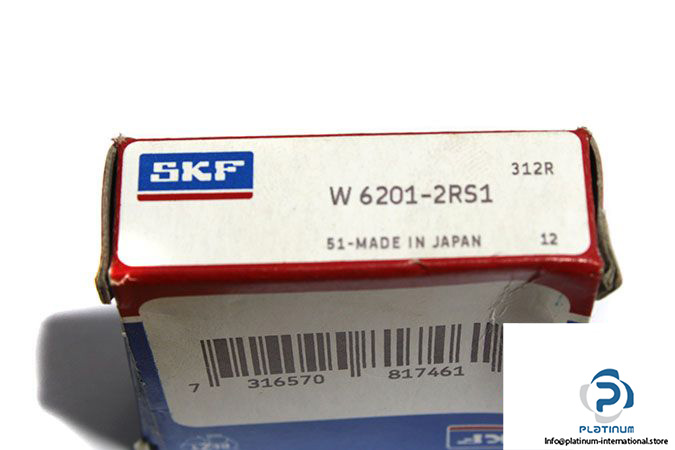

Model: W 6201 2RS1

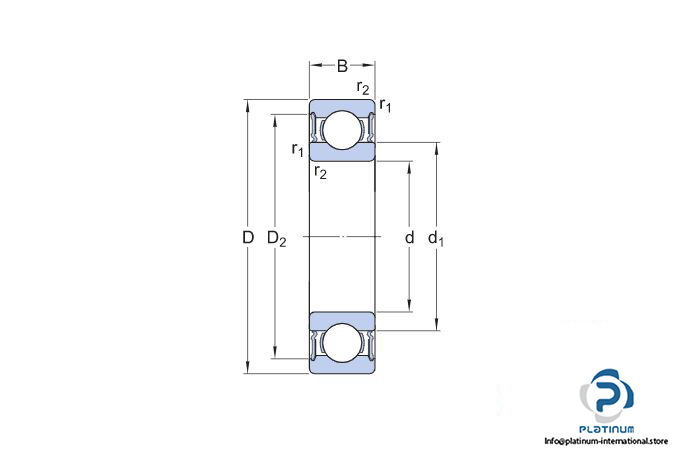

Dimensions

Bore diameter d: 12 mm

Outer diameter D: 32 mm

Width B: 10 mm

Material: SS-Stainless Steel

Minimum chamfer dimension r_1,2: 0.6 mm

Basic load ratings:

Dynamic C: 5.72 kN

Static C₀: 3 kN

Fatigue load rating P_U: 0.127 kN

Limiting speed: 15000 rpm

Seal: Contact seal, NBR, on both sides
