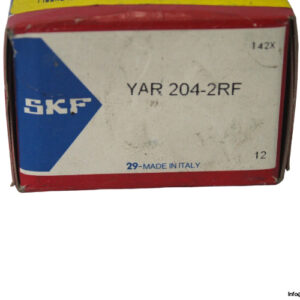

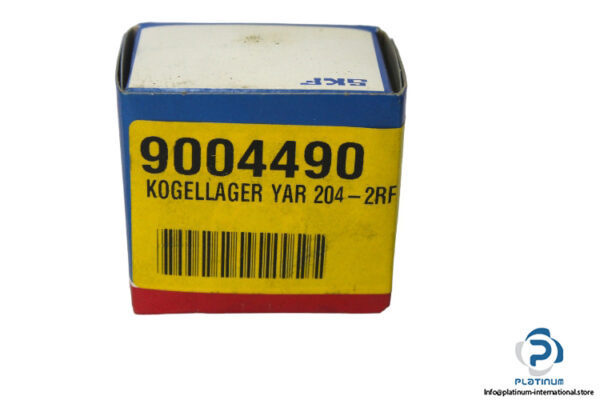

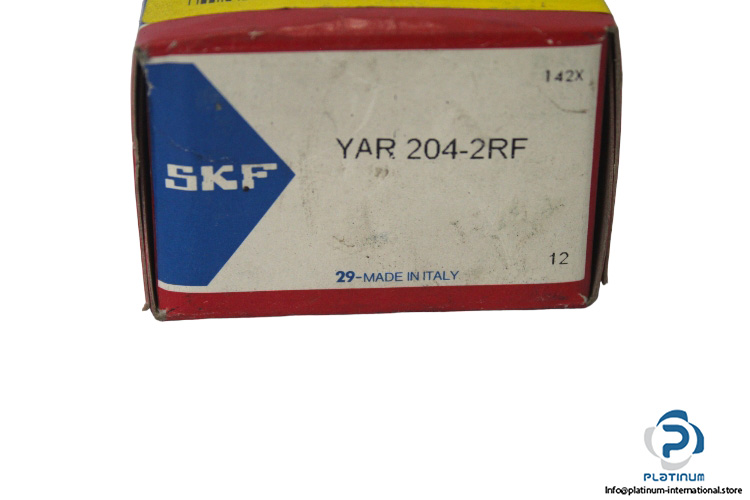

SKF YAR 204-2RF Insert Ball Bearing

Manufacturer: SKF

Type: Insert bearing with set screw locking and extended inner ring

Model: YAR204-2RF

Bore Diameter d: 20 mm

Outer diameter D: 47 mm

Width of inner ring B: 31 mm

Width of outer ring C: 14 mm

Basic load ratings:

Dynamic C: 12700 N

Static C₀: 6550 N

Fatigue load rating: 280 N

Limiting speed: 5000 rpm

Inner ring extension: on both sides

Outer ring type: Spherical

Retaining feature, inner ring: Set screws

Sealing: Seal and flinger on both sides

Bore type: Cylindrical
