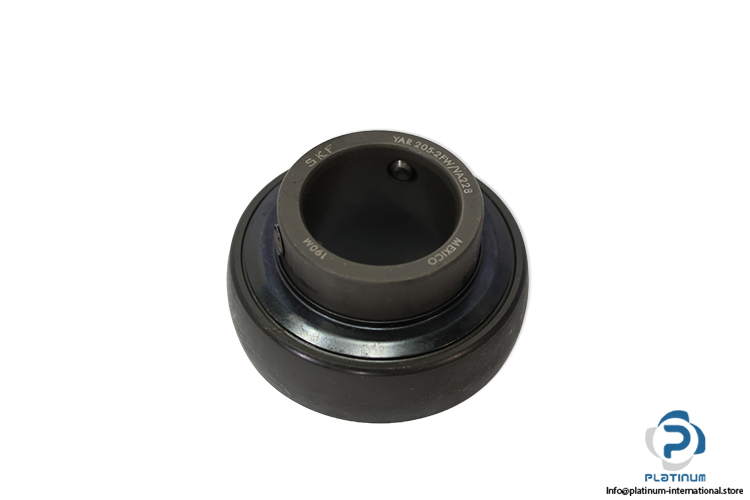

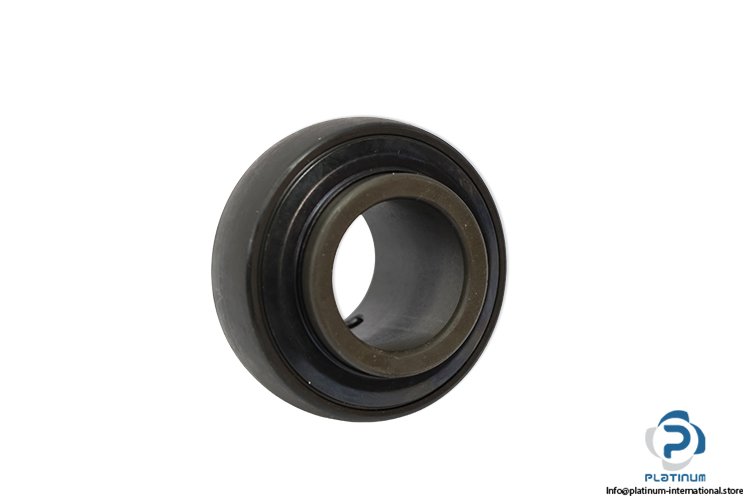

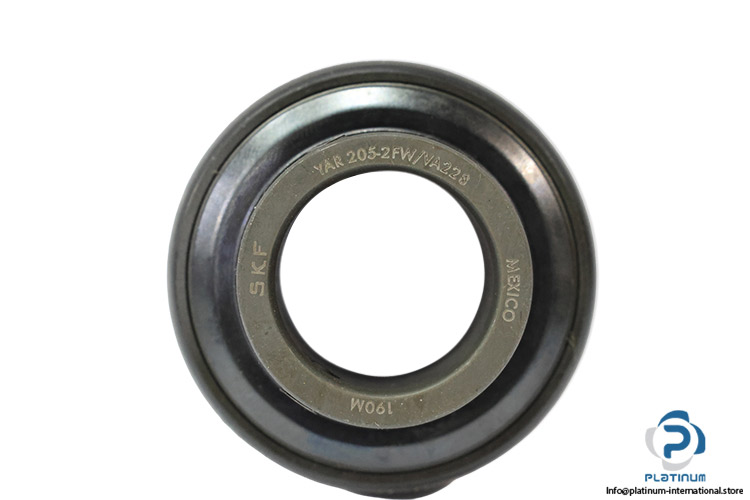

SKF YAR 205-2FW/VA228 High Temperature Insert Bearing
New
In stock1 unitReady to ship
High Temperature Insert Bearing SKF high-temperature insert bearing with 25mm bore, set screw locking, extended inner ring and maximum operating temperature of 350°C.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Shaft diameter | 25 mm |
| Bore diameter | 25 mm |
| Outside diameter | 52 mm |
| Width, total | 34.1 mm |
| Width, inner ring | 34.1 mm |
| Width, outer ring | 15 mm |
| Basic dynamic load rating | 14 kN |
| Basic static load rating | 7.8 kN |
| Limiting speed | 230 r/min |
| Maximum operating temperature | 350 °C |
| Retaining feature, inner ring | Set screws |
| Bore type | Cylindrical |
| Rolling elements | Balls |
| Outer ring type | Spherical |
| Shields / Flingers (2F) | Standard high-temperature shields on both sides |
| Cage | Sheet metal |
| Material, bearing | High temperature steel |
| Coating | Manganese phosphate coated |
| Sealing | Shield and flinger on both side |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101229 |
| Weight | 0,20 |
