SKF YAT 208 Insert Ball Bearing
Used
Available on request
39,99$
INSERT BALL BEARING
Durable SKF insert bearing with 40 mm bore, spherical outer ring, and dual sealing ” ideal for high-load, high-speed industrial environments needing reliable alignment and secure fit.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF YAT 208 INSERT BALL BEARING

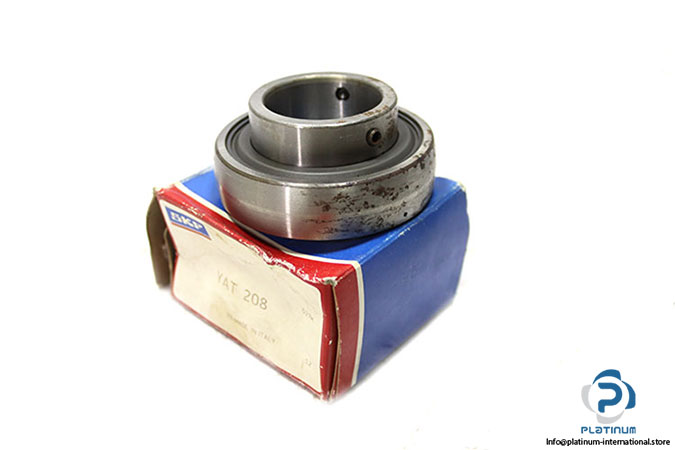

The SKF YAT 208 is a high-performance insert ball bearing engineered for demanding applications requiring reliability, durability, and precision. Designed with a spherical outer ring and extended inner ring, it ensures easy mounting and excellent alignment capabilities for industrial assemblies.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YAT 208

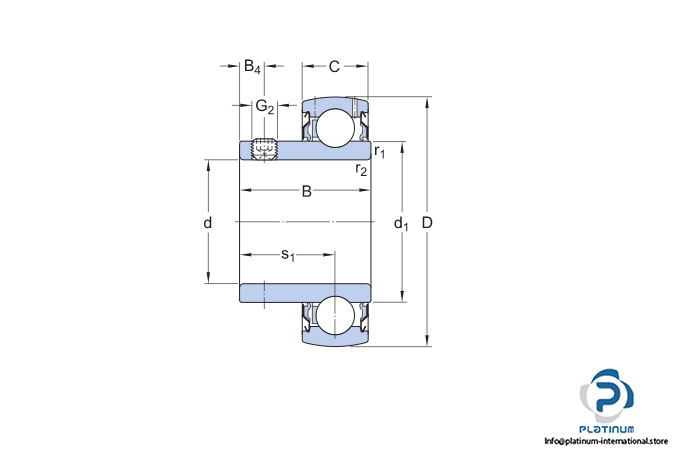

| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 80 mm |
| Width of Inner Ring (B) | 36 mm |
| Width of Outer Ring (C) | 21 mm |
| Dynamic Load Rating (C) | 30.7 kN |
| Static Load Rating (C0) | 19 kN |
| Fatigue Load Rating | 0.8 kN |
| Limiting Speed | 4800 r/min |
| Inner Ring Extension | On one side |
| Outer Ring Type | Spherical |
| Inner Ring Retaining Feature | Set screws |
| Sealing | Seal and flinger on both sides |
| Bore Type | Cylindrical |
