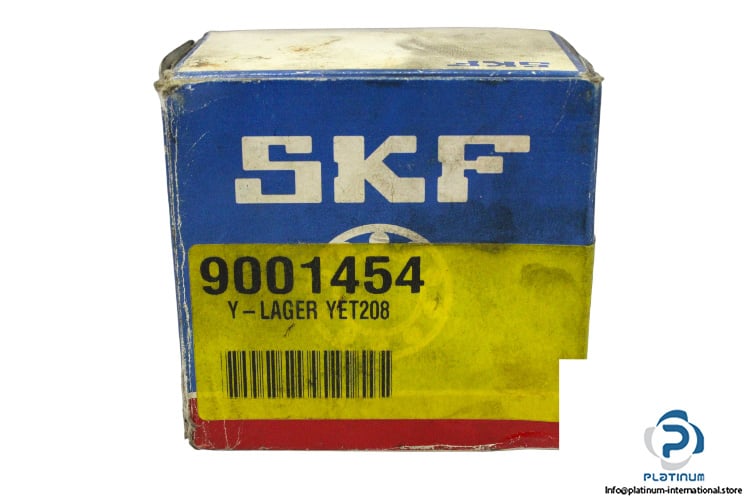

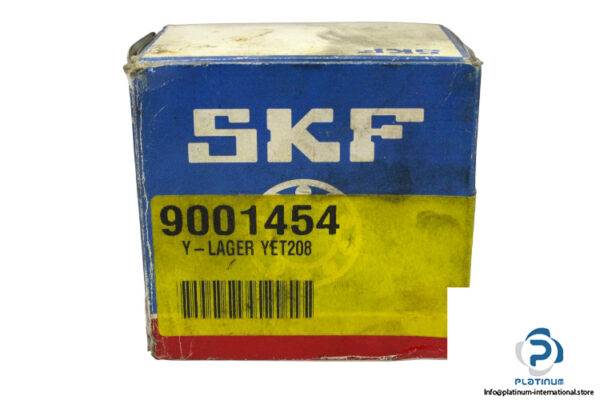

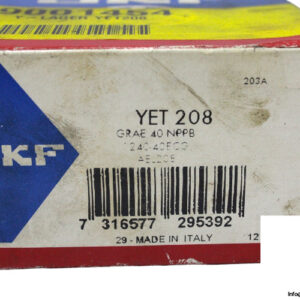

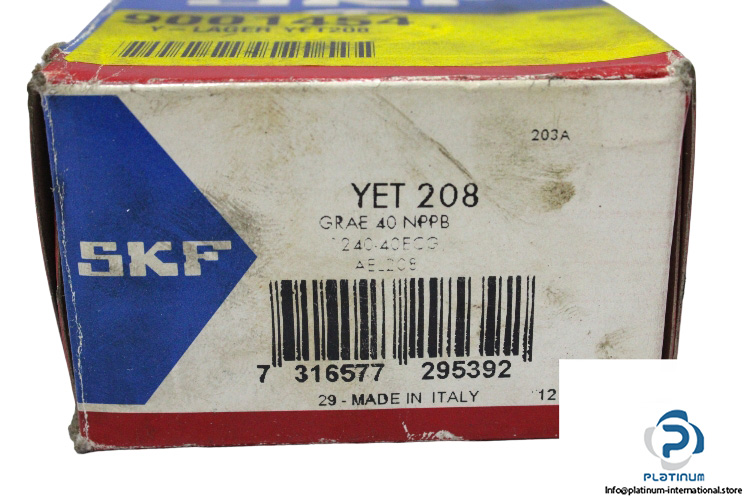

SKF YET 208 Insert Ball Bearing
New
In stock1 unitReady to ship
INSERT BALL BEARING
SKF YET 208 Insert Ball Bearing with 40 mm bore, 80 mm outer diameter, and 4800 rpm limiting speed. Features eccentric collar, dual sealing, and high load capacity for demanding applications.20840BallbearingboreCapacityCollarCylindricalEccentricHighIndustrialinsertLoadmmOuterRingSealedSKFSphericalYET
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF YET 208 INSERT BALL BEARING
The SKF YET 208 Insert Ball Bearing is a robust and reliable bearing solution, designed for demanding applications requiring durability, high load capacity, and consistent performance. With an eccentric collar locking mechanism and dual-sided sealing, it offers secure mounting and protection against contaminants.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YET 208

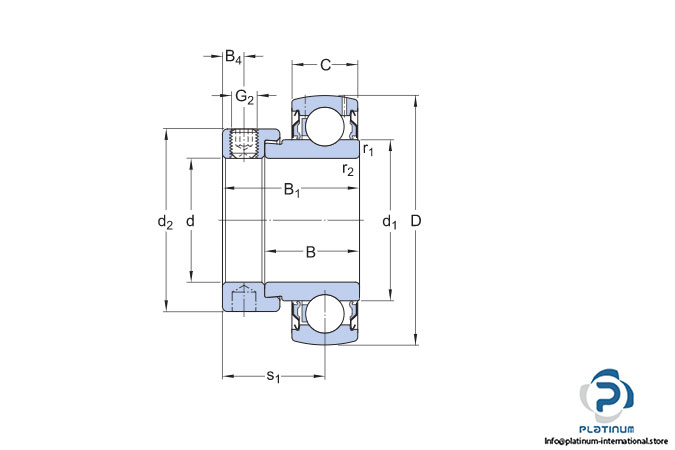

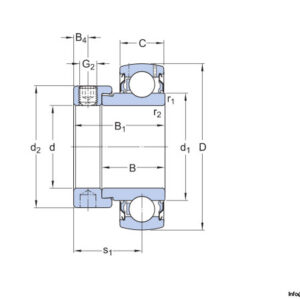

| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 80 mm |
| Width of Inner Ring (B) | 29.7 mm |
| Width of Outer Ring (C) | 21 mm |
| Overall Bearing Width (B1) | 43.2 mm |
| Basic Load Ratings | Dynamic C: 30,700 N / Static C0: 19,000 N |
| Fatigue Load Rating | 800 N |
| Limiting Speed | 4800 rpm |
| Inner Ring Extension | On one side |
| Outer Ring Type | Spherical |
| Retaining Feature, Inner Ring | Eccentric collar |
| Sealing | Seal on both sides |
| Bore Type | Cylindrical |
