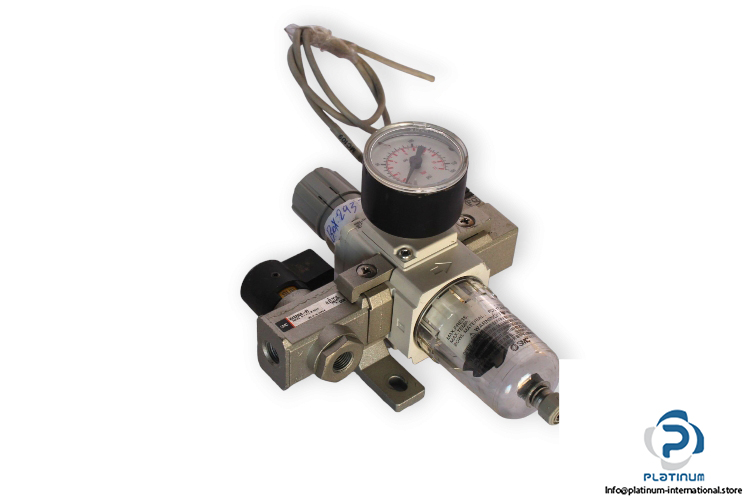

SMC AW20-F01-B Filter Regulator

Manufacturer: SMC
Type: Filter Regulator
Series: AW20

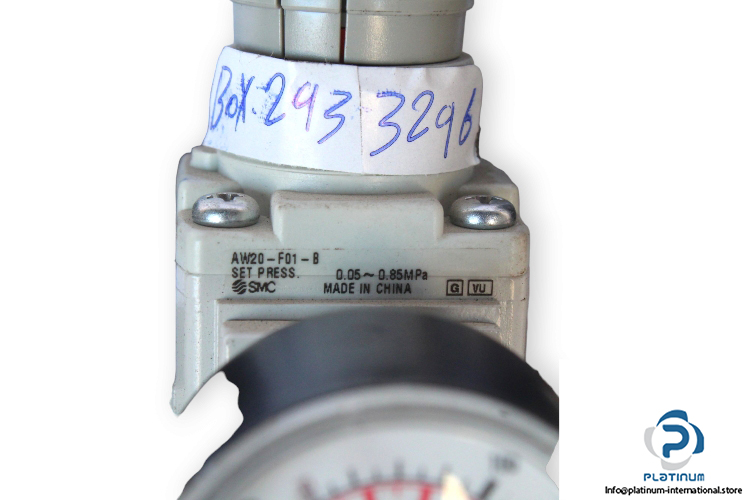

Model: AW20-F01-B

Set Pressure: 0.05 … 0.85 Mpa
Port Connection: G 1/8
Maximum Operating Pressure: 10 bar
Filtration Size: 5µm
Port Connection Thread Size: 1/8 in
Maximum Ambient Operating Temperature: +60°C
Minimum Process Operating Temperature: -5°C
Proof Pressure: 1.5MPa
Bowl Material: Polycarbonate

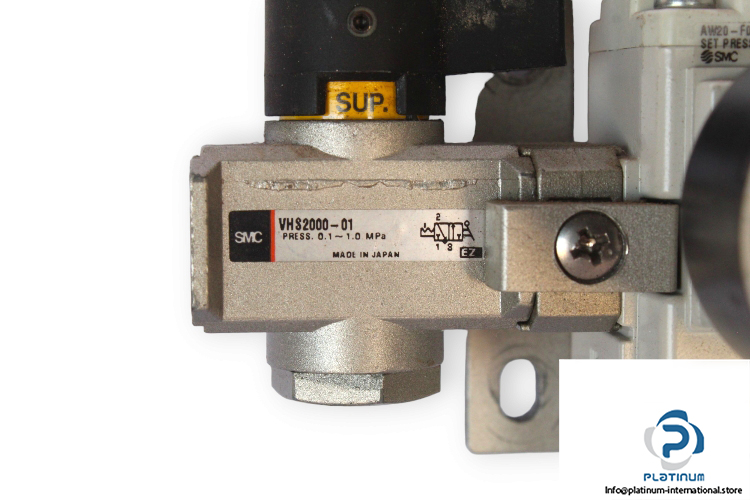

Attachment: SMC VHS2000-01 PRESSURE RELIEF VALVE
Manufacturer: SMC
Type: Pneumatic Pressure Relief Valve
Model: VHS2000-01

Pressure Range: 0.1 … 1.0 Mpa

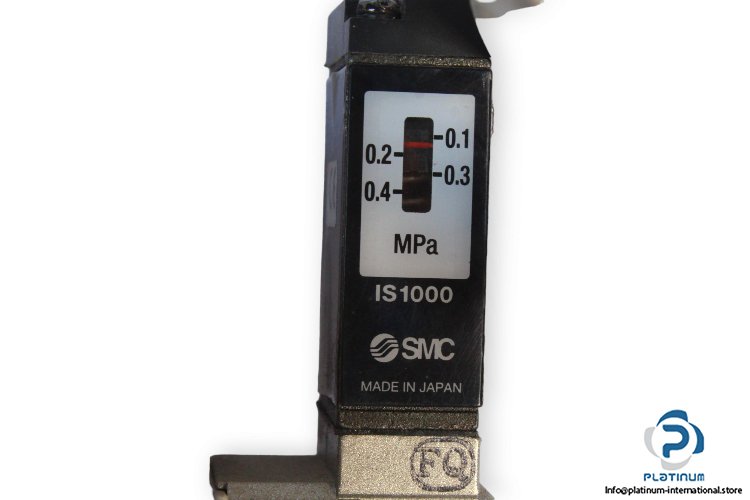

Attachment: SMC IS 1000 PRESSURE SWITCH
Manufacturer: SMC
Type: Pressure Switch
Model: IS1000

Fluid: Air
Proof pressure: 1.0 MPa
Max. operating pressure: 0.7 MPa
