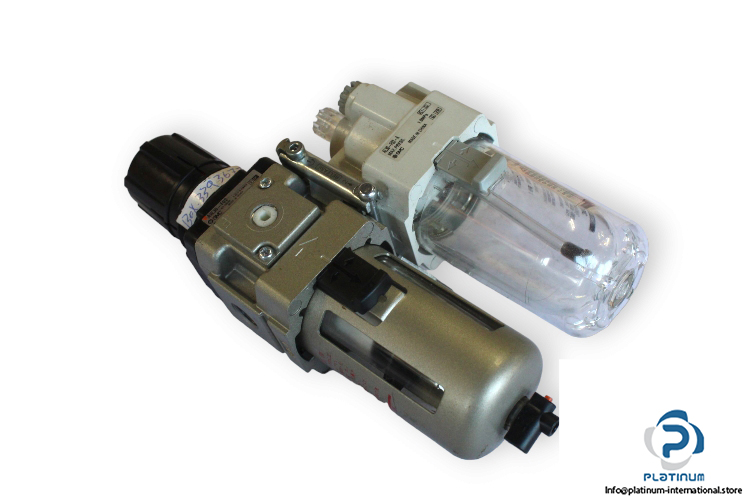

SMC AW30-F02 Filter Regulator With Pneumatic AIR Lubricator

Manufacturer: SMC
Type: Filter Regulator

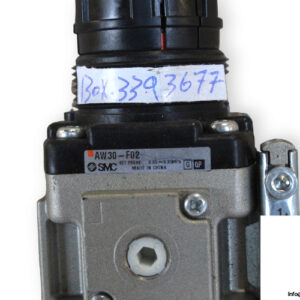

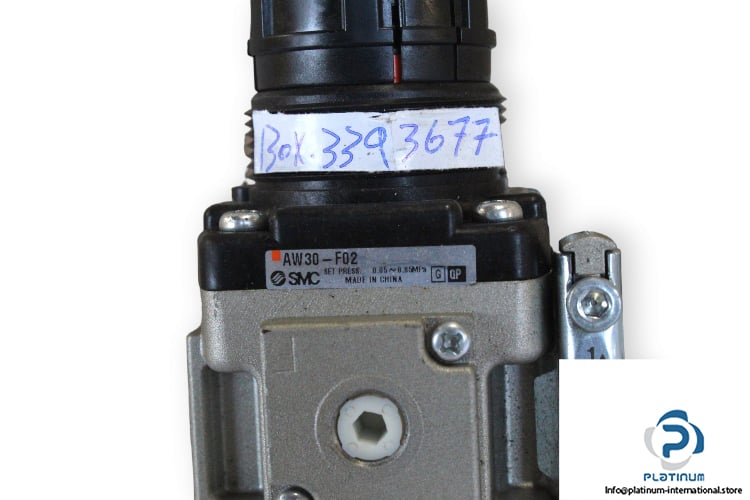

Model: AW30-F02

Materials
Body: die-cast zinc Z410
Proof pressure: 1.5 MPa
Max. operating pressure: 1.0 MPa
Pressure gauge port size: G1/8
Media: Compressed air, neutral gases
Set pressure range: 0.05 to 0.85 MPa
Port size: G1/4
Ambient Temperature: -5°C … 60°C

Attachment: SMC AL30-F02-A PNEUMATIC AIR LUBRICATOR
Manufacturer: SMC
Type: Pneumatic Air Lubricator

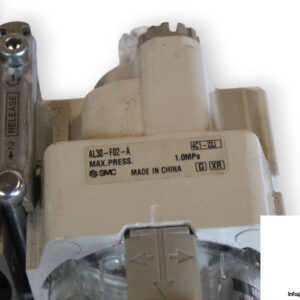

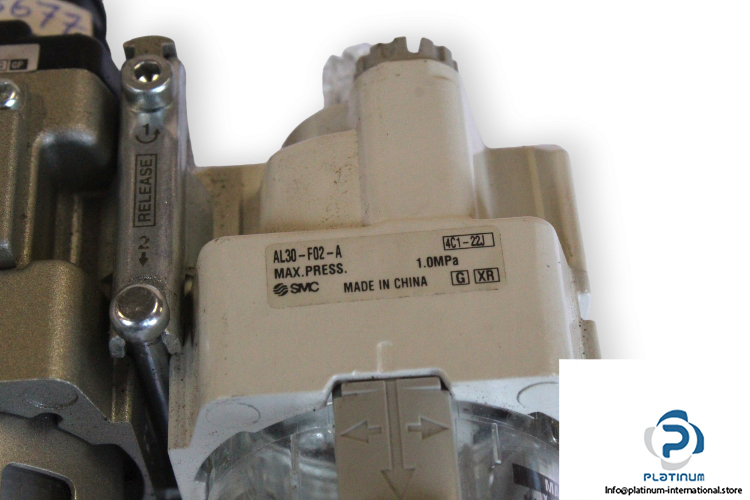

Model: AL30-F02-A

Maximum Operating Pressure: 1 MPa, 1.5 MPa
Maximum Operating Temperature: +60°C
Minimum Operating Temperature: -5°C
Port Connection: G 1/4
