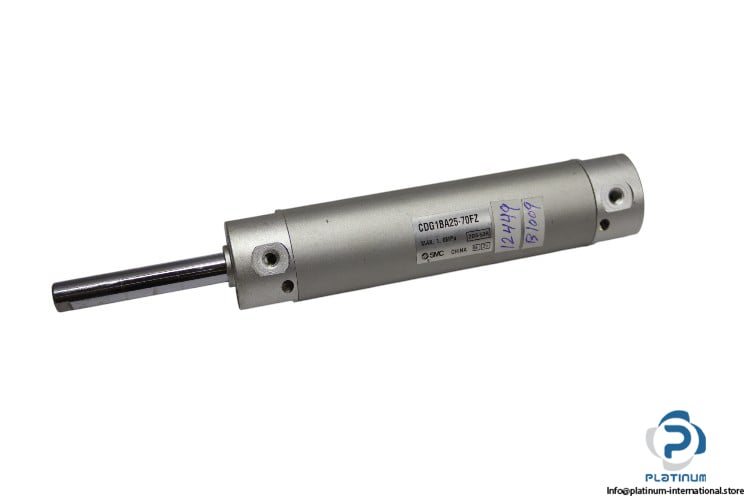

SMC CDG1BA25-70FZ AIR Cylinder

Available on request

Air Cylinder

The SMC CDG1BA25-70FZ is a 25 mm bore, 70 mm stroke air cylinder with a double-acting mode and circular design. Built with a single-ended piston rod for compressed air operations up to 1 MPa.

Manufacturer
SMC
SKU
1056202
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SMC CDG1BA25-70FZ “ Air Cylinder

The SMC CDG1BA25-70FZ air cylinder is a high-quality pneumatic actuator designed for efficient double-acting operation. With a circular shape and single-ended piston rod, it supports reliable compressed air applications up to 1 MPa.

Manufacturer: SMC

Type: Air Cylinder

Model: CDG1BA25-70FZ

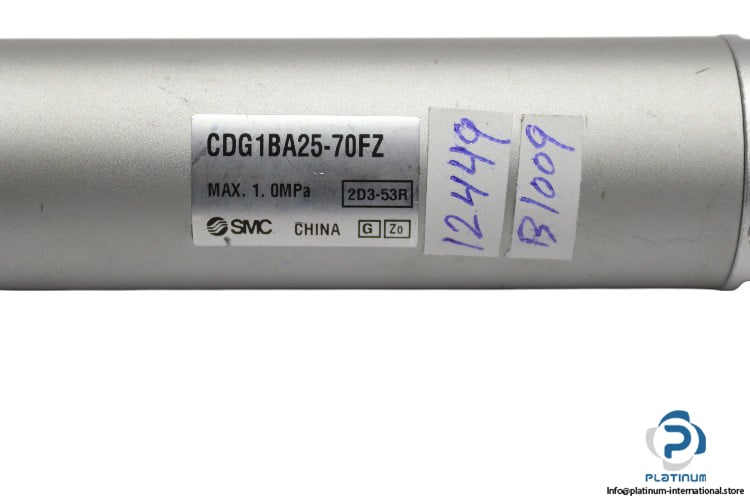

MNR: 2D3-53R

Bore Diameter25 mm
Stroke70 mm
Operating MediumCompressed air
Pneumatic Connection5 mm
VariantsSingle-ended piston rod
Mode of OperationDouble acting
Operation PressureMax. 1 MPa
ShapeCircular
