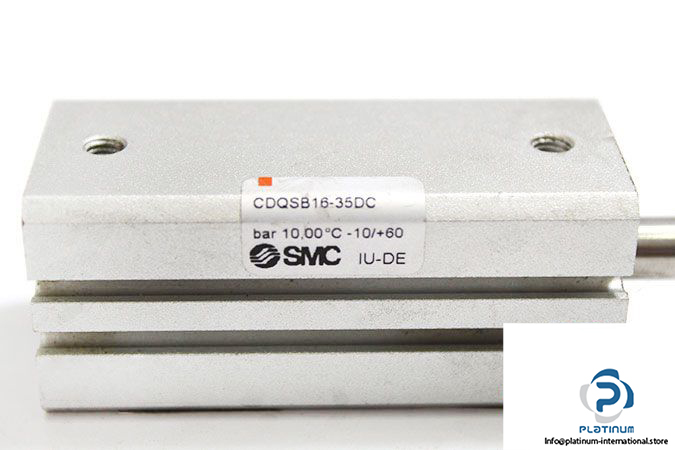

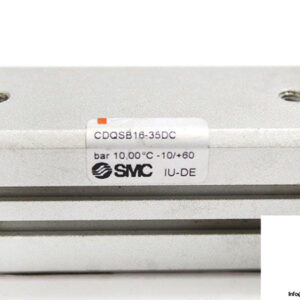

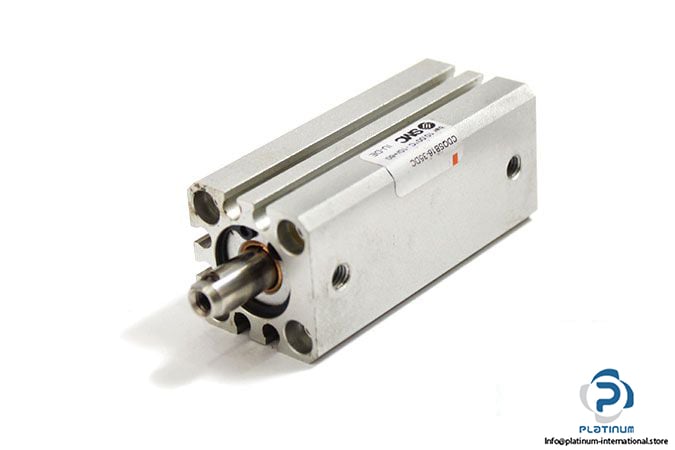

SMC CDQSB16-35DC Compact Cylinder

Manufacturer: SMC

Type: DOUBLE ACTING COMPACT CYLINDER WITH AUTO SWITCH

Model: CDQSB16-35DC

Mounting style: Through-hole/Both ends tapped common (Standard)

Bore size: 16 mm

Stroke Length: 35 mm

Piston speed: 50 … 500 mm/s

Rod End Thread: Female Thread

Operating medium: Compressed air

Mode of operation: Double acting

Operating pressure Range: 0.07 MPa … 1.0 MPa

Temperature: -10 … 60 °C

Weight: 0.122 kg
