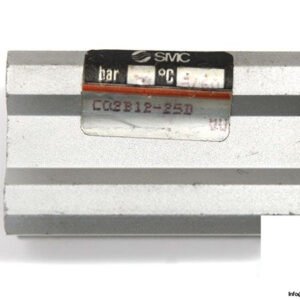

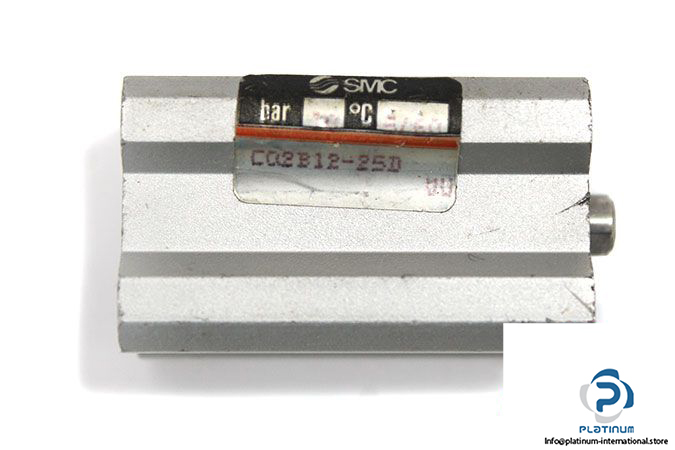

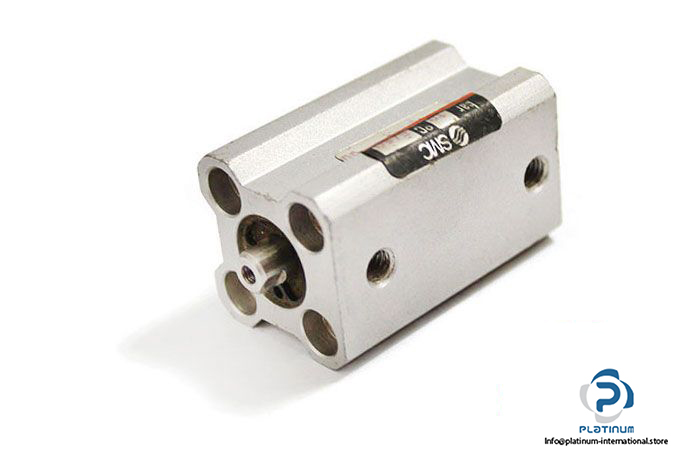

SMC CQ2B12-25D Compact Cylinder

Manufacturer: SMC

Type: DOUBLE ACTING COMPACT CYLINDER

Series: CQ2

Model: CQ2B12-25D

Dimensions:  45.5 x 25 x 25 mm

Mounting: Through-hole (Standard)

Bore size: 12 mm

Stroke Length: 25 mm

Compact cylinder type: Standard

Rod Type: Single Rod

Rod Size: M5x0.8 Female ISO

Port size: M5x0.8

Mode of operation: Double acting

Operating pressure Range: 0.07 … 1 Mpa

Push force at 100 psi: 79 N

Pull force at 100 psi: 59 N

Proof pressure: 1.5 Mpa

Temperature: -10 … 70 °C

Weight: 0.054 kg
