SMC D-Z73 Reed Auto Switch With Connector
Used
In stock1 unitReady to ship
SMC D-Z73 Reed Auto Switch with 3-PIN connector and in-line entry, suitable for PLC and relay loads. Compact design, fast 1.2 ms response time, and strong impact resistance.
3-pinAutoAutomationCompatibleConnectorD-Z73EntryIN-LineIndustrialLoadPLCPneumaticReedRelaySensorSMCSwitchType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SMC
Type: Reed Auto Switch with Connector
Model: D-Z73

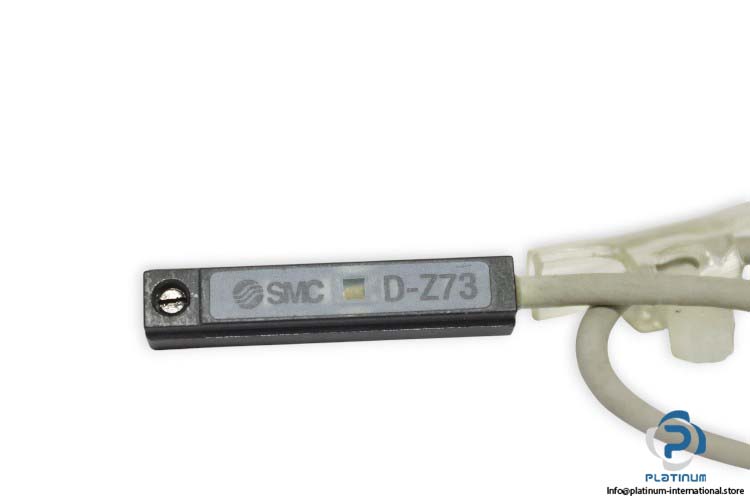

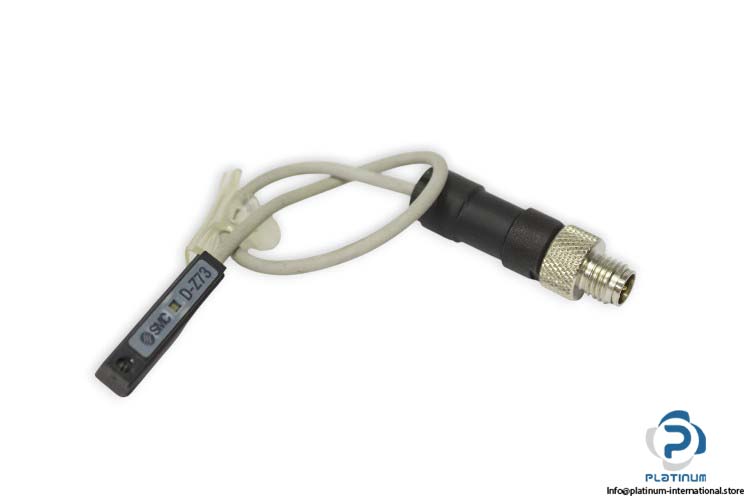

The SMC D-Z73 is a compact and efficient reed auto switch designed for detecting piston position in pneumatic cylinders. With its fast response time and compatibility with both relay and PLC loads, it is ideal for industrial automation systems. It features an in-line electrical entry and a 3-pin connector, ensuring quick and secure installation. Built to withstand tough environments, it delivers reliable performance under high impact and varying temperatures.
Technical Specifications:
- Operating Voltage: 24 V DC, 100 V AC
- Electrical Entry Direction: In-line
- Max. Load Current: 5 / 40 mA AC/DC
- Applicable Load: Relay, PLC
- Operating Time: 1.2 ms
- Impact Resistance: 300 m/s²

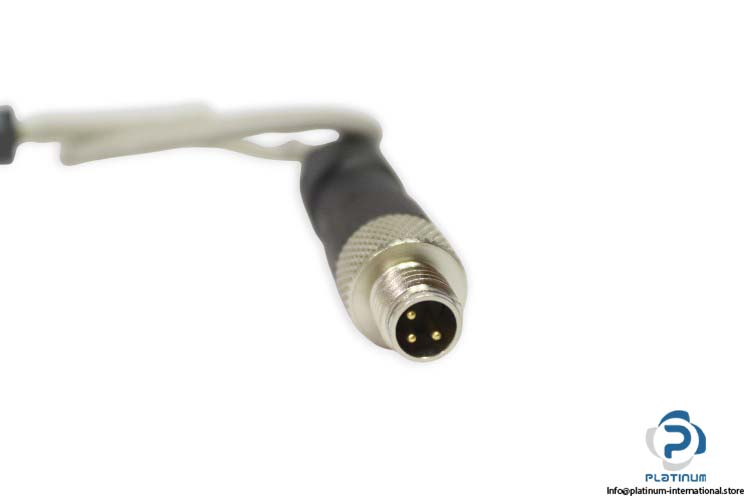

- Connection Type: Connector, 3-PIN
- Operating Temperature: -10 / 60°C
