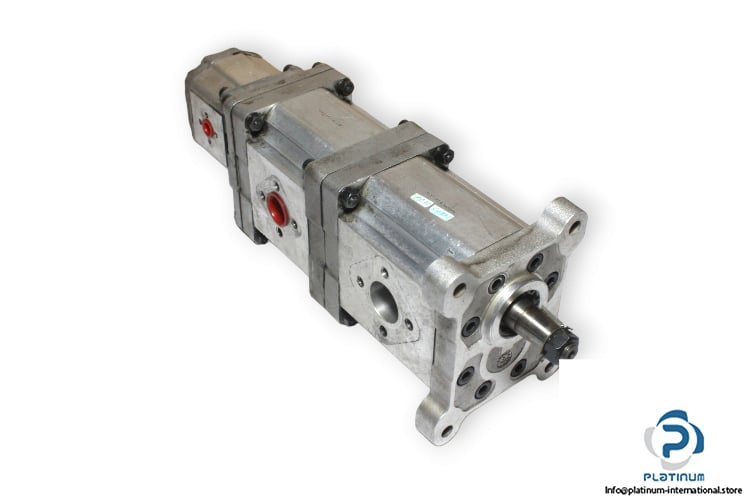

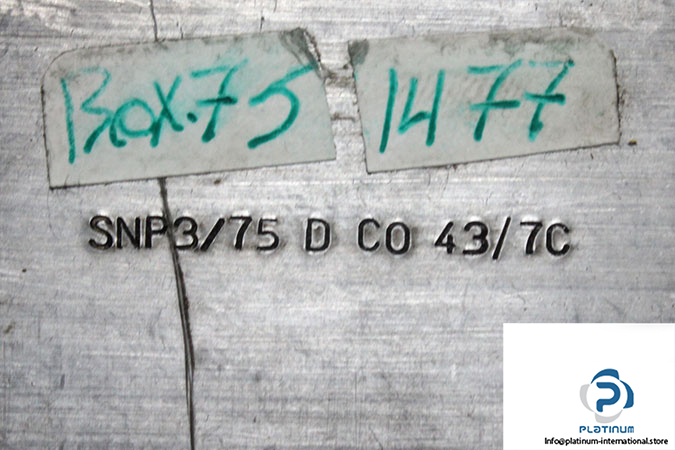

SNP3/75 D CO 43/7C Gear Pump

Type: Gear Pump
Model: SNP3/75 D CO 43/7C

Rotation: Right(clockwise)
Displacement: 74.4 cm3/rev
Peak Pressure: 200 bar
Rated Pressure: 180 bar
Speed Range: 600 … 2500 rpm
Theoretical Flow @ max. Speed: 186 l/min

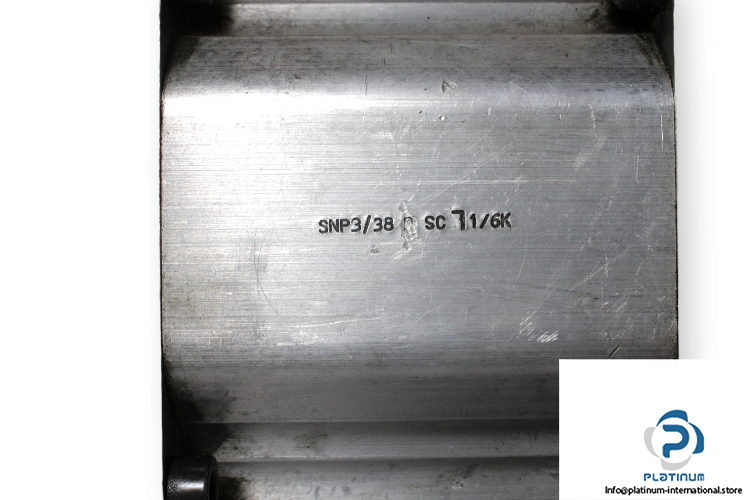

Attachment 1: SNP3/38 D SC 71/6K GEAR PUMP
Type: Gear Pump
Model: SNP3/38 0 SC 71/6K

Rotation: Right(clockwise)
Peak Pressure P1: 270 bar
Rated Pressure: 250 bar
Speed Range: 800 … 3000 rpm
Theoretical Flow @ max. Speed: 113.7 l/min

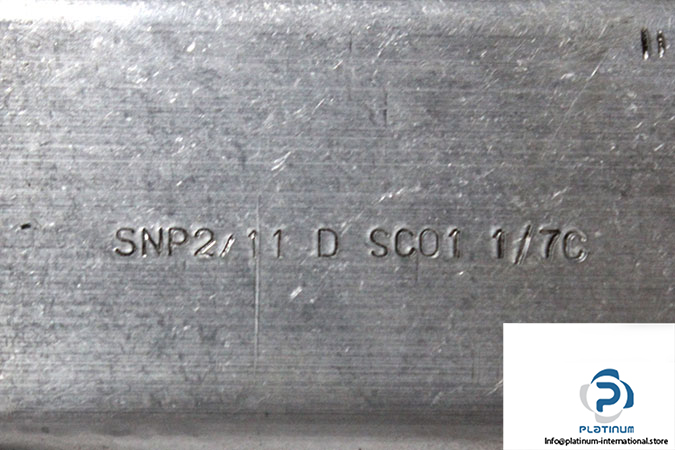

Attachment 2: SNP2/11 D SC01 1/7C GEAR PUMP
Type: Gear Pump
Model: SNP2/11 D SC01 1/7C

Rotation: Right(Clockwise)
Displacement: 10.8 cm³/rev
Shaft: DIN splined shaft / European four bolt flange / European flanged
ports
