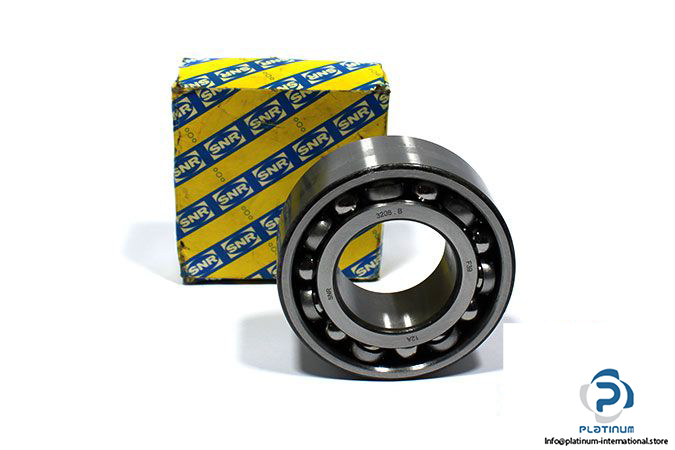

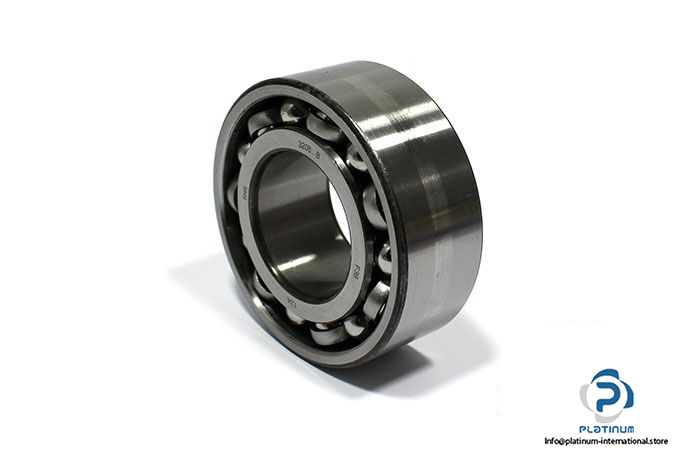

SNR 3208 B Double ROW Angular Contact Ball Bearing
Manufacturer: SNR
Type: Double Row Angular Contact Ball Bearing
Model: 3208.B

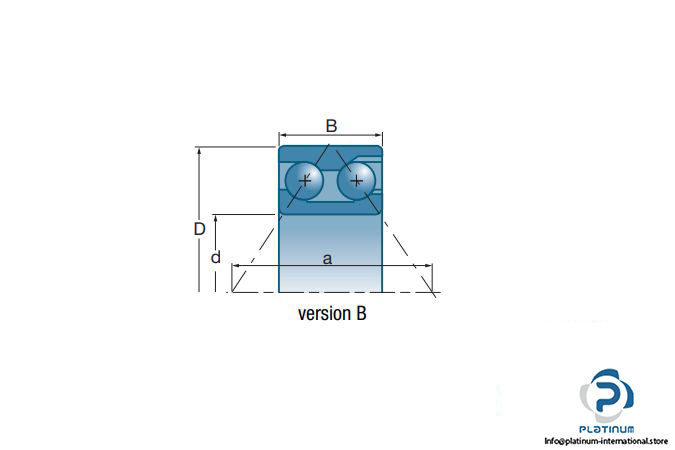

Dimensions
Bore Diameter d: 40 mm
Outer diameter D: 80 mm
Width B: 30.2 mm
Contact angle: 32 °
Basic load ratings, radial:
Dynamic C: 42000 N
Static C0: 44000 N
Limiting speed:
Grease: 5500 rpm
Oil: 7300 rpm
Cage: Steel cage
