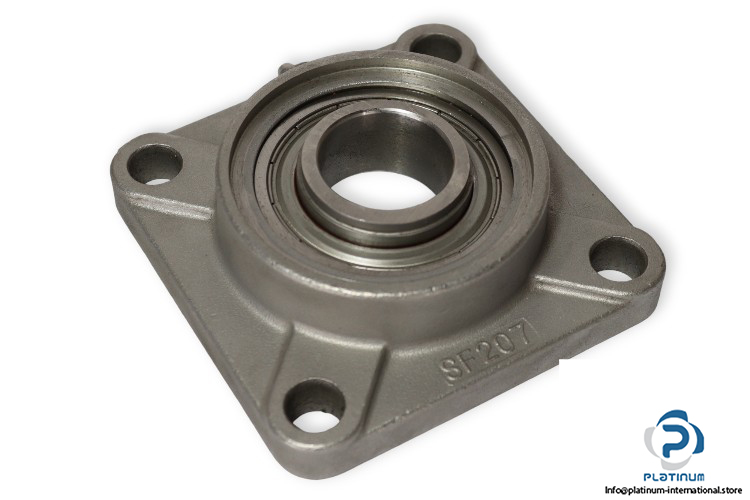

SNR SESF207 Stainless Steel Four-Bolt Square Flange Unit

Manufacture: SNR
Type: Stainless Steel Four-Bolt Square Flange Unit
Model: SESF 207

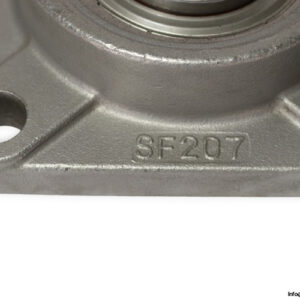

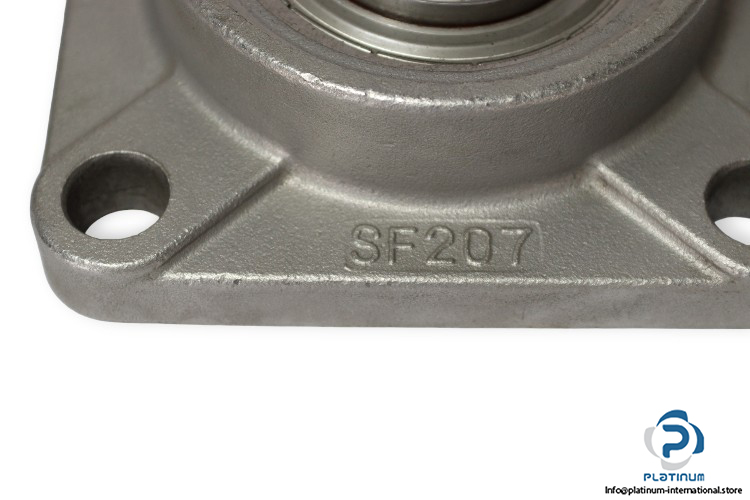

Housing No.: SF207

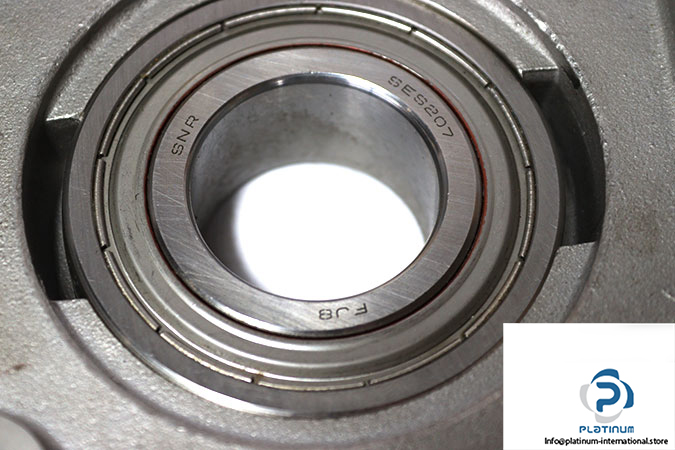

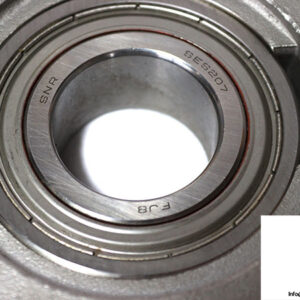

Bearing No.: SES207

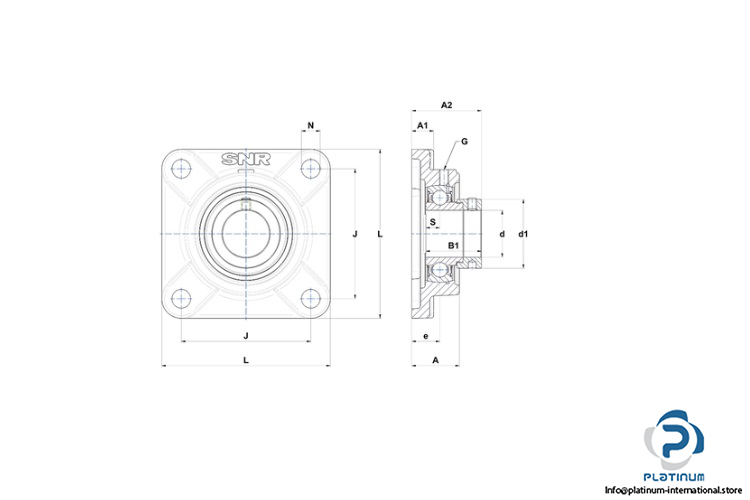

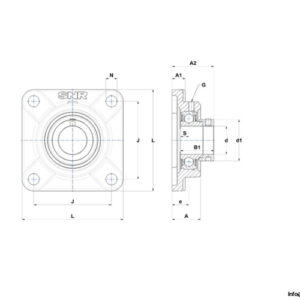

Dimensions
Housing height A: 33.5 mm
Housing foot height / flange height A1: 14.5 mm
Total height from mounting surface A2: 49.4 mm
Width of Inner Ring B: 25.4 mm
Overall width Inner Ring B1: 38.9 mm
Shaft diameter d: 35 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve d1:  55.6 mm
Distance mounting surface to bearing center e: 19 mm
Grease fitting G: M6x1
Mounting holes distance J: 92 mm
Housing width / diameter L: 116 mm
Mounting hole dimension N: 14 mm
Distance front side/bearing center S: 8.5 mm
Dynamic load rating C: 25.6 kN
Static load rating C₀: 15.3 kN
Mounting: Four-Bolt Square Flange
Material, housing: Stainless Steel
