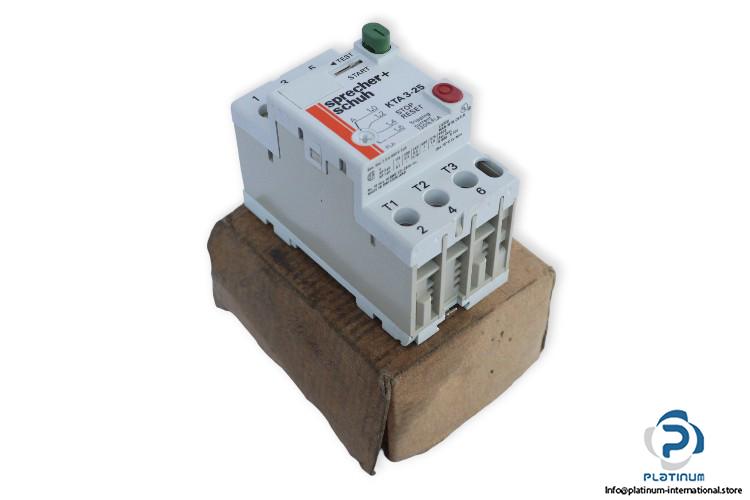

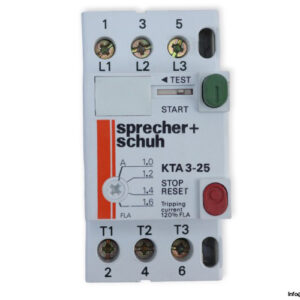

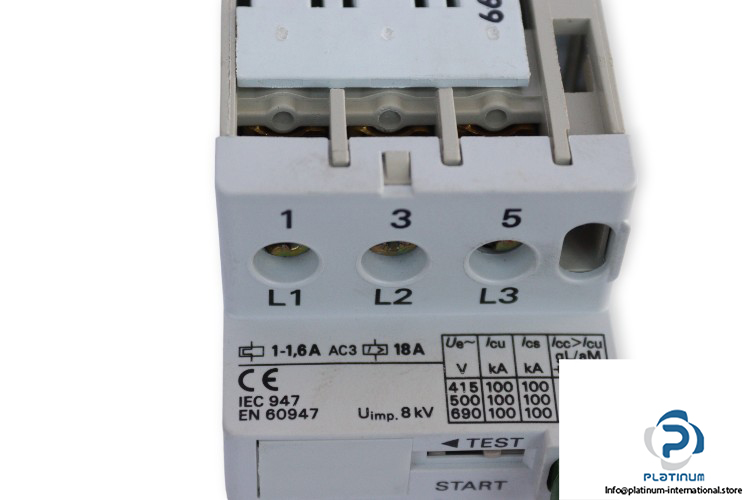

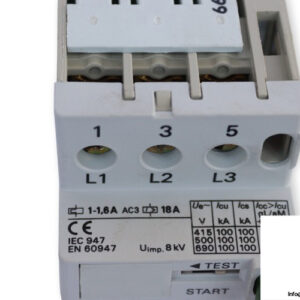

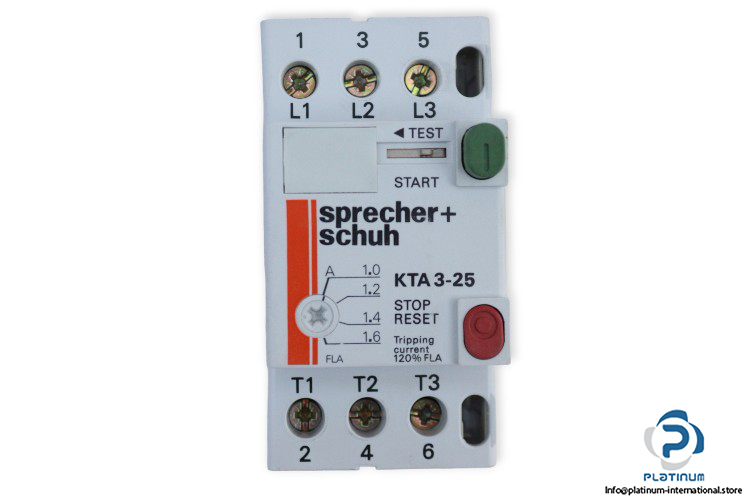

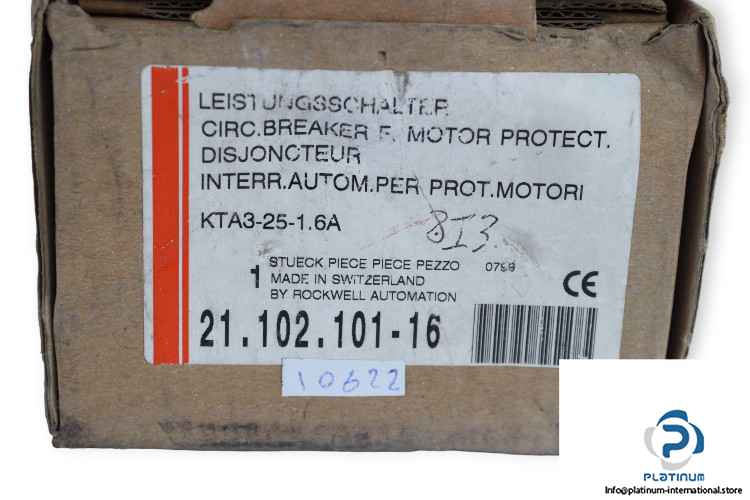

Sprecher+Schuh KTA3-25-1.6A Circuit Breaker FOR Motor Protect
New
In stock5 unitsReady to ship
55,55$
Manufacturer: Sprecher+Schuh Type: Circuit Breaker for Motor Protect Model: KTA3251.6A Art No: 21.102.101.16
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Sprecher+Schuh
Type: Circuit Breaker for Motor Protect
Model: KTA3251.6A
Art No: 21.102.101.16
Rated Insulation Voltage: 690 V
Rated Frequency: 40 … 60 Hz
Tripping Current: 120% FLA
Current Range: 1 … 1.6 A
Magnetic Response Current: 18 A
Power Consumption:
0.18 … 0.25 kW (230 … 240 V)
0.55 kW (460 … 575 V, 3 Ph), 34 HP
0.37 kW (400 V)
Impulse withstand Voltage: 8 kV
Short Circuit Rating: 42 kA (480 … 600 V)
Breaking Capacity: 100 kA (415 … 690 V AC)
No. of Poles: 3
Ambient Temperature: -25 … 60 °C
Protection Degree: IP20
Dimension: 70 X 88 X 72 mm
