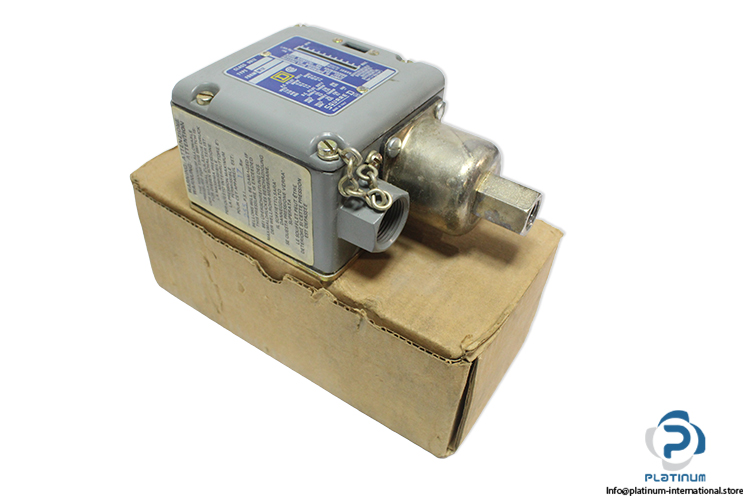

Square D ACW-1 Pressure Switch
New
In stock1 unitReady to ship
Pressure Switch
SQUARED ACW-1 industrial pressure switch with adjustable pressure range, SPDT contacts, and reliable electrical ratings for control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Schneider Electric ACW-1 Pressure Switch
The Schneider Electric ACW-1 is an industrial pressure switch engineered for precise pressure control and reliable switching performance. Designed within the ACW series, it features adjustable pressure and differential ranges with single pole double throw contacts, making it suitable for demanding industrial control applications.
Manufacturer: Schneider Electric, Squared
Type: Pressure Switch
Model: ACW-1
Class: 9012
Code: 75990-062-01
Series: ACW
Form: M12

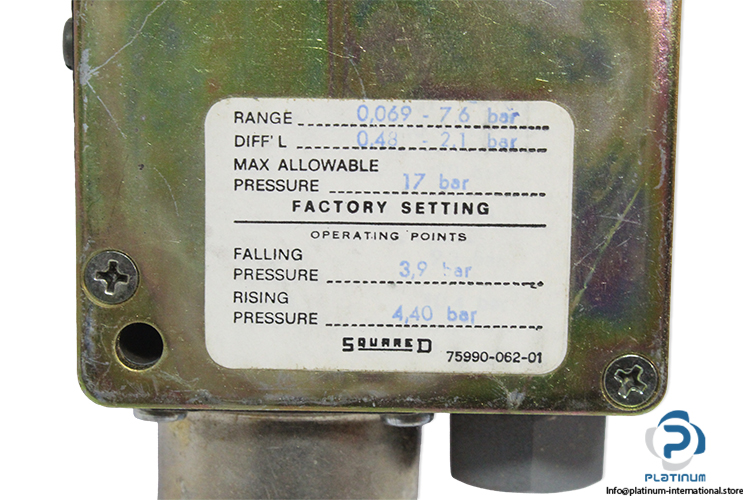

Factory Setting:

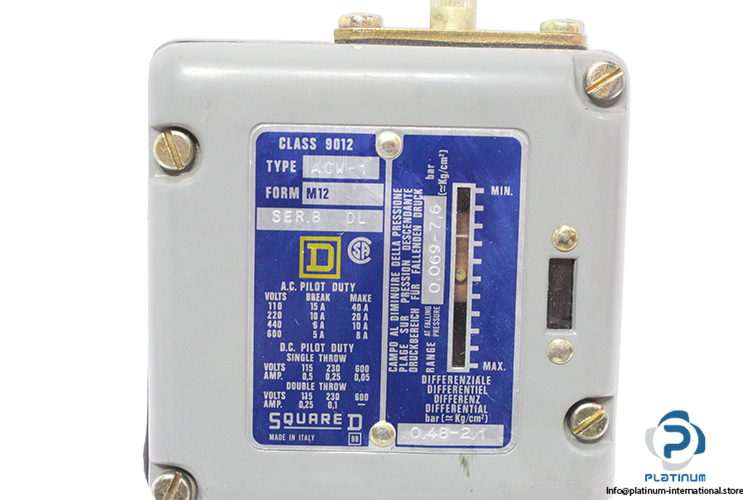

Electrical Ratings (Pilot Circuit)
AC Pilot Duty:
DC Pilot Duty:
| Adjustable Range | 0.069 / 7.6 bar |
| Differential Range | 0.48 / 2.1 bar |
| Contacts | Single Pole Double Throw (1NO + 1NC) |
| Falling Pressure | 3.9 bar |
| Rising Pressure | 4.40 bar |

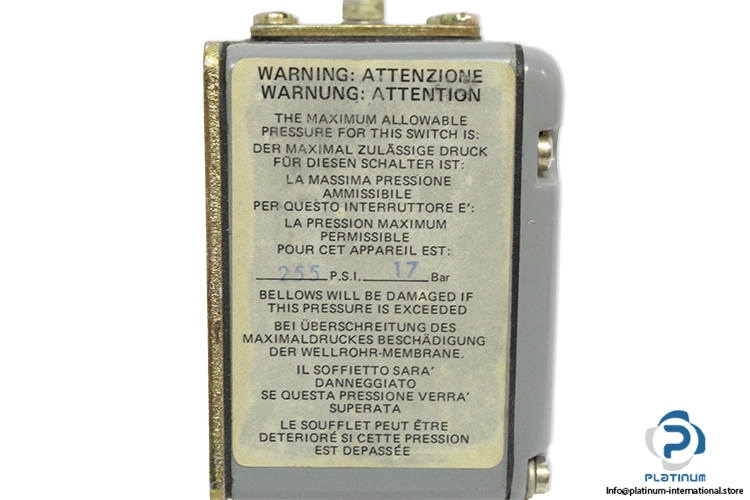

| Maximum Allowable Pressure | 17 bar |
| 110 V | 15 A (Break), 40 A |
| 220 V | 10 A (Break), 20 A |
| 440 V | 5 A (Break), 10 A |
| 600 V | 3 A (Break), 8 A |
| Single Throw | 115 V / 0.5 A, 230 V / 0.25 A, 600 V / 0.05 A |
| Double Throw | 115 V / 0.25 A, 230 V / 0.1 A |
