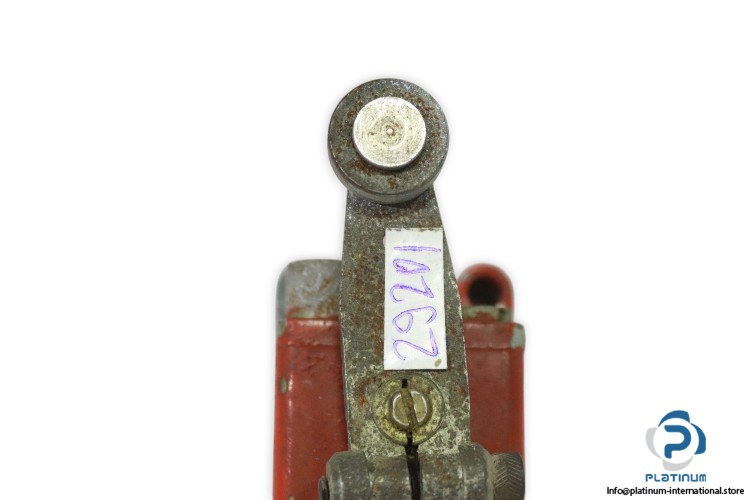

Square D AW12-B1 Limit Switch
Used
In stock1 unitReady to ship
19,99$
LIMIT SWITCH
Square D AW12-B1 limit switch, 9007AW series, with rotary head operator, SPDT-DB contacts, cast zinc housing, 600 V AC max, and surface mount design.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Square D AW12-B1 Limit Switch
The Square D AW12-B1 is a rugged limit switch designed for precise control and reliable performance in industrial environments. Built with a cast zinc body and rotary head operator, it ensures durability, high switching capacity, and versatile installation.

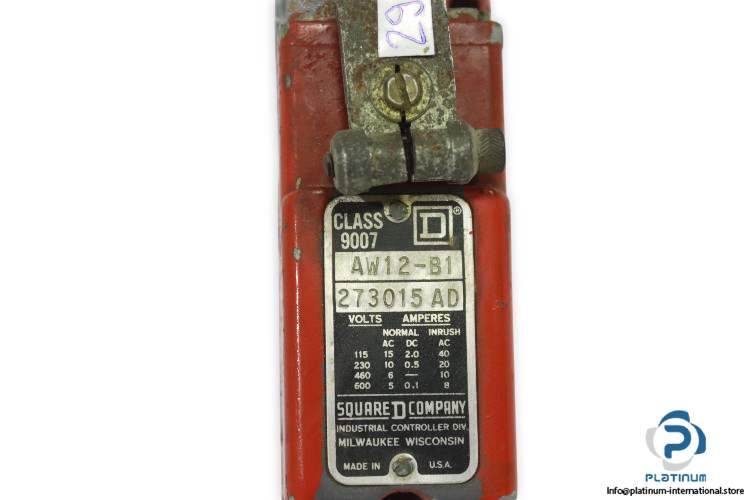

Manufacturer: Square D
Type: Limit Switch
Model: AW12-B1
Part No.: 273015AD
Device Short Name: 9007AW
| Current (Normal) | @ 115 V AC: 15 A @ 230 V AC: 10 A @ 460 V AC: 6 A @ 600 V AC: 5 A @ 115 V DC: 2 A @ 230 V DC: 0.5 A @ 460 V DC: -- @ 600 V DC: 0.1 A |
| Current (Inrush) | @ 115 V AC: 40 A @ 230 V AC: 20 A @ 460 V AC: 10 A @ 600 V AC: 8 A |
| Class | 9007 |
| Body Type | Fixed |
| Operator Profile | Rotary head |
| Mounting Mode | Surface mounting standard box |
| Contacts Type and Composition | NC-NO, SPDT-DB |
| Terminals Description ISO n°1 | (1 - 2) NC / (3 - 4) NO |
| Material | Metal |
| Body Material | Cast zinc |
| Operator Material | Cast zinc |
| Dimensions | 68.33 x 93.47 x 36.58 mm |
