Thermal Overload Relay

Durable and precise SQUARE D overload relay offering 220/380/660 V AC operation with adjustable 0.36“0.54 A range, IP20 protection, and reliable 4-pole configuration.

Manufacturer
SQUARE D
SKU
1079947
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

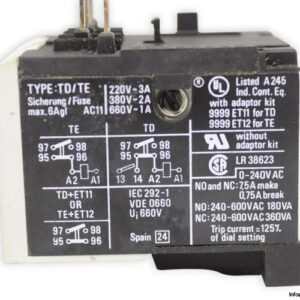

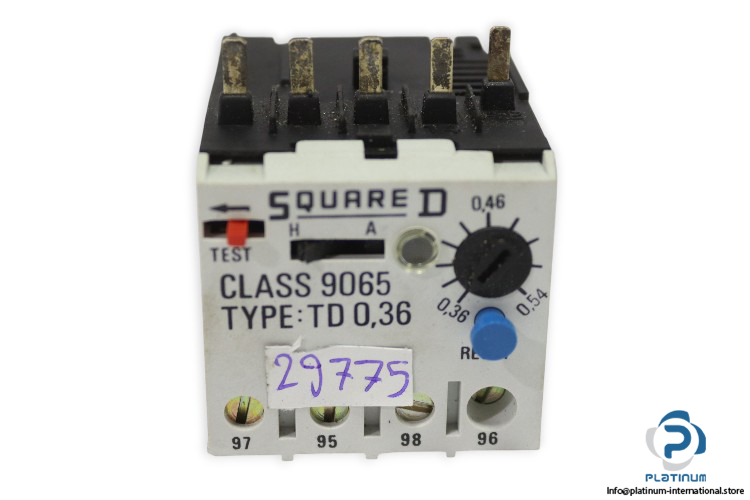

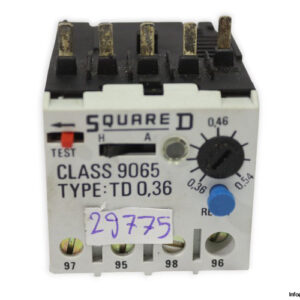

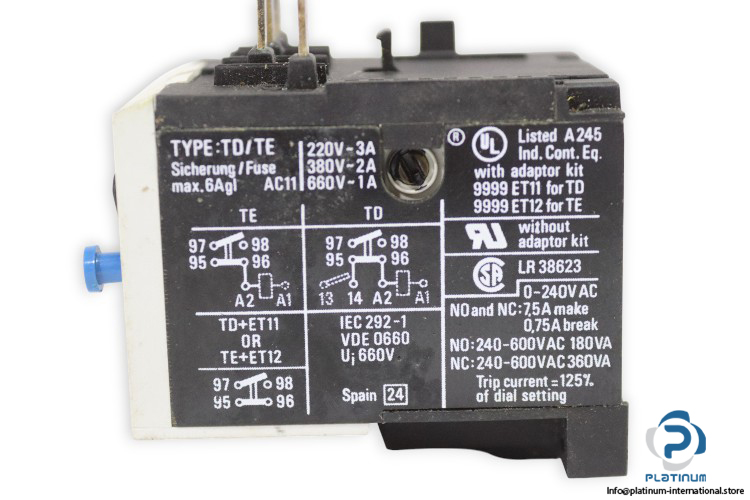

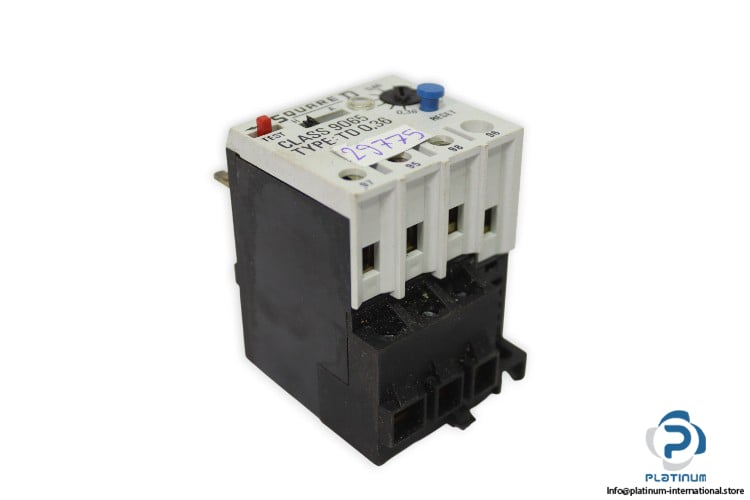

SQUARE D TD 0.36 / TD/TE Thermal Overload Relay

The SQUARE D TD0.36 / TD/TE Thermal Overload Relay provides dependable motor protection against overload and phase failure. Designed for durability and accuracy, it ensures safe operation and extended equipment life in various industrial applications.

Manufacturer: SQUARE D

Type: Thermal Overload Relay

Model: TD 0.36 / TD/TE

Part No.: 034685 / 702140

Rated Operational Voltage220 / 380 / 660 V AC
Rated Operational Current3 / 2 / 1 A
Rated Insulation Voltage660 V AC
Frequency50 / 60 Hz
Sitting Range0.36 / 0.54 A
Number of Poles4-Pole
Auxiliary Contact1 Normally Open (NO) + 1 Normally Closed (NC)
Contact Ratings240 / 600 V AC, 180 / 360 VA , 7.5 / 0.75 A
Protection ClassIP20
Ambient Temperature-20 / 60 °C
Dimensions81 x 70 x 115 mm
