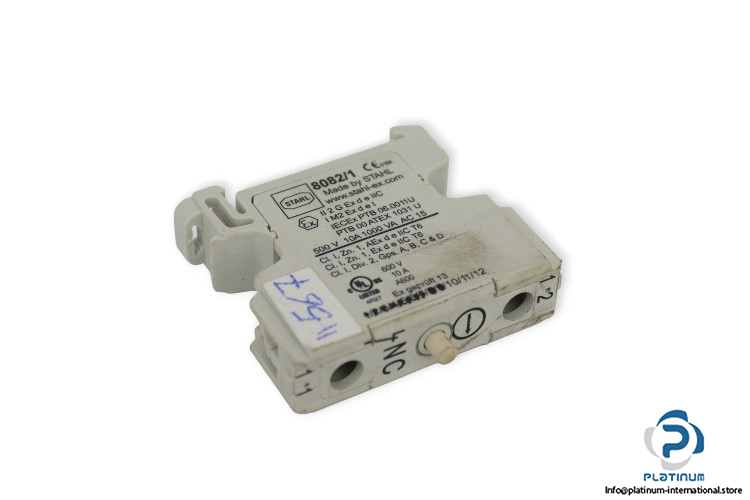

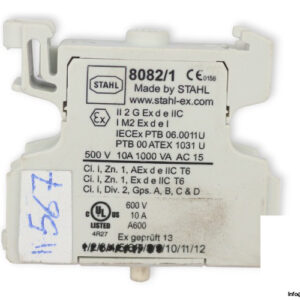

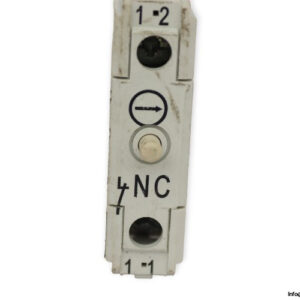

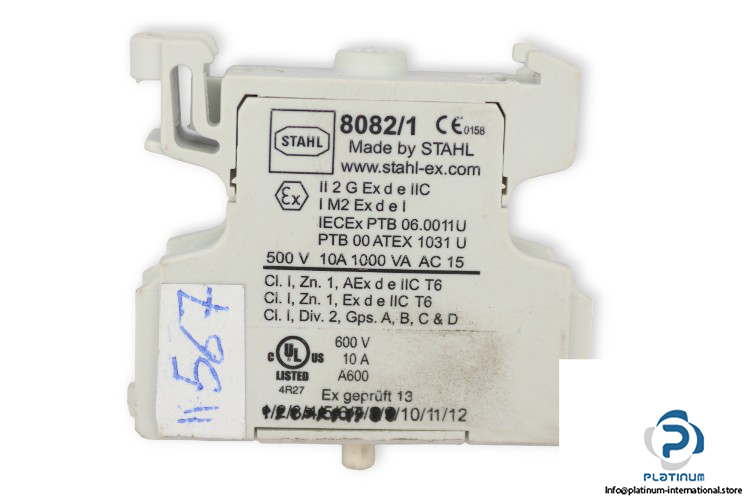

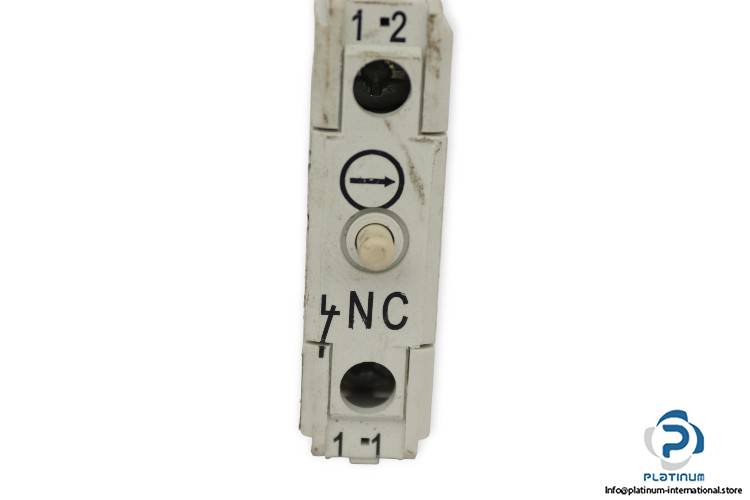

Stahl 8082/1 Contact Element

Manufacturer: Stahl
Type: Contact element with screw terminal
Model: 8082/1

ATEX gas certificate: PTB 00 ATEX 1031 U
ATEX gas explosion protection: EX II 2 G Ex d e IIC
ATEX firedamp protection: EX I M2 Ex d e I
IECEX firedamp certificate: IECEx PTB 06.0011U
Switching capacity AC-15: 500 V,10 A,1000 VA
General use: 600 V,10 A
Contacts: 1 Normally closed (NC)
Enclosure material: Polyamide
Contact material: silver-nickel, gold-plated
Protection degree: IP65
Operating temperature Range: -60 … +100 °C
Dimensions: 51.3 x 52 x 14 mm
