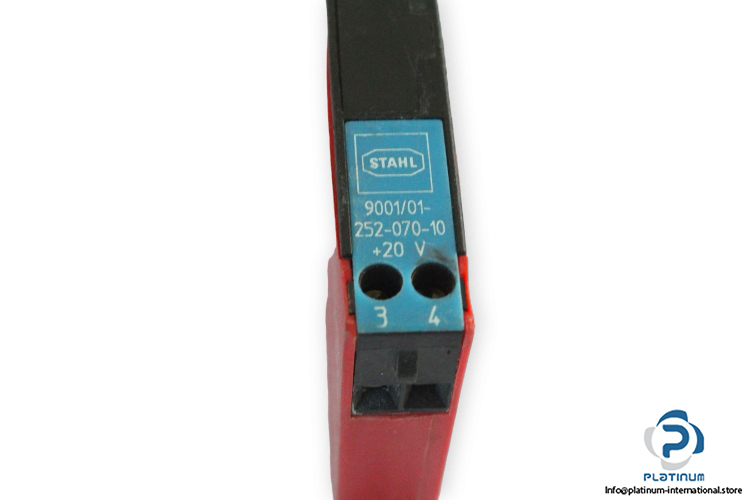

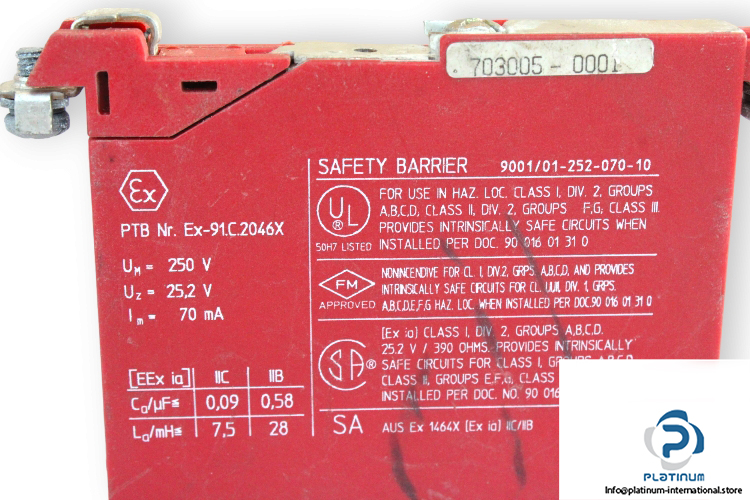

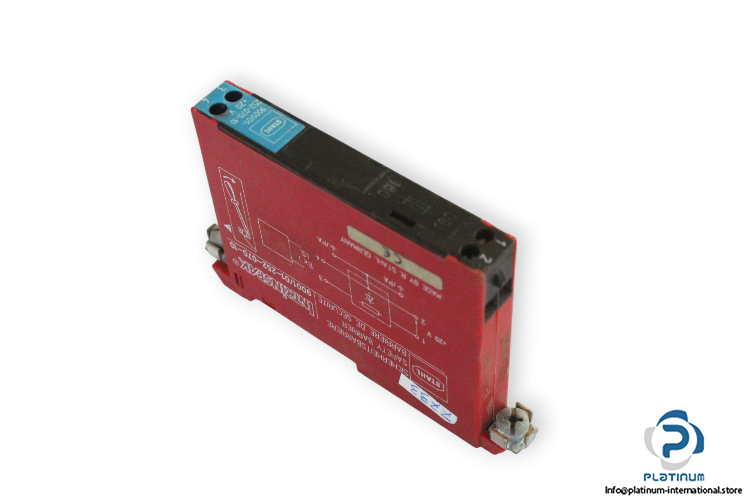

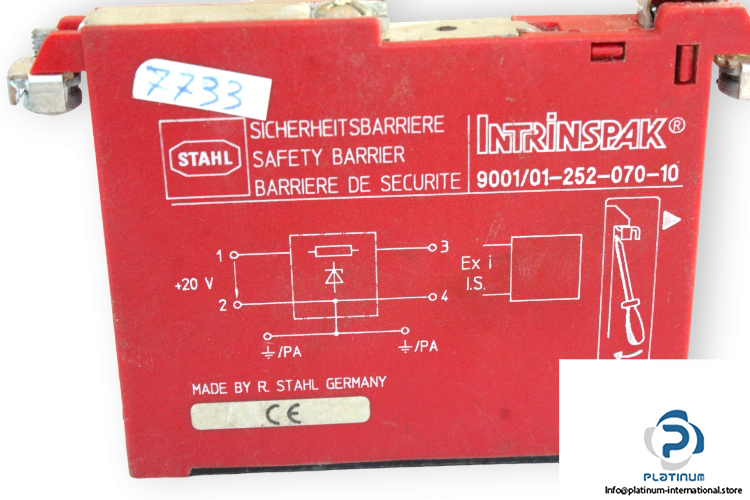

Stahl 9001/01-252-070-10 Safety Barrier

Manufacturer: Stahl
Type: Single-Channel Safety Barrier
Model: 9001/01-252-070-10

Power Supply: 20 V
Voltage: 250 V
Max. Voltage: 25.2
Max. Current: 70 mA
Current Limitation: 70 mA
Protection: Explosion Proof
permissible external Inductance: 7.5 mH (IIC), 28 mH (IIB)
permissible external capacity: 0.09 µF (IIC), 0.58 µF (IIB)
Operating Temperature: -20 … 60 °C
Degree of protection: terminal enclosure IP20, Casing IP40
Dimensions: 103 X 12 X 72 mm
