Stahl 9477/15-08-12 Digital Output Module
Used
In stock1 unitReady to ship
99,99$
Digital Output Module
STAHL DOM R 08 digital output module for the IS1 remote I/O system with 8 Ex e output channels, explosion-proof design, and reliable control for hazardous industrial environments.088AreaAutomationchannelControlDigitalDOMExplosionHazardousI/OIndustrialIS1ModuleOutputProofRStahlSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

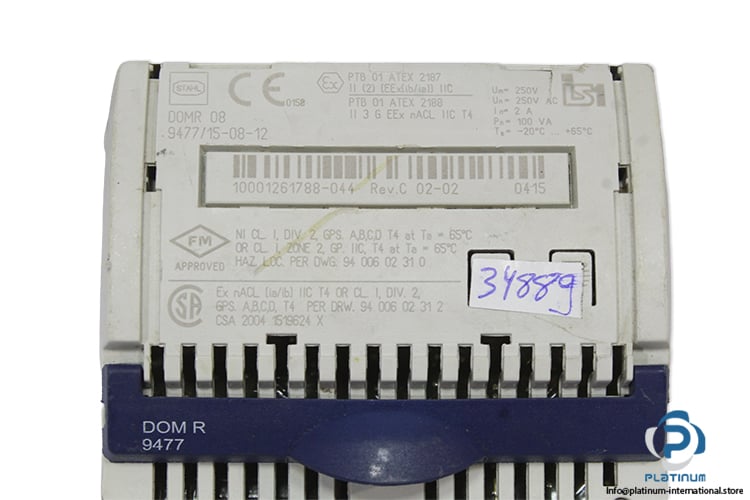

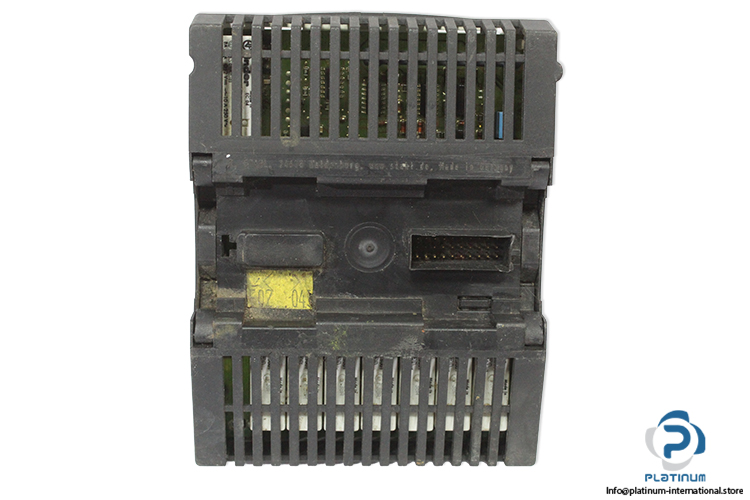

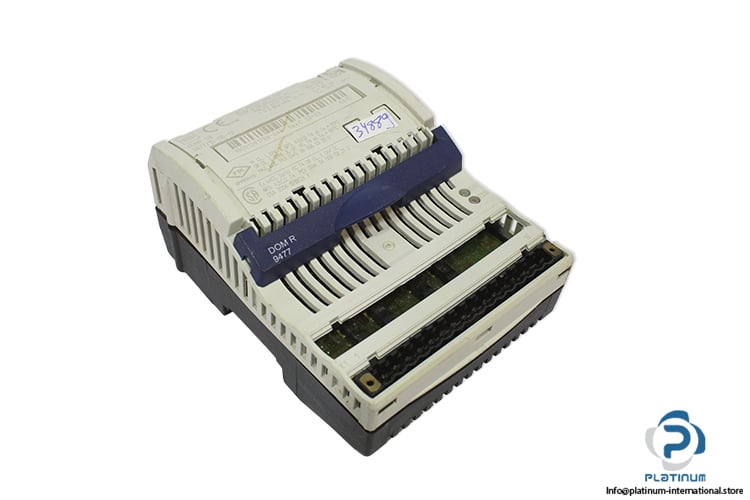

STAHL DOM R 08 Digital Output Module
The STAHL DOM R 08 is an industrial digital output module designed for the IS1 remote I/O system. It provides reliable control of field devices in hazardous environments and supports intrinsically safe operation with explosion protection.
Manufacturer: STAHL
Type: Digital Output Module
Model: DOM R 08
Order No.: 9477/15-08-12
Code: 10001261788-044
REV: C 02-02
Series: 9477
System: IS1
| Number Of Channels | 8 Ex e Outputs |
| Connection Ex nA Field Signals | Pluggable Terminals, 16-Pin, 2.5 mm², Screw Type Or Cage Clamp Version With Lock |
| Max. Power Consumption | 4.80 W |
| Max. Power Dissipation Of Outputs | 4.8 W |
| Power Supply Connection | BusRail Types 9494 |
| Auxiliary Power Version | Intrinsically Safe Ex ia Via BusRail |
| Behaviour During Undervoltage | All Outputs "OFF" |
| Current Consumption | 200 mA |
| Max. Power Consumption | 4.80 W |
| Max. Power Dissipation Outputs | 4.8 W |
| Test Voltage For Galvanic Separation | Acc. To Standard EN 60079-11 |
| Auxiliary Power / System Components | 1500 V AC |
| I/O Module / I/O Module | 500 V AC |
| I/O Channels / System Components | 375 V AC |
| I/O Channels / I/O Channels | 250 V AC |
| Contact Version | NO |
| Max. Switching Voltage | 250 V AC |
| Min. Switching Voltage | 5 V AC/DC |
| Max. Switching Current | 2.00 A |
| Min. Switching Current | 2 mA |
| Ambient Temperature | -20°C ... +65°C |
| Max. Operating Altitude | < 2000 m |
| Degree Of Protection IP (IEC 60529) | IP20 |
| Module Enclosure | Polyamide 6GF |
| Fire Resistance (UL 94) | V2 |
| Pollutant Class | Corresponds To G3 |
| Width | 96.500 mm |
| Depth | 67 mm |
| Length | 128 mm |
| Contacts | NO |
| Ambient Temperature | -20 ... +65 °C |
| Explosion Protection | Explosion Proof |
