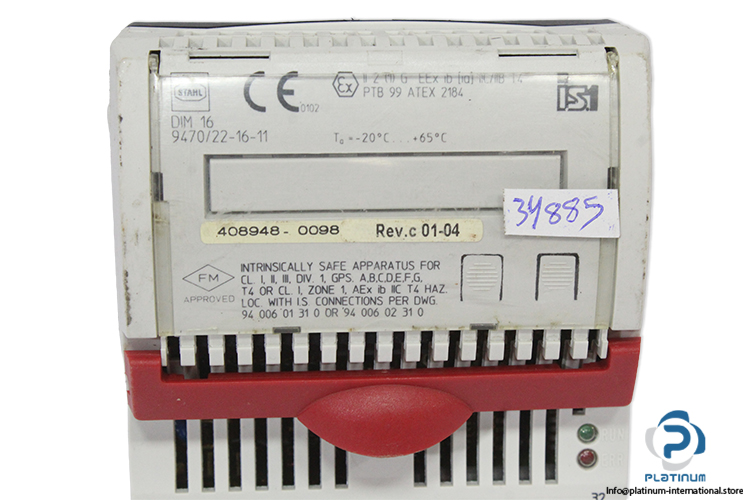

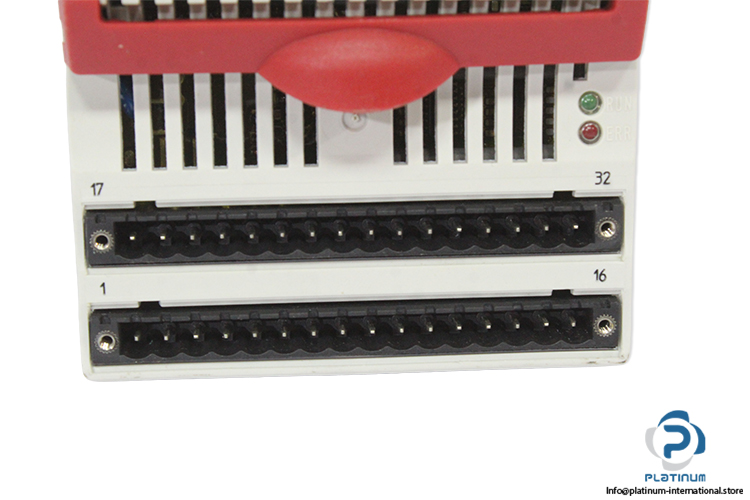

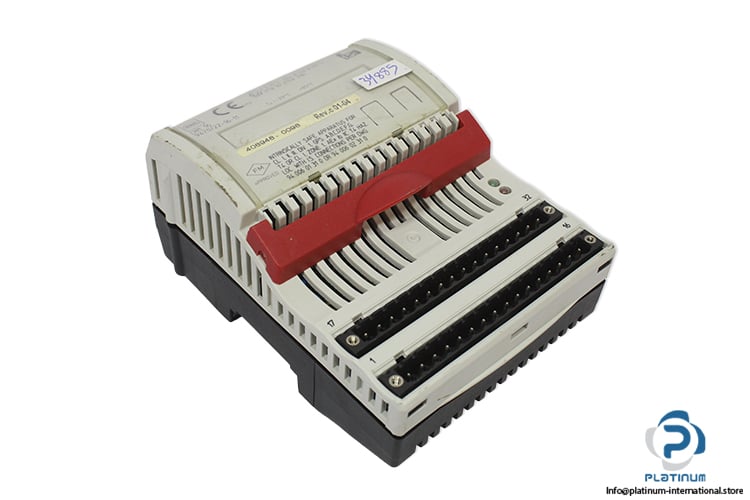

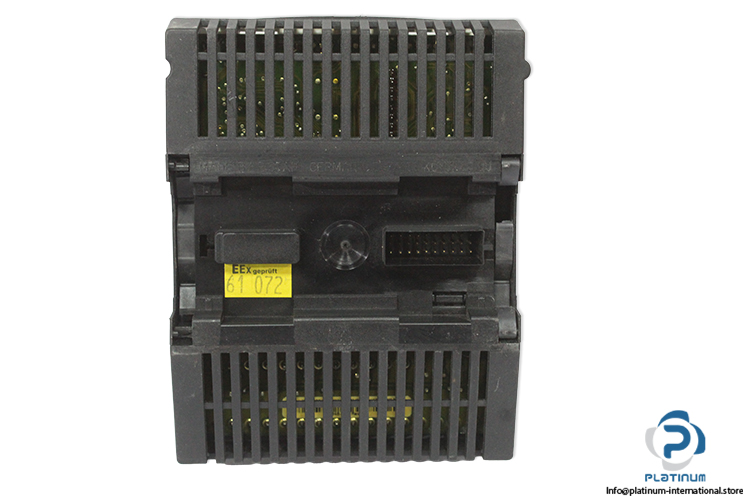

Stahl 9470/22-16-11 Digital Input Module

In stock9 unitsReady to ship

99,99$

Digital Input Module

STAHL DIM 16 digital input module for IS1 system with 16 NAMUR channels, explosion-proof design, and high switching frequency up to 20 kHz for industrial automation and hazardous environments.

Manufacturer
STAHL
SKU
1096066
Category
Others
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

STAHL DIM 16 Digital Input Module

The STAHL DIM 16 digital input module is part of the IS1 remote I/O system designed for safe signal acquisition in hazardous industrial environments. The module supports NAMUR input signals and provides reliable monitoring of field devices with high switching frequency and configurable frequency measurement ranges.

Manufacturer: STAHL

Type: Digital Input Module

Model: DIM 16

Order No.: 9470/22-16-11

Code: 408948-0098

Revision: C 01-04

Series: 9470

System: IS1

Per Channel Max. Voltage (U0)11.6 V
Max. Current (I0)22 mA
Max. Power (P0)51 mW
Max. Capacitance For IIC (Ca)600 nF
Max. Inductance For IIC (La)1 mH
4 Channels, Switched In Parallel Max. Voltage (U0)11.6 V
Max. Current (I0)55 mA
Max. Power (P0)127 mW
Max. Capacitance For IIC (Ca)560 nF
Max. Inductance For IIC (La)1 mH
Digital Inputs Number Of Channels16 (Channel 0 To 15)
SignalEN 60 947-5-6 (NAMUR)
Measurement DimensionsCurrent
Switching Characteristics Min. Current For ON2.1 mA
Max. Current For OFF1.2 mA
Switching Threshold1.65 mA
Electrical Parameters Supply Voltage7.8 V
Internal Resistance1 kOhm
Performance Max. Switching Frequency20 kHz
Min. Pulse Width25 ms
Frequency Input Measurement Ranges1 Hz ... 1 kHz, 1 Hz ... 20 kHz (Parameterizable For Each Channel)
Resolution Measurement Range 1 Hz ... 1 kHz0.05 Hz
Counter Counter Control SignalStart, Stop, Reset
Counter Range0 ... 65535
Power Supply Max. Power Consumption5 W
Max. Power Loss5 W
Ambient Temperature-20 ... +65 °C
ProtectionExplosion Proof
