Stahl 9471/10-16-11 Digital Input Module

In stock1 unitReady to ship

99,99$

Digital Input Module

STAHL IS1 digital input module with 16 channels for voltage measurement, frequency input, and counter functions. Designed for industrial automation systems and explosion-proof environments.

Manufacturer
STAHL
SKU
1096071
Category
Others
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

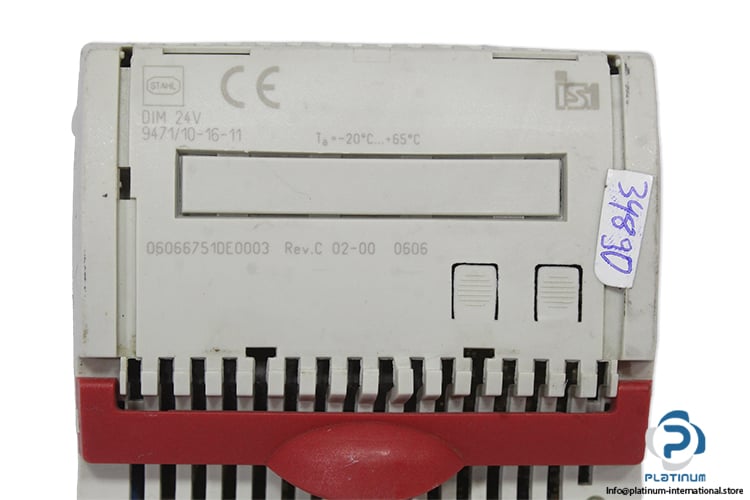

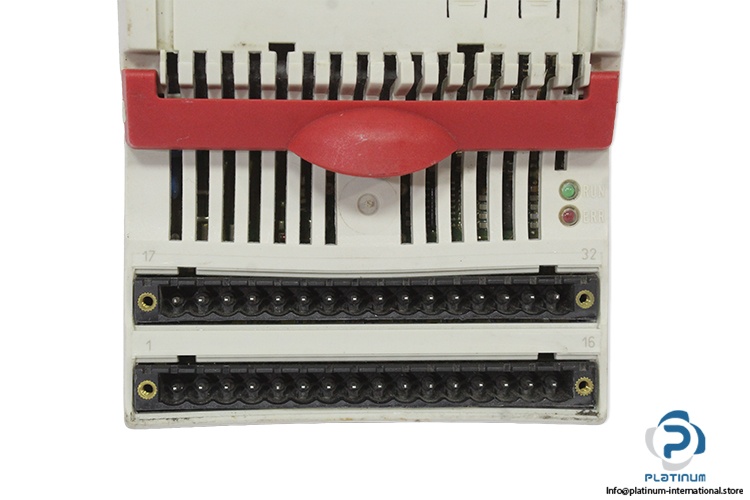

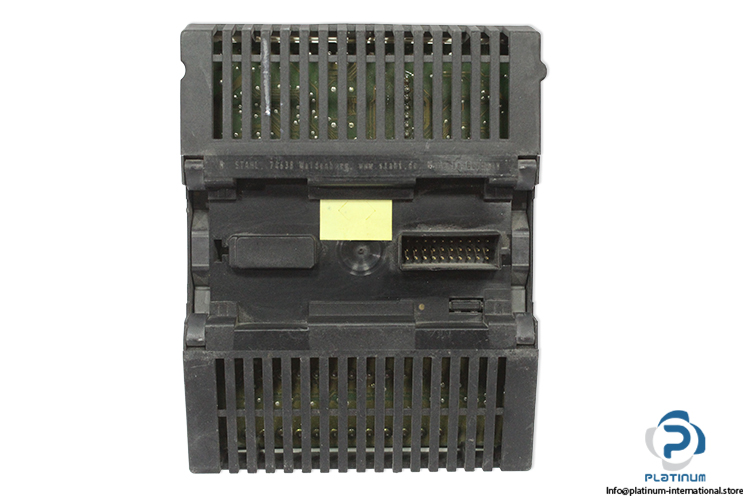

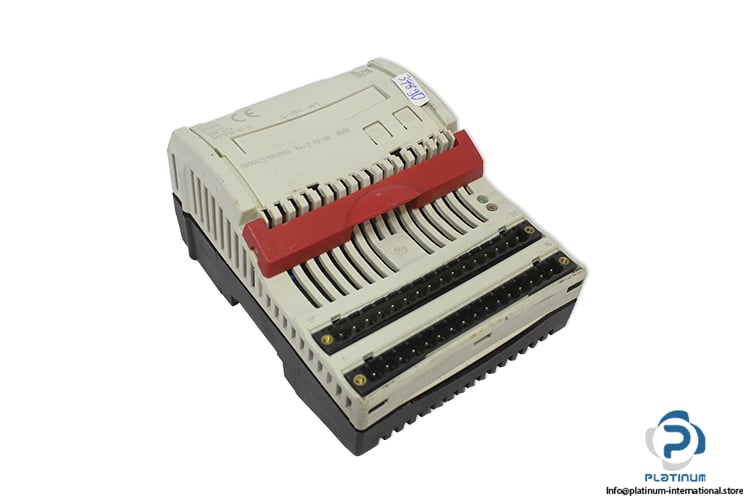

STAHL 9471/10-16-11 Digital Input Module

The STAHL 9471/10-16-11 digital input module is designed for reliable signal acquisition in industrial automation and hazardous environments. Part of the IS1 system series, this module supports multiple voltage measurement inputs, frequency signals, and counter functions, ensuring accurate monitoring and control within process automation systems.

Manufacturer: STAHL

Type: Digital Input Module

Model: DIM 24V

Order No.: 9471/10-16-11

Code: 06066751DE0003

Revision: C 02-00

Series: 9471

System: IS1

Number Of Channels16
Measurement DimensionsVoltage
Min. Voltage For ON13 V
Max. Voltage For OFF5 V
Max. Voltage30 V
Switching ThresholdApprox. 8 ... 10 V
HysteresisApprox. 2 V
Internal ResistanceApprox. 6 kOhm
Min. Pulse Width Of Input SignalChannel 14 And 15 As Digital Input: Approx. 1 ms
Channel 14 And 15 As Frequency Input Or CounterApprox. 2 ms
Max. Switching Frequency20 kHz
Min. Pulse Width25 ms
Frequency Input Measurement Ranges1 Hz ... 1 kHz, 1 Hz ... 20 kHz (Parameterizable For Each Channel)
ResolutionMeasurement Range 1 Hz ... 1 kHz: 0,05 Hz
Measurement Range 1 Hz ... 20 kHz1 Hz
Counter Control SignalStart, Stop, Reset
Counter Range0 ... 65535
Power Supply Max. Power Consumption1,4 W
Max. Power Loss3,8 W
Ambient Temperature-20 ... +65 °C
Explosion ProtectionExplosion Proof
