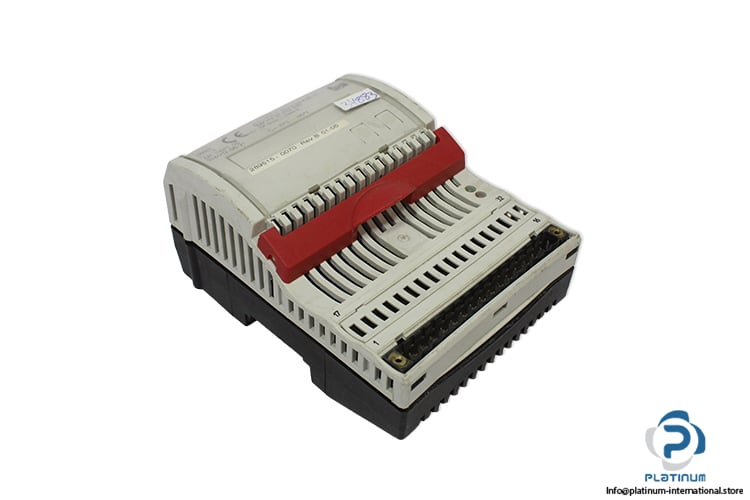

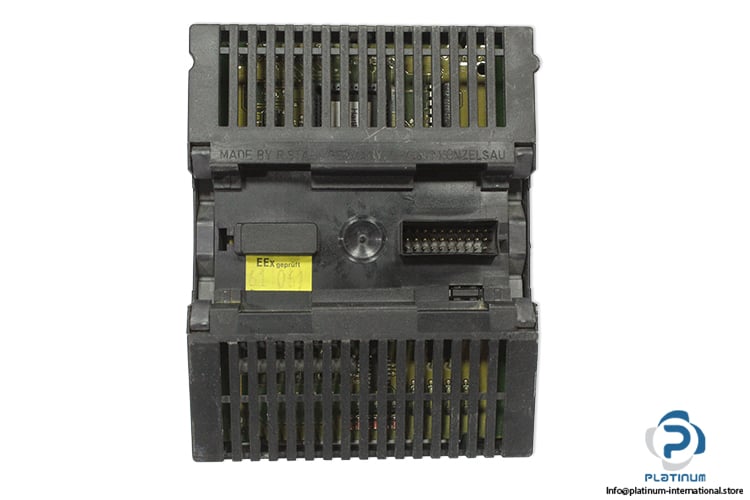

STAHL AIM HART 08 Analog Input Module
The STAHL AIM HART 08 analog input module is designed for use in the IS1 remote I/O system, providing reliable signal acquisition for industrial automation and hazardous area applications. This module supports HART communication and enables precise monitoring of transmitter signals in process control systems.
Manufacturer: STAHL
Type: Analog Input Module
Model: AIM HART 08

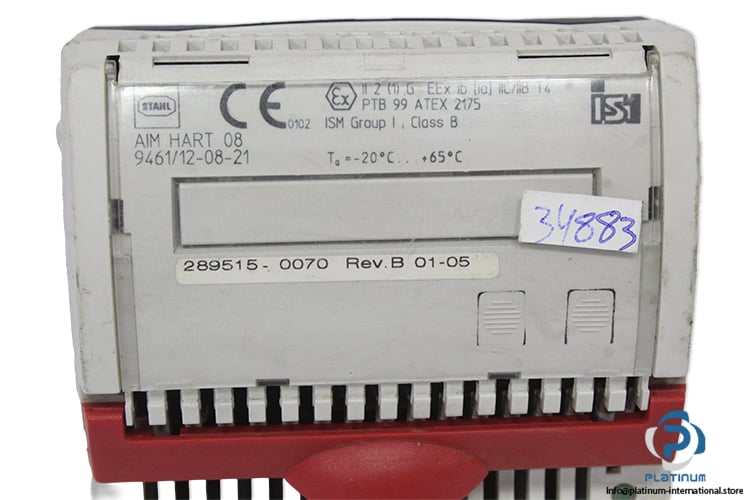

Part No.: 9461/12-08-21
Code: 289515-0070
Revision: B 01-05
Series: 9461
| System | IS1 |
| Number Of Channels | 4 |
| Signal Range | 0 ... 20 mA, 4 ... 20 mA |
| Minimum Signal | 0 mA |
| Maximum Signal | 23.5 mA |
| Supply Voltage | 16.0 V at 20 mA |
| Analog Input Configuration | HART 4 channels for 2-wire HART transmitters and 4 channels for 4-wire HART transmitters |
| 2-Wire Transmitter Maximum Voltage Uo / Voc | 26.2 V |
| Current Io / Isc | 91 mA |
| Maximum Power Po | 591 mW |
| 4-Wire Transmitter Maximum Voltage Uo / Voc | 28 V |
| Maximum Voltage Ui / Vmax | 28 V max. |
| Current Io / Isc | 6 mA max. |
| Current Ii / Imax | 144 mA |
| Maximum Power Po | 42 mW |
| Operator Interface Operation LED | Green "RUN" |
| Fault LED | Red "ERR" |
| Auxiliary Power Maximum Power Consumption | 4.1 W |
| Maximum Power Dissipation | 2.7 W |

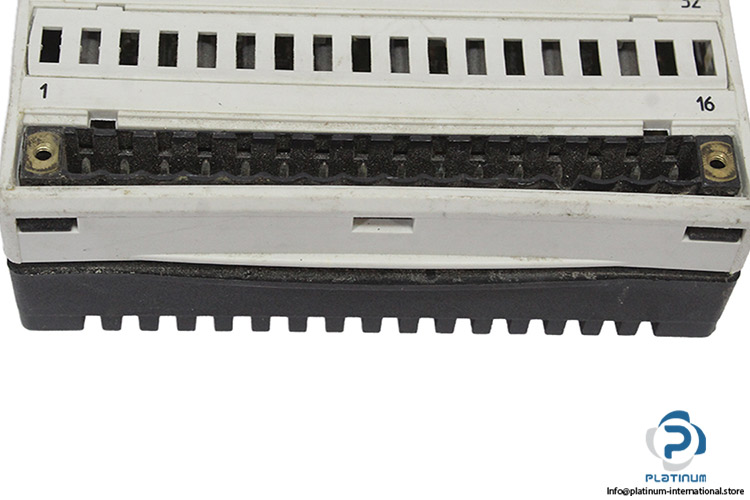

| Electrical Connection | Ex i field signals plug-in terminals, 16-pole with catch, 2.5 mm² / up to 14 AWG, screw or spring type |
| Ambient Temperature | -20 ... +65 °C |
| Module Enclosure | Polyamide 6GF |
| Fire Resistance (UL 94) | V2 |
| Degree Of Protection (IEC 60529) | Modules IP30, Connections IP20 |
| Mounting Type | On 35 mm DIN Rail NS 35/15 |
| Mounting Orientation | Horizontal and Vertical |
| Explosion Protection | Explosion Proof |
