Star 1622-114-10 Ball Runner Block SNS
New
In stock1 unitReady to ship
45,00$
BALL RUNNER BLOCK
Rexroth Star R162211410 SNS ball runner block, size 15 mm, carbon steel, dynamic load 7800 N, static load 13500 N, with 5 m/s speed and 500 m/s² acceleration capacity.13500N157800NBallBlockCarbonDynamicGuideLinearLoadmmMotionR162211410RexrothRunnerSlimlineSNSStarStaticSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

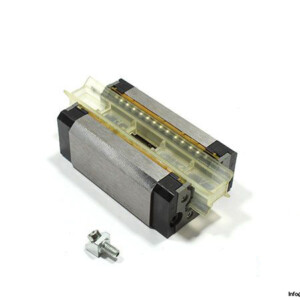

Rexroth Star R162211410 Ball Runner Block SNS
The Rexroth Star R162211410 is a precision-engineered ball runner block designed for linear motion applications. Featuring the Slimline Normal Standard Height (SNS) design, it offers high load capacity, robust carbon steel construction, and smooth operation under demanding conditions.
Manufacturer: Rexroth Star
Type: Ball Runner Block SNS
MNR: R162211410

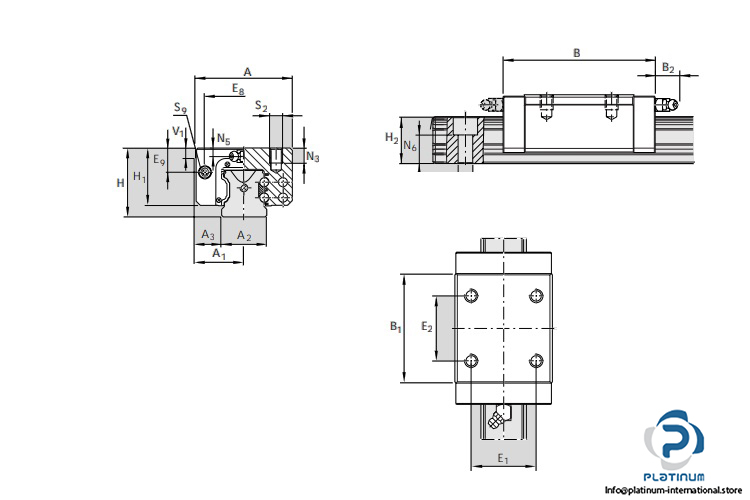

| Size | 15 mm |
| Width (A) | 34 mm |
| Length (B) | 54 mm |
| Height of System (H) | 24 mm |
| Height of Block (H1) | 19.8 mm |
| E1 | 26 mm |
| E2 | 26 mm |
| Mechanical Format | KWC |
| Design | SNS “ Slimline, Normal, Standard Height |
| Material (Profiled Rail Systems) | Carbon steel |
| Maximum Acceleration (amax) | 500 m/s² |
| Maximum Permissible Speed (vmax) | 5 m/s |
| Dynamic Load Capacity (C) | 7800 N |
| Static Load Capacity (C0) | 13500 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 74 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 40 Nm |
| Accuracy Class | N “ Normal |
| Preload Class | C1 |
| Admissible Operating Temperature | -10 °C / +80 °C |
