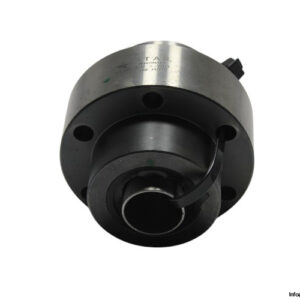

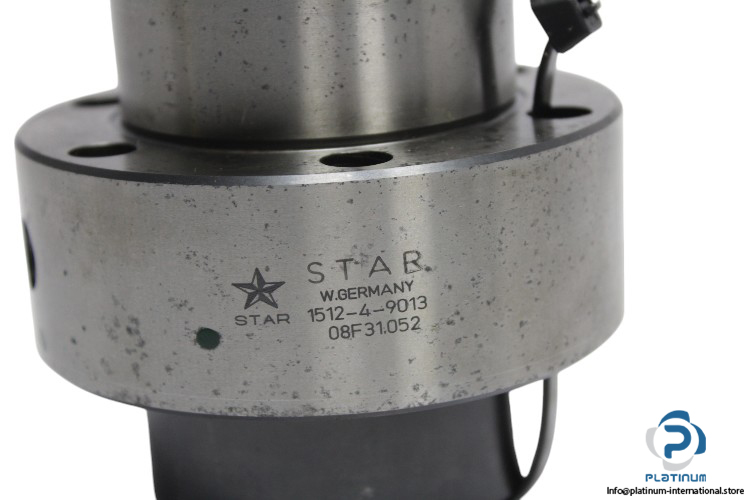

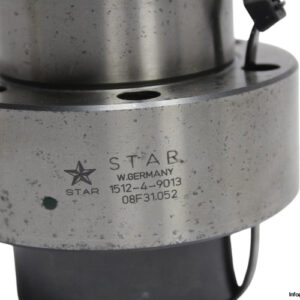

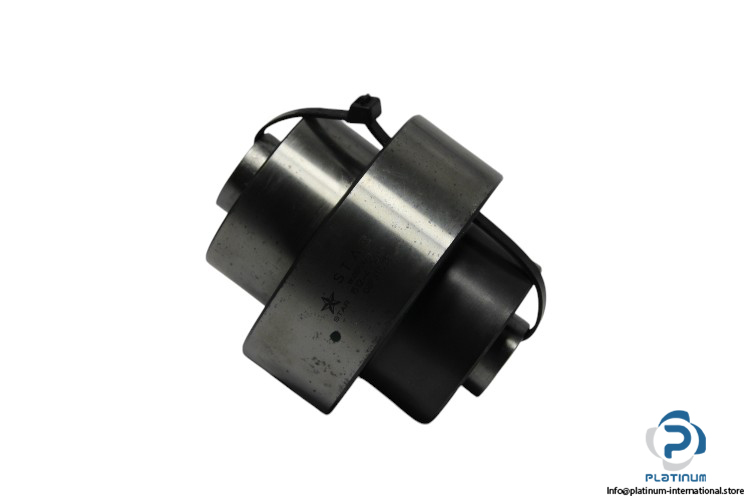

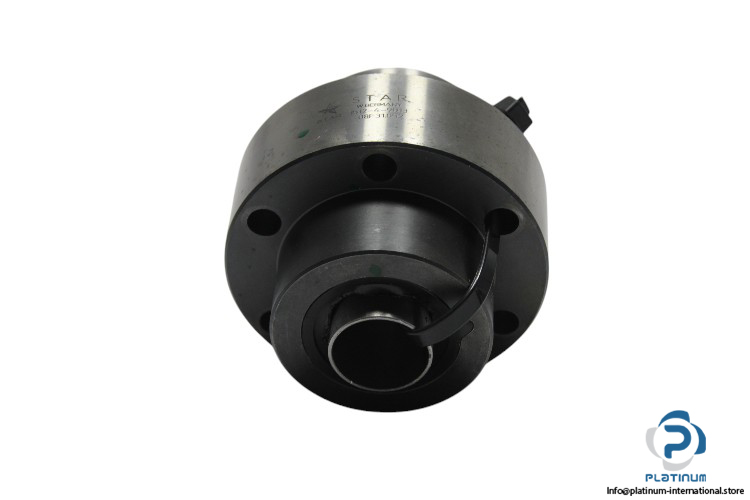

Star Rexroth 1512-4-9013 Ball Screw
New
In stock1 unitReady to ship
499,99$
Flange Nut Ball Screw
The Star Rexroth R151249013 features a 40 mm nominal diameter and 40 mm lead with a FEM-E-S flange nut design. Built for high-precision linear motion systems with 25,500 N dynamic load and up to 150 m/min linear speed.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Star Rexroth R151249013 Flange Nut Ball Screw (FEM-E-S)
The Star Rexroth R151249013 is a high-precision Flange Nut Ball Screw with a single nut design (FEM-E-S) and integrated flange, engineered for high-speed linear motion systems. This ball screw is ideal for applications requiring high load capacity, efficiency, and accuracy in positioning and movement.
Manufacturer: Star Rexroth
Type: Flange Nut Ball Screw (Single Nut with Flange FEM-E-S)
MNR: R151249013
| Size | 40 x 40 R |
| Nominal Diameter (dN) | 40 mm |
| Lead (P) | 40 mm |
| Ball Diameter | 6 mm |

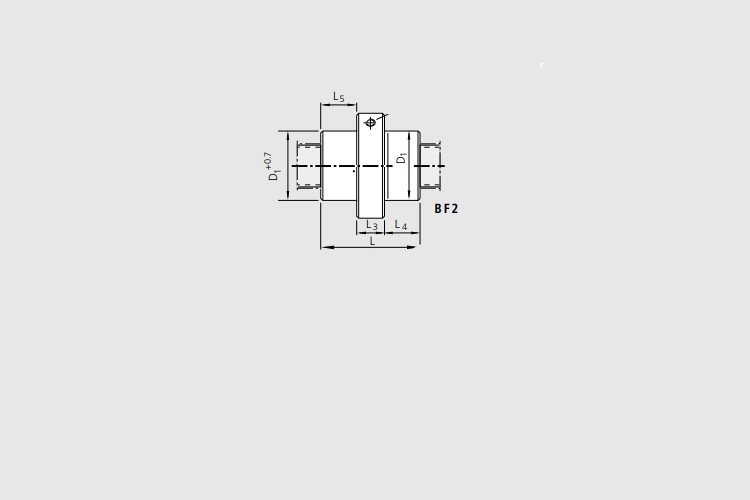

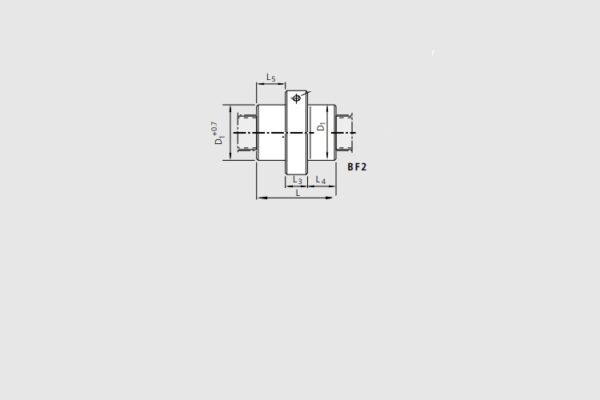

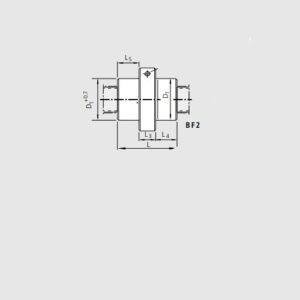

| Flange Diameter | 110 mm |
| Nut Outer Diameter | 72 mm |
| Nut Length | 102 mm |
| Flange Thickness | 40 mm |
| Number of Ball Track Turns | 2 |
| Direction of Lead | Right-Hand Thread |
| Lube Port Machining | M8X1 |
| Hole Pattern | BB4 |
| Dynamic Load Rating | 25,500 N |
| Static Load Rating | 40,300 N |
| Linear Speed | 150 m/min |
