Rexroth Star 1622-314-10 Ball Runner Block

Available on request

99,99$

BALL RUNNER BLOCK

Rexroth Star R162231410 Ball Runner Block SNS, size 35 mm, slimline standard height design with 41,900 N dynamic load capacity, 54,000 N static load, 5 m/s speed, and C1 low preload.

Manufacturer
REXROTH STAR
SKU
1057141
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

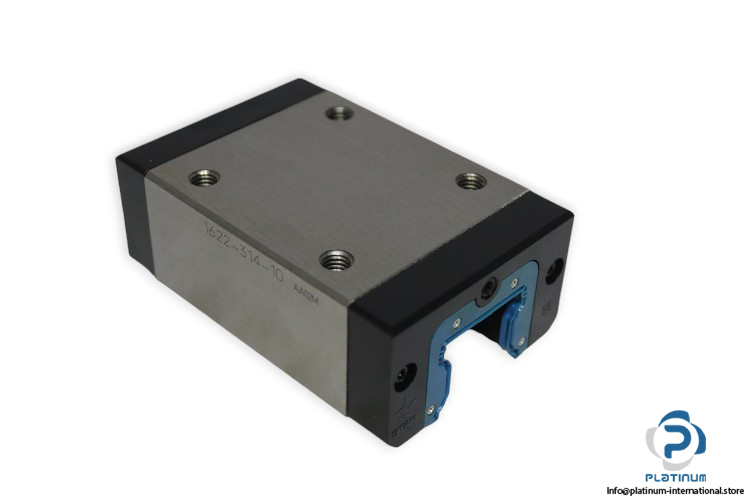

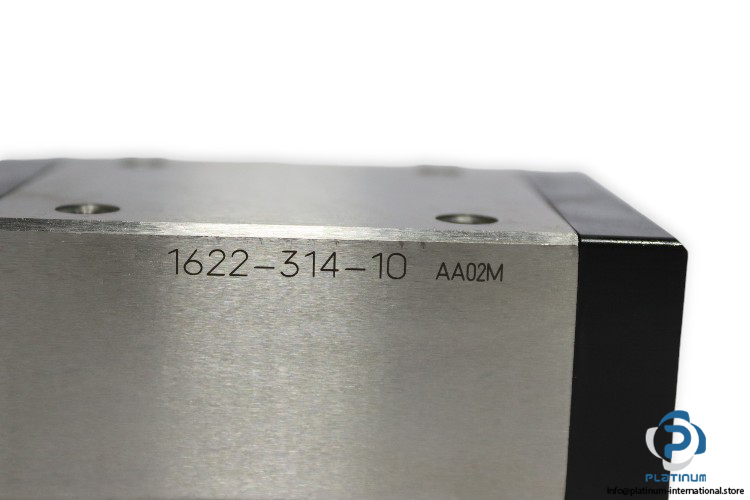

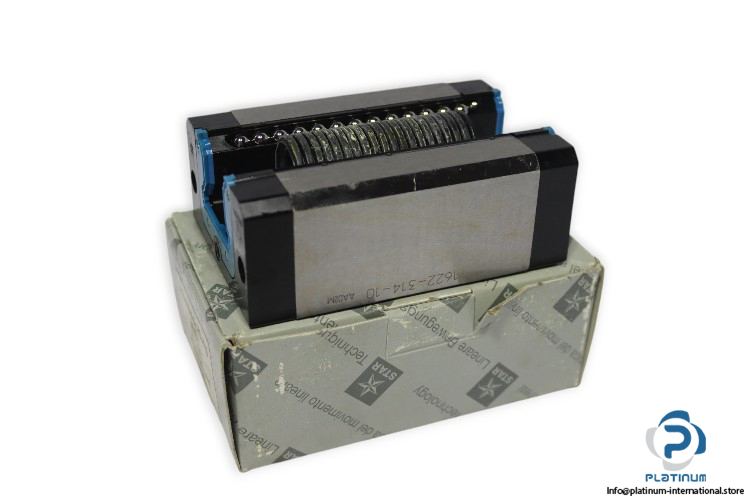

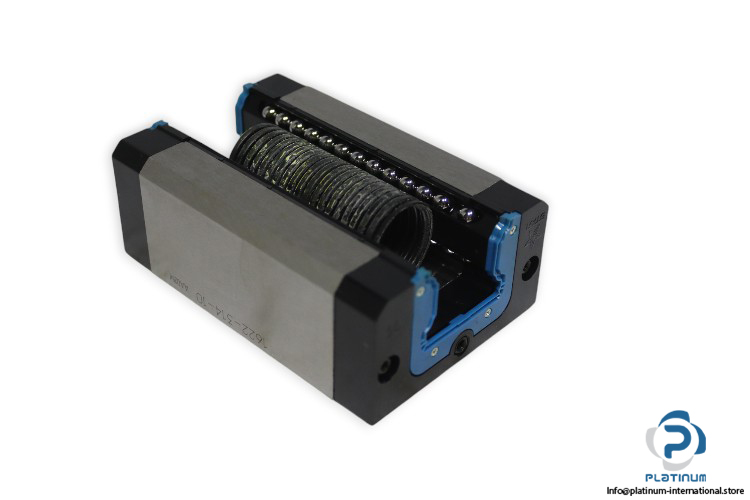

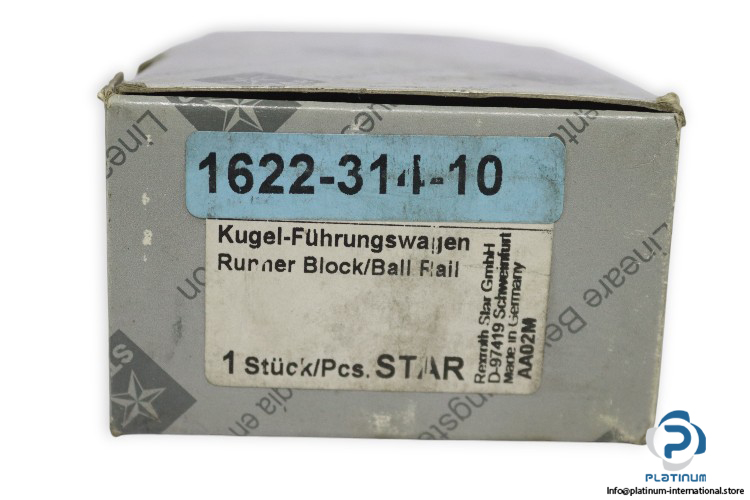

Rexroth Star R162231410 Ball Runner Block SNS

The Rexroth Star R162231410 Ball Runner Block SNS is a slimline, standard-height linear motion component engineered for high load capacities and precision guidance. With excellent dynamic and static performance, it is ideal for demanding automation and industrial applications.

Manufacturer: Rexroth Star

Type: Ball Runner Block SNS

MNR: R162231410

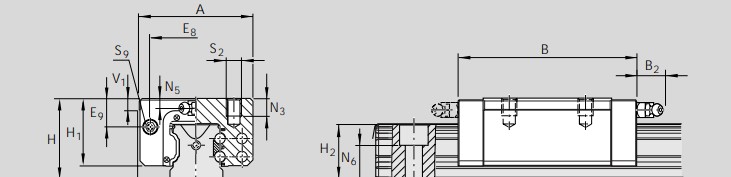

Size35 mm
Width (A)70 mm
Length (B)105 mm
Height of Runner Block40 mm
Height with Guide Rail48 mm
E150 mm
E250 mm
DesignSNS “ Slimline, Normal, Standard Height
Dynamic Load Capacity (C)41,900 N
Static Load Capacity (C0)54,000 N
Max. Acceleration (a max)500 m/s²
Max. Linear Speed (v max)5 m/s
Dynamic Torsional Moment Load Capacity (Mt)890 Nm
Static Torsional Moment Load Capacity (Mt0)1,160 Nm
Dynamic Longitudinal Moment Load Capacity (ML)440 Nm
Static Longitudinal Moment Load Capacity (ML0)565 Nm
Accuracy ClassN “ Normal
Preload ClassC1 “ Low Preload
