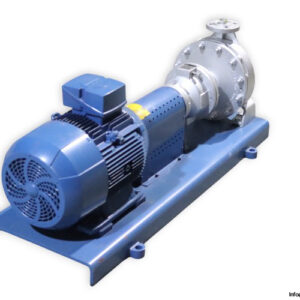

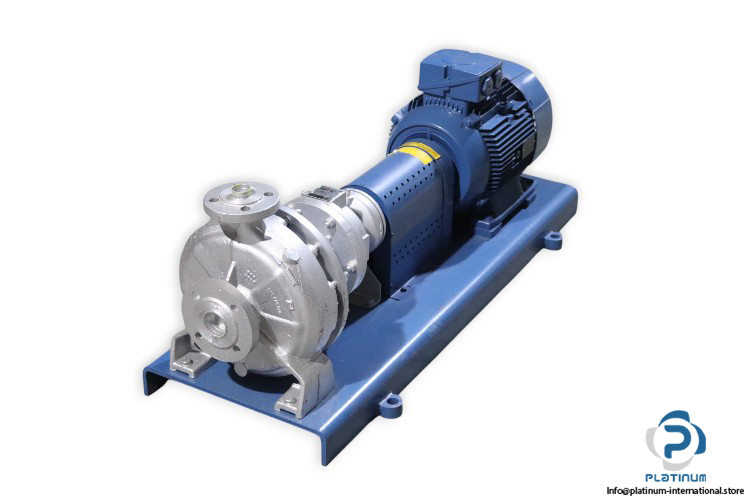

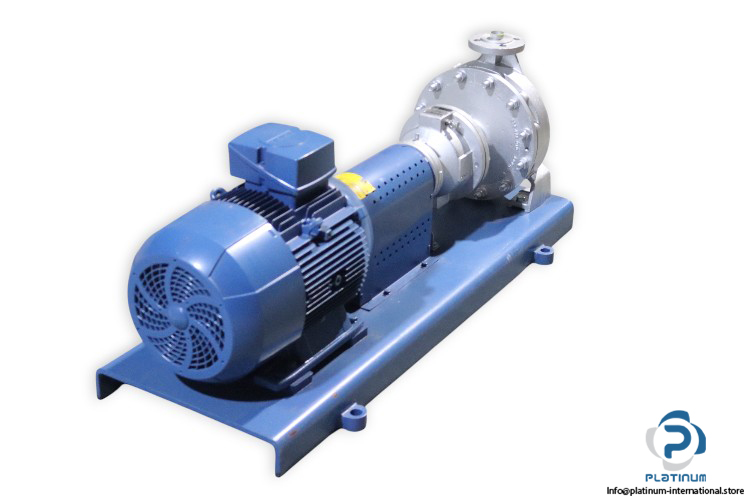

Sterling Zdnd 032250 Volute Pump
New
In stock4 unitsReady to ship
4 999,99$
Volute Pump Sterling SIHI industrial volute pump supplied with a Siemens motor, designed for reliable fluid transfer, high efficiency, and continuous-duty industrial pumping applications.
0322501B1LE10021DA234A02600AAAF3FluidGasketGraphiteHeavy-DutyIndustrialm³/hMechanicalmotorPN25pumpS1409286-01SealSiemensSihiSterlingvoluteZdnd
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

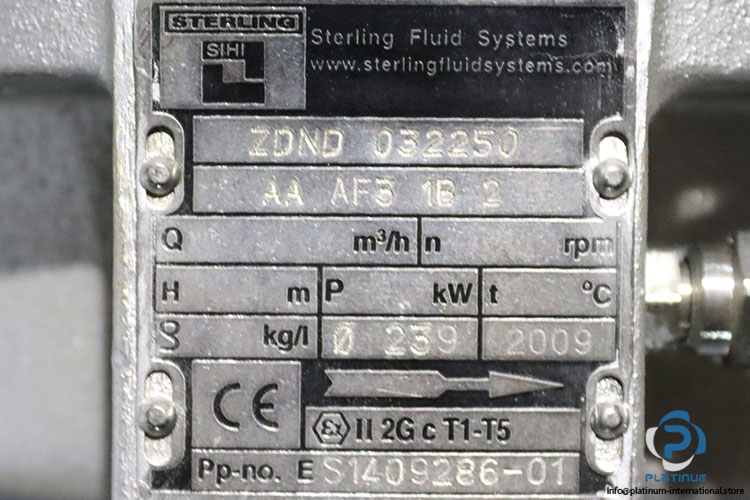

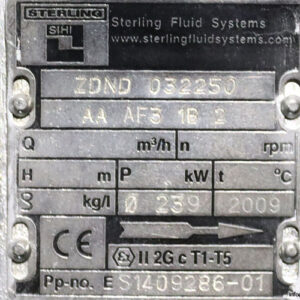

| Part No. | AA AF3 1B 2 |
| Pp-no | S1409286-01 |
| Code | 239 |
| Bearing Bracket | Bracket 35 |
| Casing Pressure | PN 25 |
| Speed | 3000 rpm |
| Medium Temperature | max. 207 °C |
| Delivery Head | max. 90 m |
| Shaft Sealing | AF3, Balanced standard mechanical seal SiC/Carbon/EPDM |
| Casing Gasket | Confined flat gasket of graphite with A4 insertion |
| Sense of Rotation | Clockwise, when looking at the pump from the drive end |

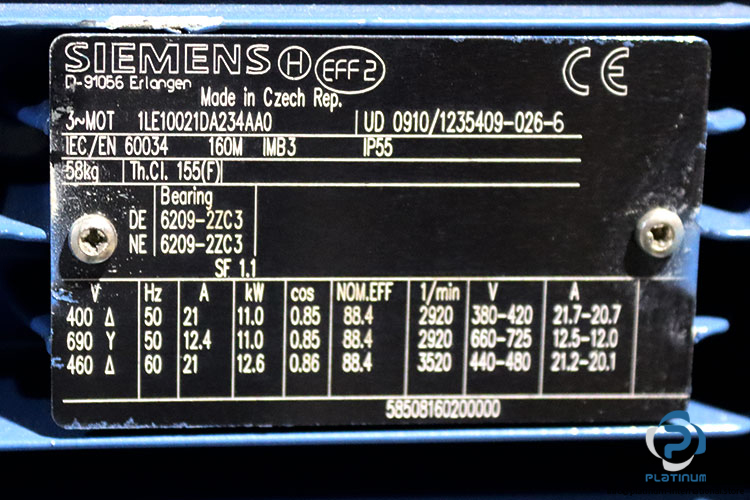

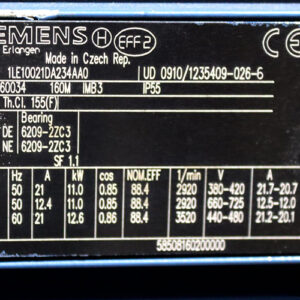

| Attachment | Siemens 1LE10021DA234A0 Motor |
| Part No.Motor | UD 0910/1235409-026-6, 58508160200000 |
| Frame Size | 160M |
| Voltage at 50 Hz | 400 V/690 V, Current: 21/12.4 A, Power: 11 kW, cos 0.85, Speed: 2920 rpm |
| Rated Value 50 Hz | 380“420 V, 21.7“20.7 A / 660“725 V, 12.5“12 A |
| Voltage at 60 Hz | 460 V, Current: 21 A, Power: 12.6 kW, cos φ = 0.86, Speed: 3520 rpm |
| Rated Value 60 Hz | 440“480 V, 21.2“20.1 A |
| Mounting | IMB3 |
| Thermal Class | F |
| IP Rate | 55 |
| Service Factor | 1.1 |
| Bearing | DE 6209-2ZC3 / NE 6209-2ZC3 |
| Nominal Efficiency | 88.4% |
| FLOW /HAED | 15m³/h FLOW @ 90M HEAD |
| Condition | New |
| SKU | 1087007 |
| Weight | 222 |
