Sterling Zdnd 040250 Volute Pump
New
In stock2 unitsReady to ship
5 999,99$

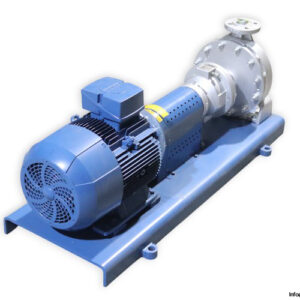

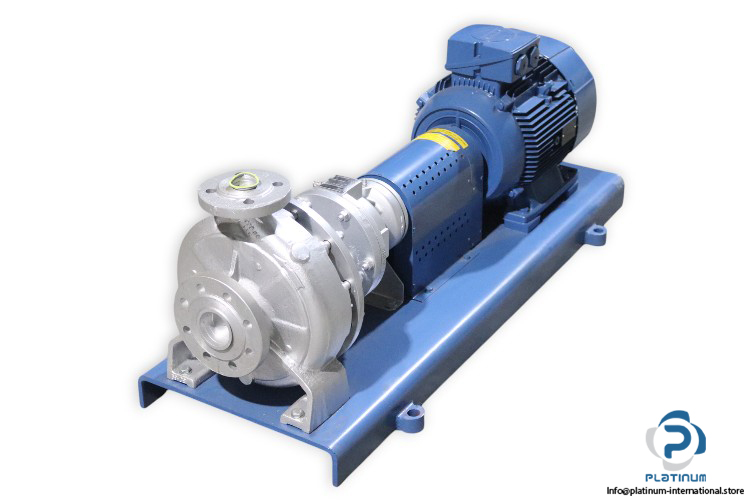

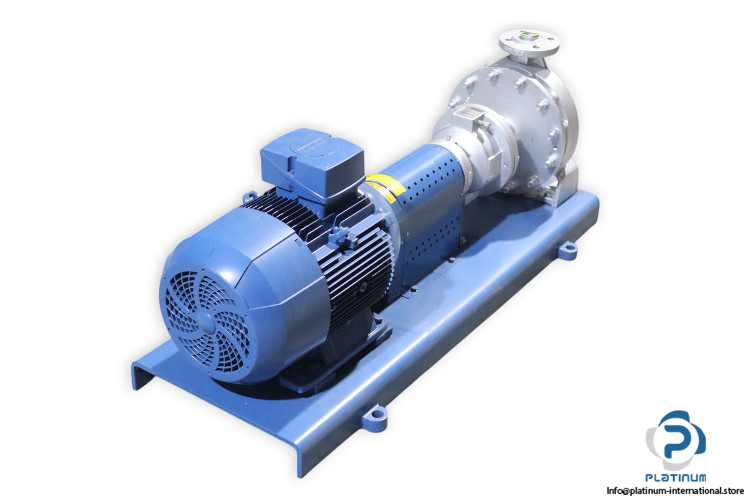

Volute Pump Sterling SIHI industrial volute pump supplied with a Siemens motor, designed for reliable fluid transfer, high efficiency, and continuous-duty industrial pumping applications.
0402501B1LE10021DA334AA022551409285-0160090AAAF3DeliveryHighIndustrialMm³/hmotorpnpumpSiemensSihiSterlingTemperaturevoluteZdnd
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

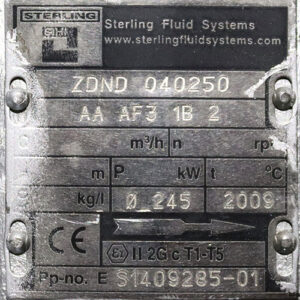

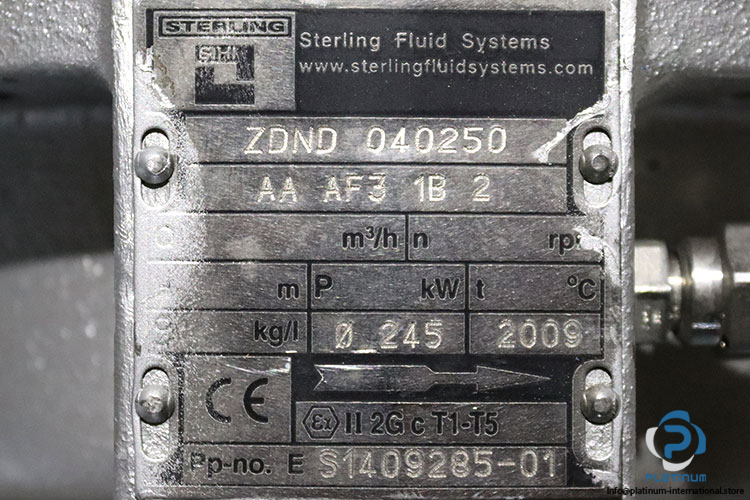

| Part No. | AA AF3 1B 2 |
| Pp-no | 51409285-01 |
| Code | 245 |
| Bearing Bracket | Bracket 35 |
| Output | max. 600 m³/h |
| Casing Pressure | PN 25 |
| Speed | 3000 rpm |
| Medium Temperature | max. 207 °C |
| Delivery Head | max. 90 m |
| Shaft Sealing | AF3, Balanced standard mechanical seal SiC/Carbon/EPDM |
| Casing Gasket | Confined flat gasket of graphite with A4 insertion |
| Sense of Rotation | Clockwise, viewed from drive end |

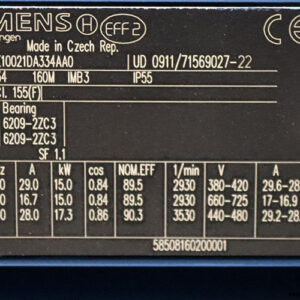

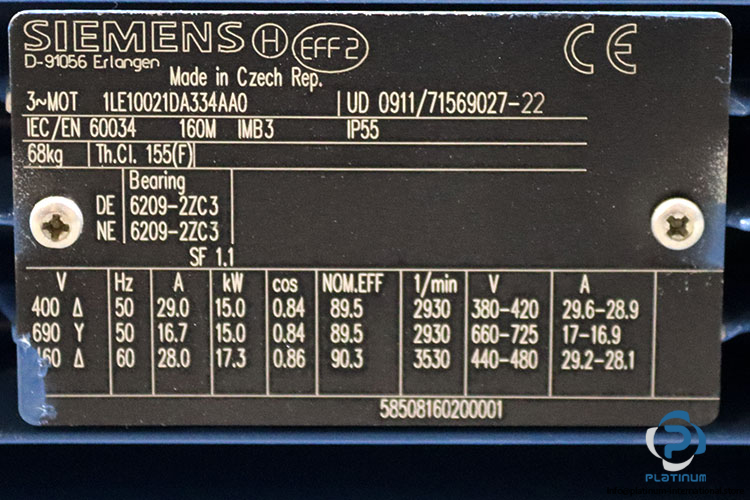

| Attachment | Siemens 1LE10021DA334AA0 Motor |
| Part No.Motor | UD 0911/71569027-22, 58508160200001 |
| Frame Size | 160M |
| Voltage at 50 Hz | 400 V / 690 V |
| Current at 50 Hz | 29 / 16.7 A |
| Power at 50 Hz | 15 kW |
| Power Factorat 50 Hz | cos φ = 0.84 |
| Speed at 50 Hz | 2930 rpm |
| Rated Value | 380“420 V, 29.6“28.9 A / 660“725 V, 17“16.9 A |
| Voltage at 60 Hz | 460 V |
| Current at 60 Hz | 28 A |
| Power at 60 Hz | 17.3 kW |
| Power Factor at 60 Hz | cos φ = 0.86 |
| Speed at 60 Hz | 3530 rpm |
| Rated Value at 60 Hz | 440“480 V, 29.2“28.1 A |
| Mounting | IMB3 |
| Thermal Class | F |
| IP Rate | 55 |
| Service Factor | 1.1 |
| Bearing | DE, 6209-2ZC3 / NE, 6209-2ZC3 |
| Nominal Efficiency | 89.5 / 90.3 % |
| FLOW /HAED | 30m³/h FLOW @ 90M HEAD |
| Condition | New |
| SKU | 1087008 |
| Weight | 234 |
