Stieber NSS 20AV/H6 Freewheel Clutch Bearing
Used
In stock3 unitsReady to ship
Freewheel Clutch Bearing
Stieber NSS20AV/H6 freewheel clutch bearing with sealed, grease-lubricated design, strong spring configuration, and controlled overrunning speeds.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

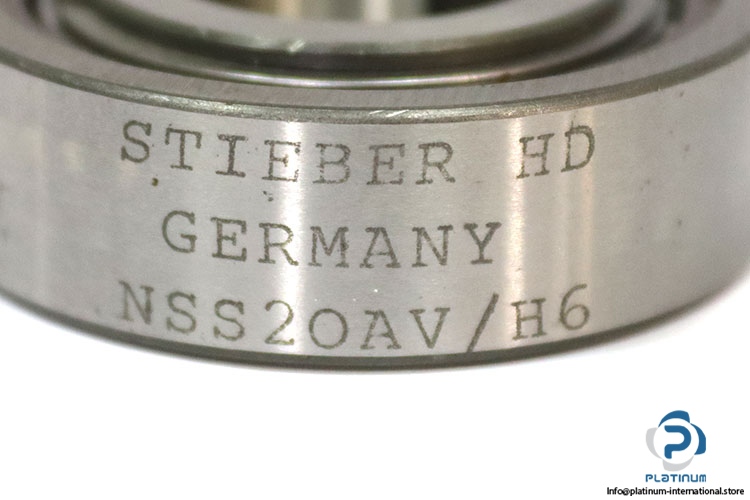

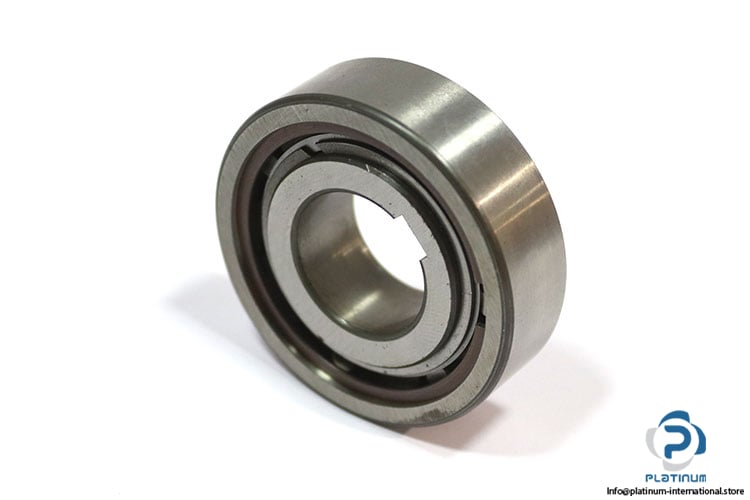

Stieber NSS20AV/H6 Freewheel Clutch Bearing
The Stieber NSS20AV/H6 is a precision freewheel clutch bearing designed for reliable torque transmission and controlled overrunning operation in industrial mechanical systems.
Manufacturer: Stieber
Type: Freewheel Clutch Bearing
Model: NSS20AV/H6
| Size | 20 |
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width (L) | 14 mm |
| e | 0.8 mm |
| S | 2.4 mm |
| Maximum Overrunning Speed (Inner Race) | 2200 rpm |
| Maximum Overrunning Speed (Outer Race) | 3300 rpm |
| Drag Torque | 1.4 N·cm |
| Suffix “ A (Type A) | Self-contained unit, grease-lubricated and sealed |
| Suffix “ V | Equipped with stronger springs |
| Suffix “ H6 | ISO shaft tolerance standard |
