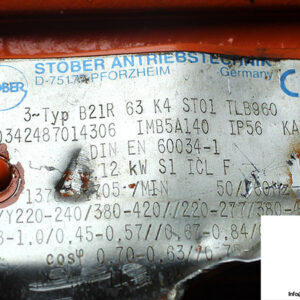

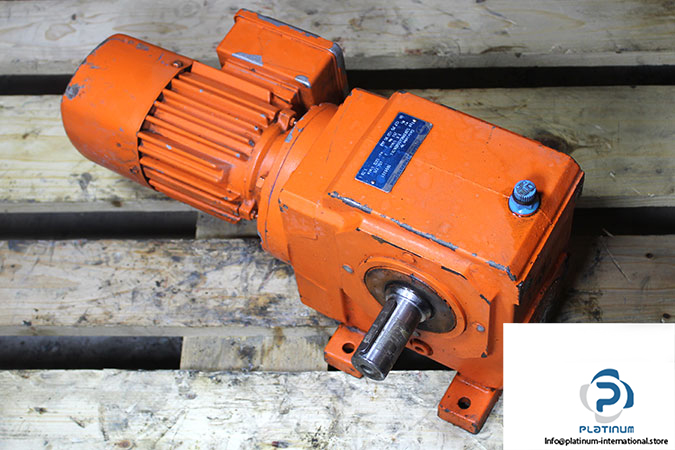

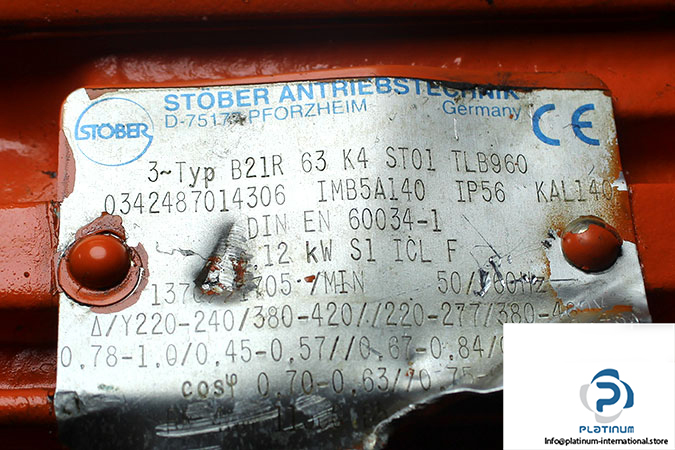

Stober B21R 63 K4 ST01 TLB960 Gearmotor

Manufacturer: Stober
Type: Gear Motors
Model: B21R63K4ST01TLB960

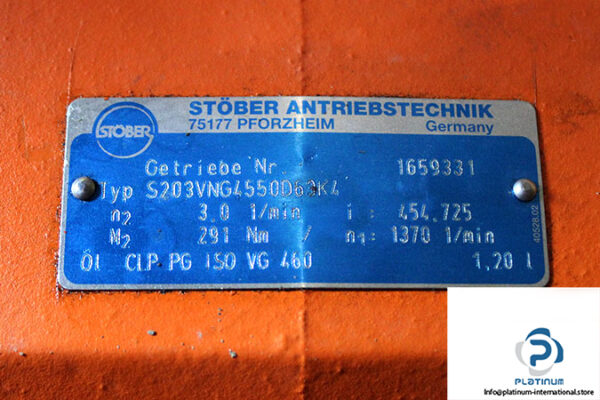

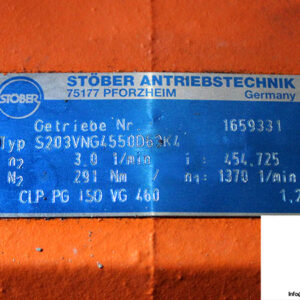

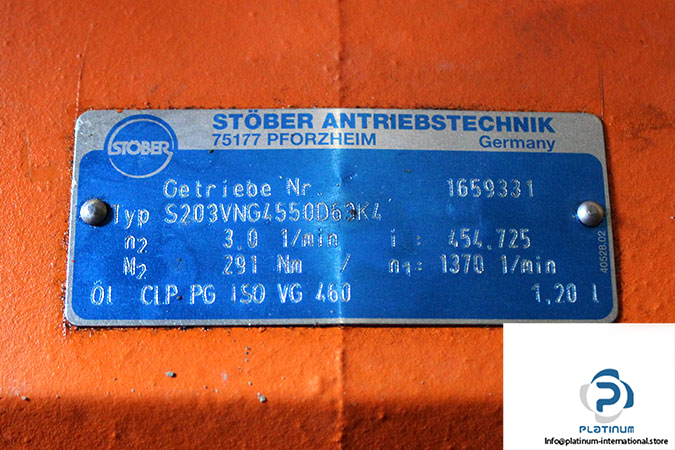

Model Gear: S203VNG4550D63K4

Speed [r/min]: 1370/1705
Output Speed [r/min]: 3.0
Ratio [i]: 454.725
Output Torque [Nm]: 291
Motor Power [kW]: 0.12
Motor Frequency [Hz]: 50/60
Motor Voltage at 50Hz [V]: 220-240/380-420 Delta/Star
Motor Voltage at 60Hz [V]: 220-277/380-460 Delta/Star
Nominal Current at 50Hz [A]: 0.78-1.0/0.45-0.57
Nominal Current at 60Hz [A]: 0.67-0.84
Cos Phi: 0,70-0.63/0.75
Thermal Class: B
Enclosure [IP]: 56
Weight [kg]: 30,2
