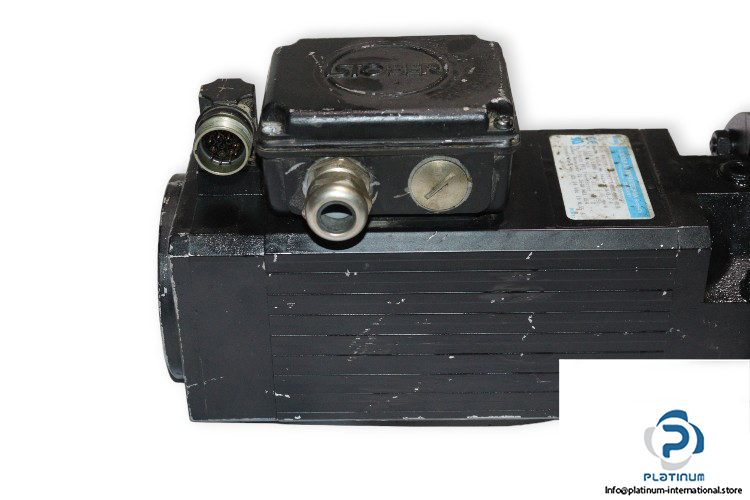

Stober ES44 446339/1339373/000/000-010 AC Servo Motor

Manufacturer: Stober
Type: AC Servo Motors

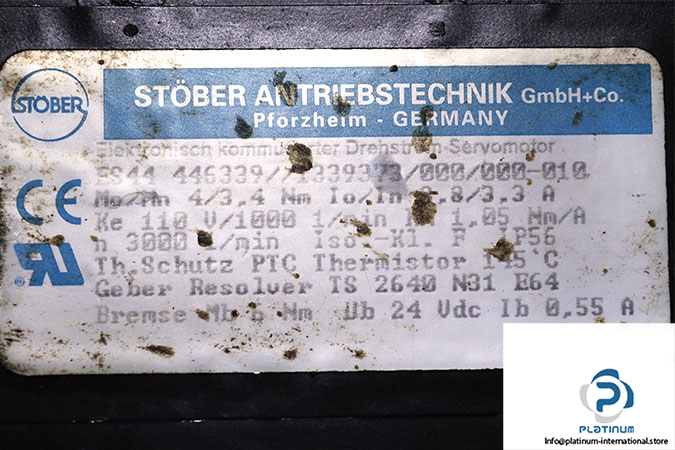

Model: ES44 446339/1339373/000/000-010

Rated Torque [Nm]: 3.4
Stall Torque [Nm]: 4.0
Stall Current [A]: 3.8
Rated Current [A]: 3.3
Rated Speed [rpm]: 3000
Constant Voltage [V/krpm]: 110
Constant Torque [Nm/A]: 1.05
Brake Torque [Nm]: 6
Brake Voltage [Vdc]: 24
Brake Current [A]: 0.55
Insulation Class: F
Protection Class [IP]: 65

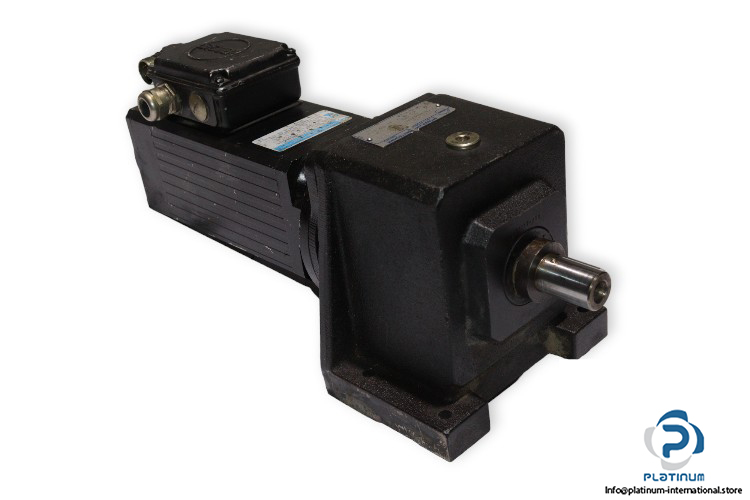

Attachment: Stober C102N0093ES44 Gearbox
Manufacturer: Stober
Type: Gear Box

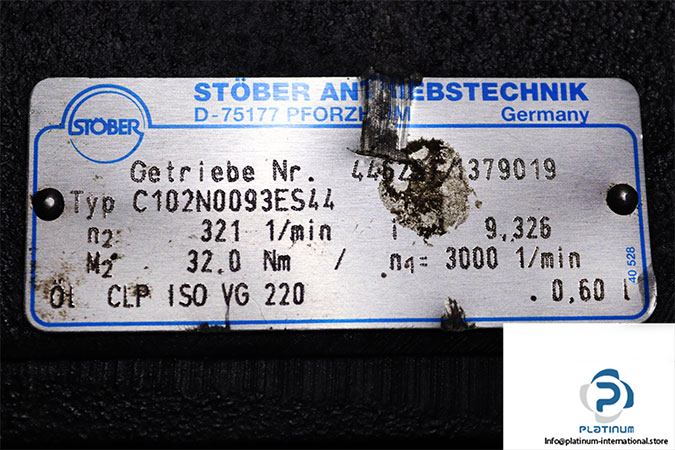

Model: C102N0093ES44
Ratio [i]: 9.326
Input Speed [rpm]: 3000
Output Speed [rpm]: 321
Output Torque [Nm]: 32.0
Lubrication: CLP IOS VG 220
Quantity [L]: 0.6
