Sunon DP200A Axial FAN
Used
In stock1 unitReady to ship
Axial Fan
Sunon DP200A Axial Fan features a 119x119x38 mm square frame and 5 blades, offering up to 198.64 m3/h flow rate and 0.39 inch-H20 static pressure, designed for high-efficiency air circulation in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

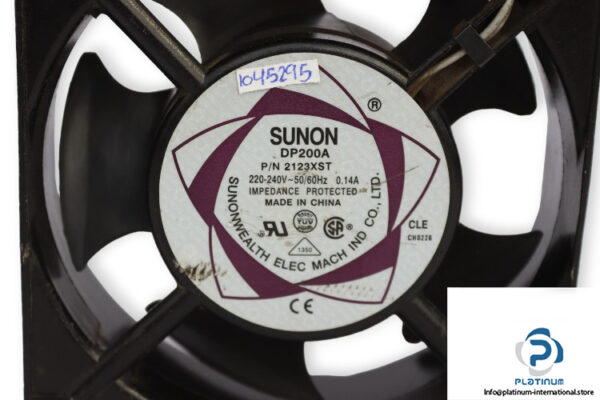

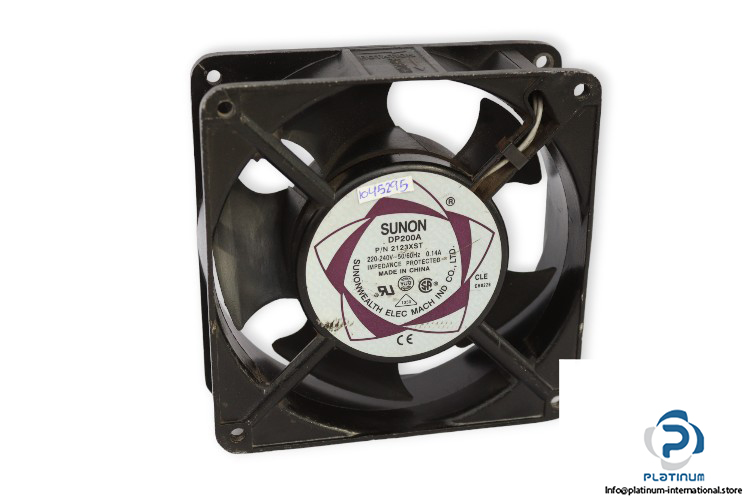

Sunon DP200A Axial Fan
The Sunon DP200A Axial Fan is a high-performance fan designed for effective air circulation in industrial systems. With a square frame and 5 blades, it provides reliable airflow at various speeds and power ratings for optimal cooling.
Manufacturer: Sunon
Model: DP200A
Type: Axial Fan
Part No.: 2123XBL.GN
| Frame Shape | Square Frame |
| No. of Blades | 5 |

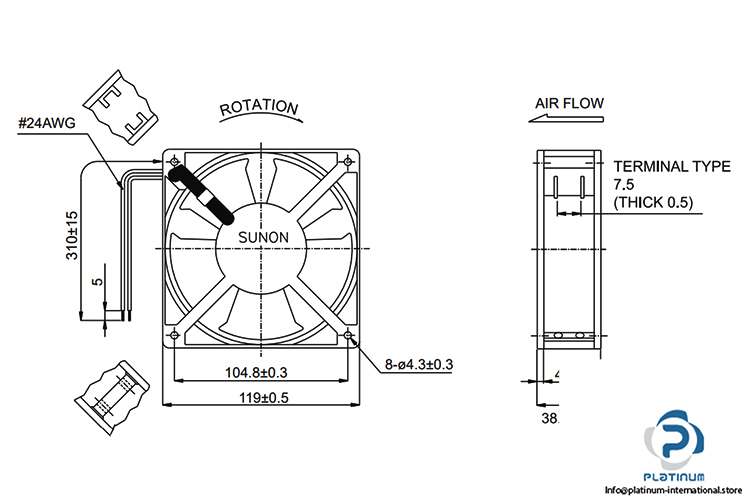

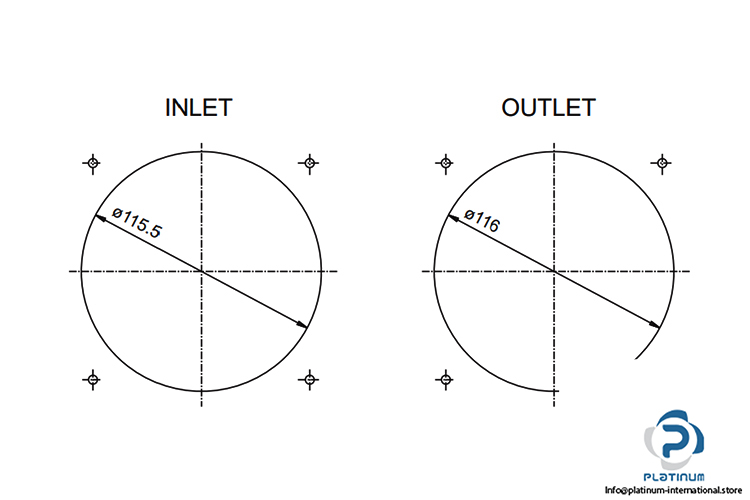

| Dimensions (mm) | 119x119x38 |
| Direction | Push |
| Bearing | VAPO |
| Voltages (V AC) | 220 to 240 |
| Power Rating (W) | 22/21 |
| Speed (rpm) | 2850/3150 |
| Flow Rate (m3/h) | 164.69/198.64 |
| Flow Rate (CFM) | 97/117 |
| Current (A) | 0.14/0.12 |
| Frequency (Hz) | 50/60 |
| Inverter | Without Inverter |
| Number of Wires | 2 |
| Blade Material / Fan Housing Material | Plastic / Metal |

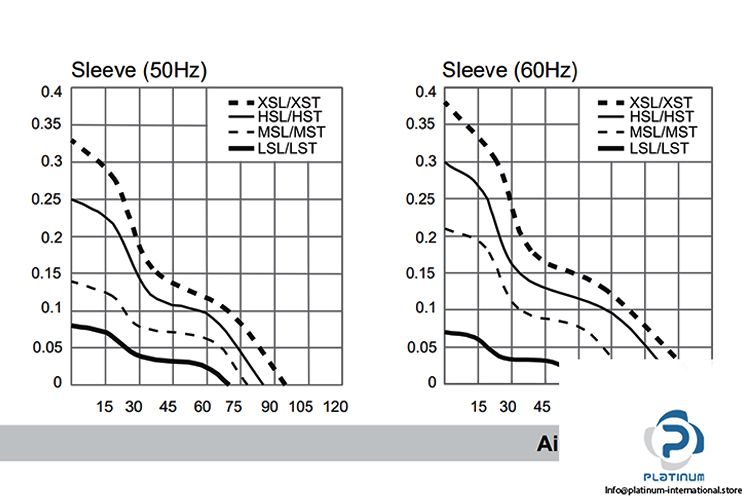

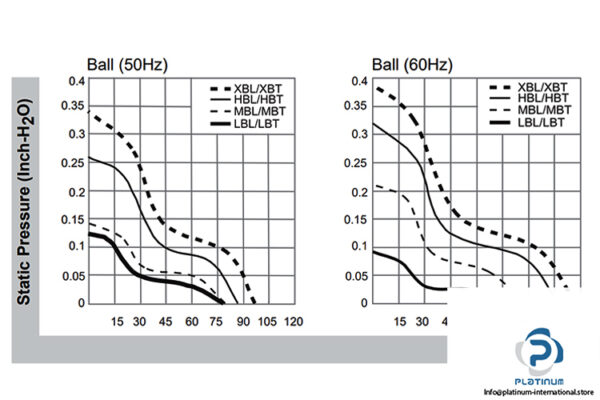

| Static Pressure (inch-H20) | 0.34/0.39 |
